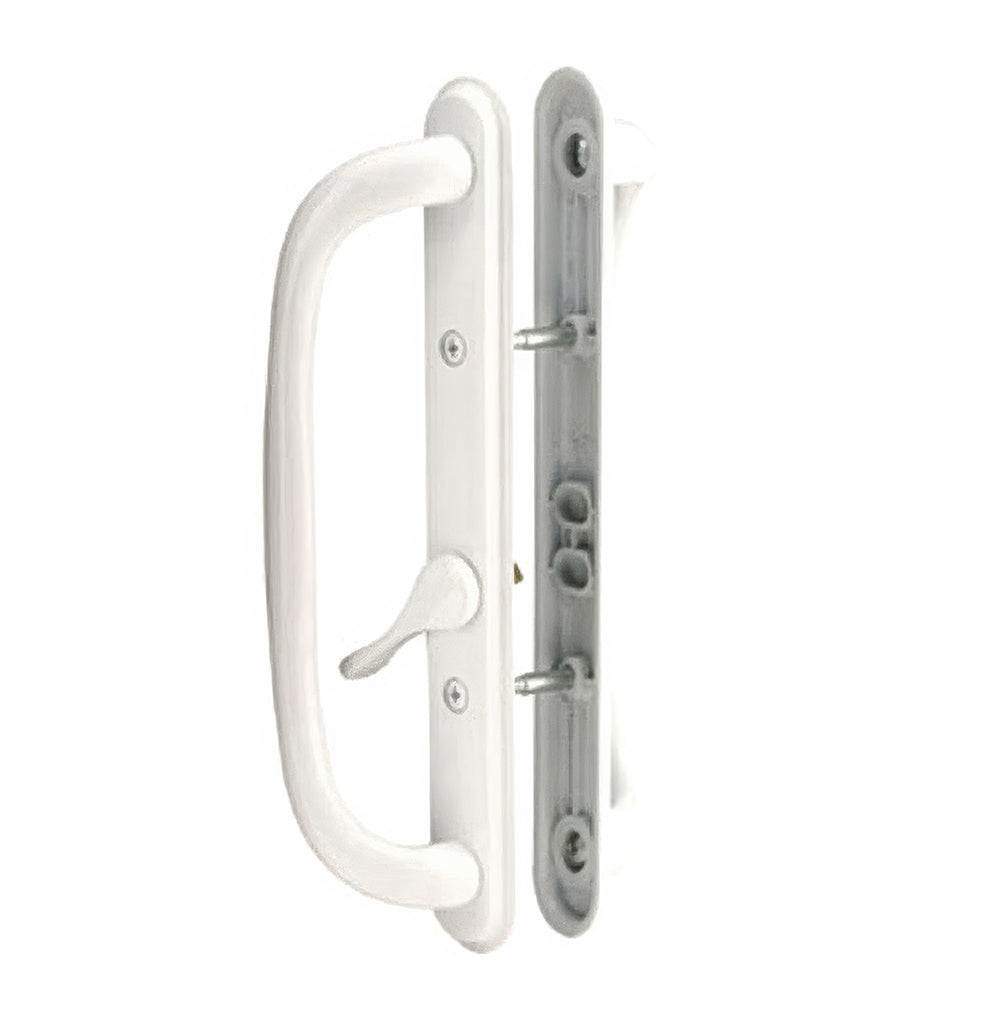

Olympus 14291-125 Door Handle Set 1-1/4" to 1-1/2"

Olympus 14291-125 Door Handle Set for 1-1/4" to 1-1/2" Panel Thickness

This Olympus handle set is designed for wood, vinyl, and metal doors with panel thicknesses between 1-1/4" (31.8mm) and 1-1/2" (38.1mm). It works with single, double, or multipoint mortise-style lock systems.

The escutcheon plate uses a 3-15/16" (100.0mm) center-to-center screw hole pattern and is compatible with both 3-hole and 4-hole fabrication patterns. The thumb turn is offset rather than centered.

The set is non-handed, so it fits both left-hand and right-hand doors. Zinc die-cast construction provides durability for everyday active, non-keyed door use.

Technical Information

• Original Manufacturer SKU: 14291-125
• Door Panel Thickness: 1-1/4" to 1-1/2" (31.8mm to 38.1mm)

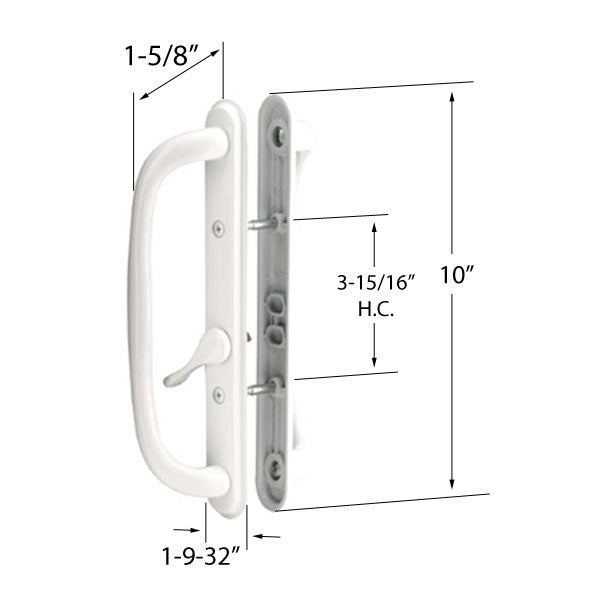

• Escutcheon Plate Height: 10" (254.0mm)
• Escutcheon Plate Width: 1-5/16" (33.3mm)
• Screw Hole Center: 3-15/16" (100.0mm)
• Handing: Non-Handed (fits left or right hand doors)
• Thumb Position: Offset, not centered
• Function: Active, non-keyed
• Latch Style: Hook style handle
• Lock Type: Internal mortise lock style
• Material: Zinc die-cast
• Hole Pattern Compatibility: 3 or 4 hole fabrication

Notes

• Standard finish: White.
• Special order finishes: Almond, Antique Brass, Black, Bronze, Satin Nickel, Polished Brass, Tan.
• Includes inside and outside plates, inside and outside handles, and installation screws.
• Lock is not included and must be ordered separately.

Priced and sold each. Please measure your existing hardware, door panel thickness, and screw hole spacing before ordering to ensure the correct fit.
