Olympus Door Handle For Sliding Glass Doors Keyed Offset Thumb Turn Schlage Key Way

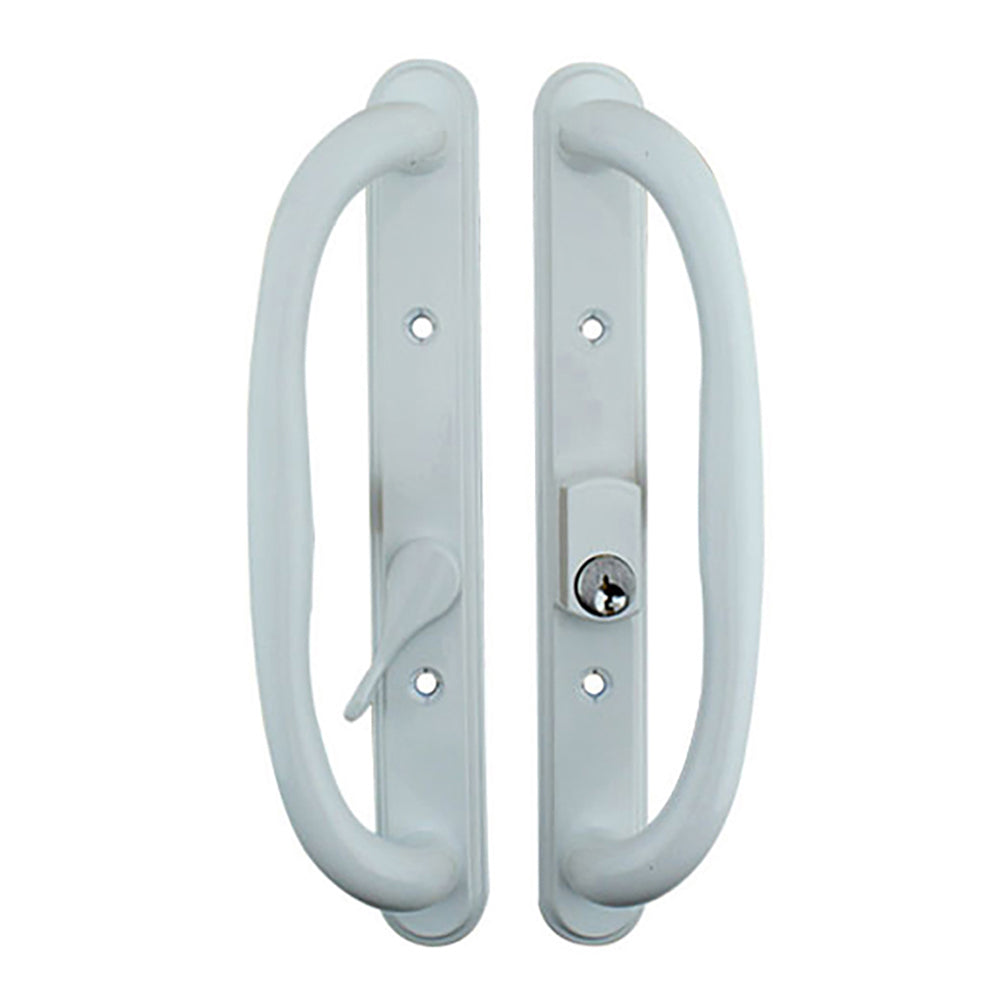

Olympus Door Handle for Sliding Glass Doors, Keyed, Offset Thumb-Turn, Schlage Key Way

Olympus handle set for sliding glass doors with full die-cast construction.
Schlage Keyway 3-15/16" Screw Hole Center

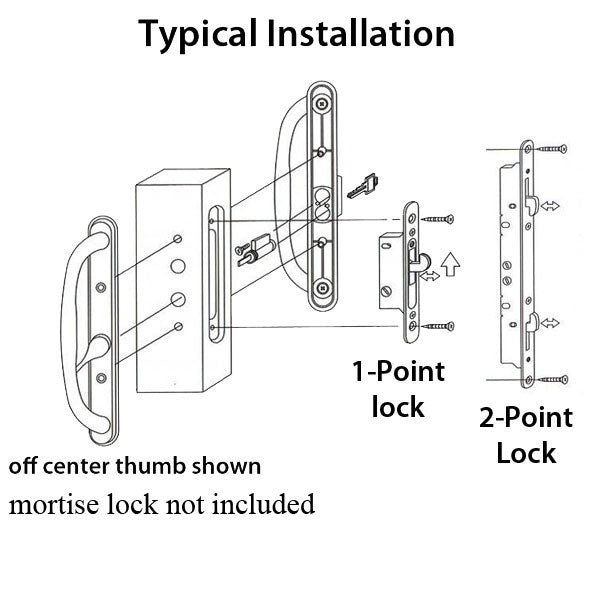

May be used with single, double or multipoint locks.
Compatible with 3 or 4 hole pattern hole fabrication, for 1-3/4 inch thick Doors .
(Optional Screws for 1-1/4 to 2-1/4 inch stile thickness available)

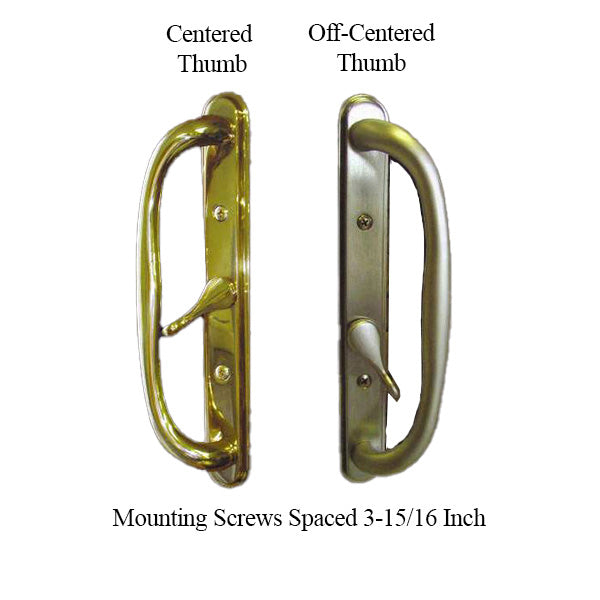

Thumb Turn Position: Offset on Plate (some are centered)

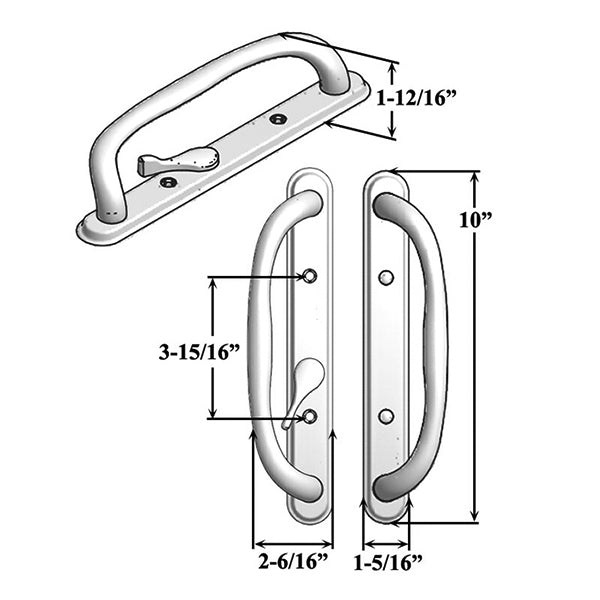

Escutcheon Plate Height: 10 Inch
Escutcheon Plate Width: 1-5/16 Inch
Escutcheon Plate Screw Hole: 3-15/16 Inch Center
Keyway: Schlage (Purchase 15033 to make into a Weiser keyed handle set)
Handing: Non-Handed, Fits left or right hand doors
Latch Style: Hook Style
Handle Type: Internal Mortise Lock Style ( Not Included )

Door Thickness: Standard Fits 1-1/4 to 1-3/4 inch
Other Thickness can be obtained with different length screws
Function: Active Keyed, Cylinder tail piece may need to be cut shorter for doors thinner than 1-3/4''
Material: Zinc Die-cast

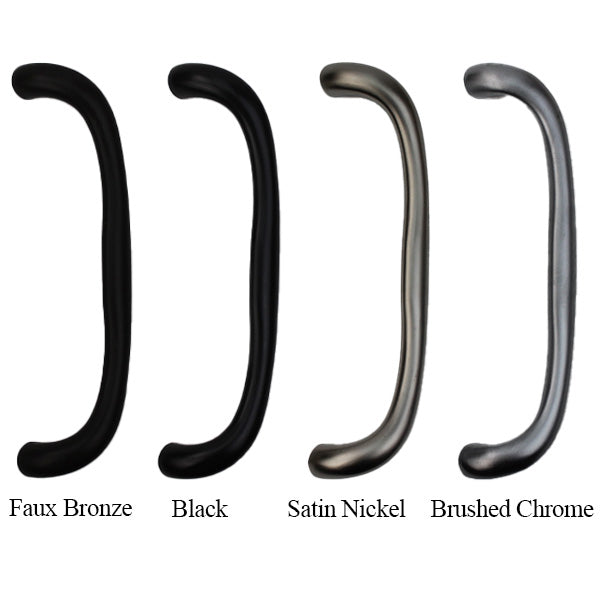

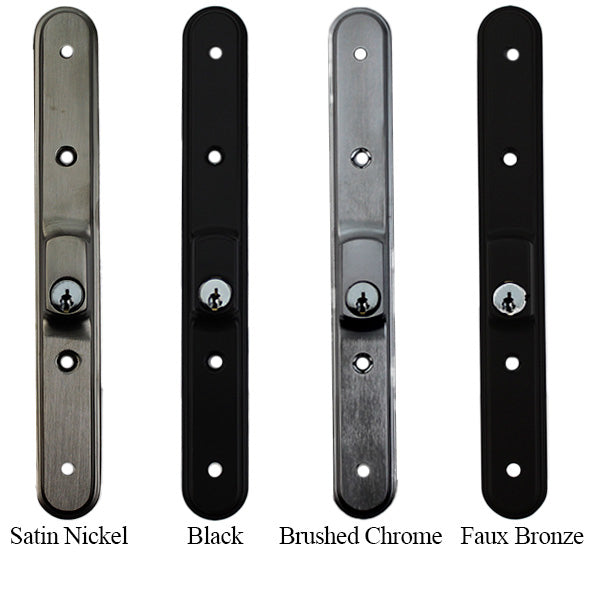

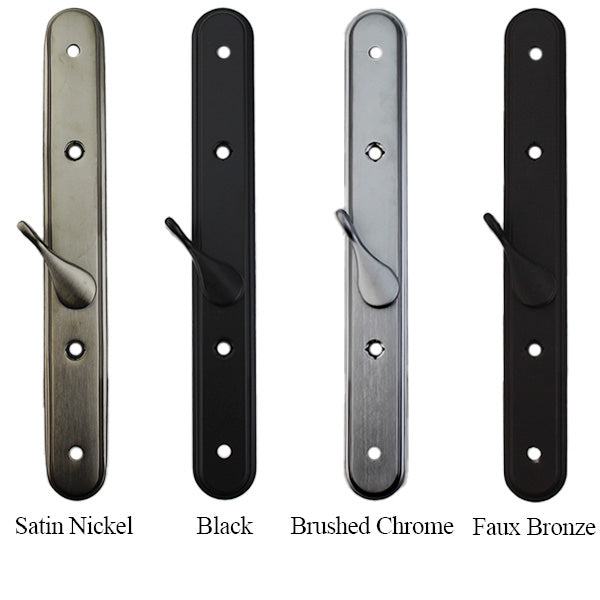

Finish: Brushed Chrome, White, Black, Tan, Lifetime Satin Nickel

Contents: 1 Inside/Outside Plate, 1 Inside/Outside Handle, Keyed cylinder, 2 Keys and Installation Screws.

Priced and sold as a package.

Special Note:
These handle sets are shipped in clear blister packs which can put minor rub marks on the surface. Some shipping carriers do not handle packages with care. Minor scratches or blemishes that occur in shipping are not defects.

Related Parts:
14293-WR: Olympus Keyed Handle Set, Off-Center Thumbturn, Weiser Keyway
14293-SC1: Olympus Keyed Handle Set, Off-Center Thumbturn, Schlage Keyway
14294-WR: Olympus Keyed Handle Set, Centered Thumbturn, Weiser Keyway
14294-SC1: Olympus Keyed Handle Set, Centered Thumbturn, Schlage Keyway
151006 - Keyed Lock Cylinder (Weiser or Kwikset Keyway)
