Multipoint Sliding Door Lock 3 hooks , 1-3/4 backset
- Regular price
- $195.00
- Regular price
-
- Sale price
- $195.00
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : W520365S1

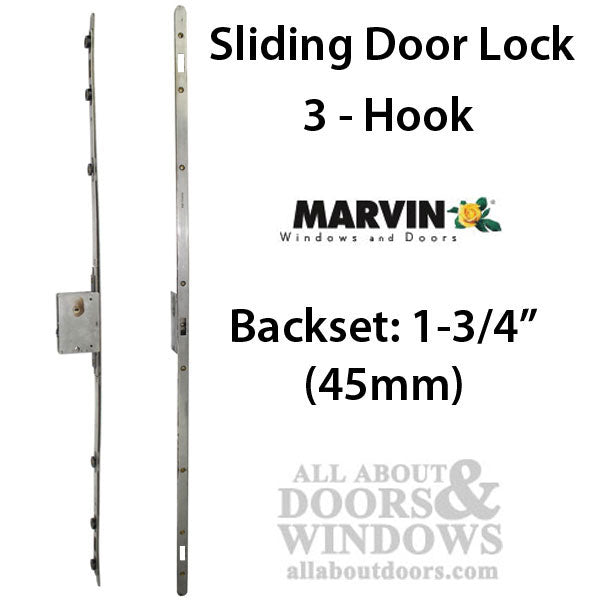

Marvin Multipoint sliding door lock with receptacle for 3 hooks.

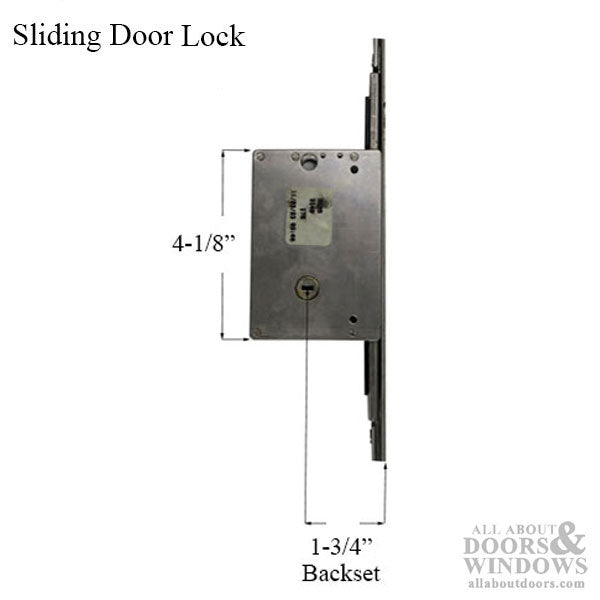

Backset: 1-3/4 in. ( 45 mm)
Faceplate Width: 25/32 in. (20mm)
Overall Length: 40-15/16 in., Radius ends
Hooks: 3 - spaced 16-7/8 in.es
Lock Body case: 4-1/8 in.es
Lock ends: Round
Priced and sold lock only
Note:
This is the lock only, does not include the strike plate on door jamb or handleset trim.
IF you have a Marvin sliding door, their trim is different than others.

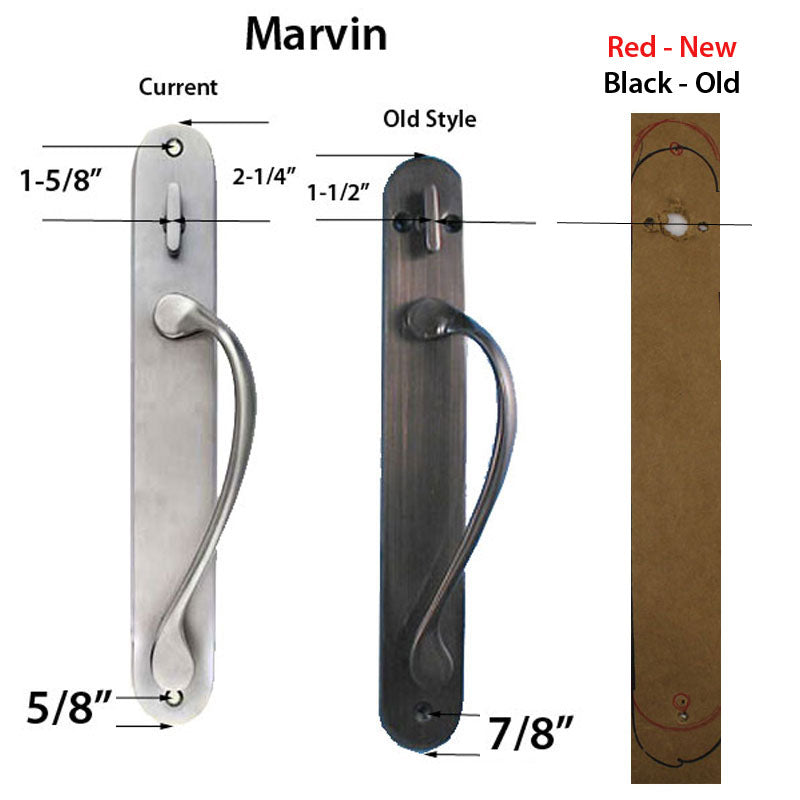

Marvin new style and old style trim is not interchangeable without re-drilling holes and new style does not cover marks from old trim - see additional images.
Marvin new style Sliding door Trim - Measurements from top screw hole to bottom is 11-1/4 in.
The only trim that fits this 11-1/4 screw hole pattern is Marvin - If door is not drilled, standard trim will work
Operation of Lock:
This lock uses 3 hooks, the center hook goes into the lock case and pushes the plate back. This allows the thumb turn or key to turn and secure door in locked position.
Backset: 1-3/4 in. ( 45 mm)
Faceplate Width: 25/32 in. (20mm)
Overall Length: 40-15/16 in., Radius ends
Hooks: 3 - spaced 16-7/8 in.es
Lock Body case: 4-1/8 in.es
Lock ends: Round
Priced and sold lock only
Note:
This is the lock only, does not include the strike plate on door jamb or handleset trim.
IF you have a Marvin sliding door, their trim is different than others.
Marvin new style and old style trim is not interchangeable without re-drilling holes and new style does not cover marks from old trim - see additional images.
Marvin new style Sliding door Trim - Measurements from top screw hole to bottom is 11-1/4 in.
The only trim that fits this 11-1/4 screw hole pattern is Marvin - If door is not drilled, standard trim will work
Operation of Lock:
This lock uses 3 hooks, the center hook goes into the lock case and pushes the plate back. This allows the thumb turn or key to turn and secure door in locked position.
