Truth 55647 Multi-Point Sash Lock Cover, Left Hand

Truth Multi-Point Sash Lock Cover and Handle - Left Hand

This is a left-hand multi-point sash lock cover and handle used in tie bar sash lock applications. It is designed so the handle profile in both the locked and unlocked positions stays low, helping it clear curtains, blinds, and other window treatments.

The lock uses a high-pressure zinc die-cast handle and case for durability. Hole centers measure 3-7/16" (87.3mm), so it should match many existing multi-point installations, but always confirm your measurements before ordering.

This item is discontinued and limited to existing inventory. Current replacements ship with a mounting bracket; if you need a full replacement assembly, see the Truth 24.89 Sash Lock 55653 or 55664 listed below.

Technical Information

• Handing: Left Hand

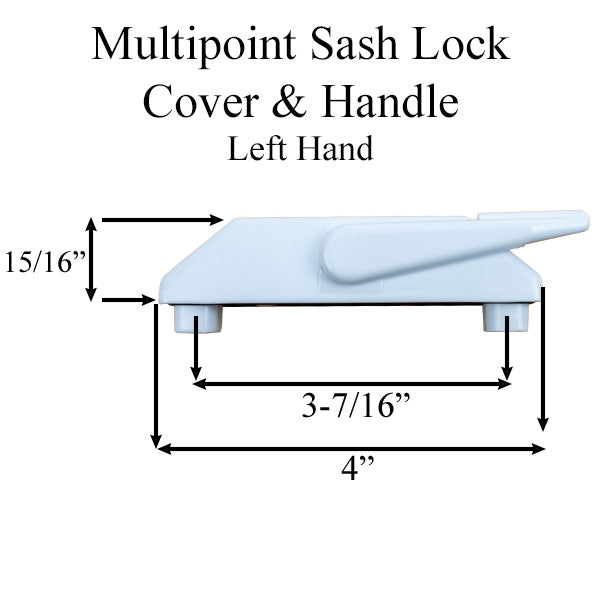

• Hole Center: 3-7/16" (87.3mm)
• Material: High pressure zinc die-cast handle and case
• Application: Multi-point tie bar sash lock
• Original Manufacturer SKU: 55647

Notes

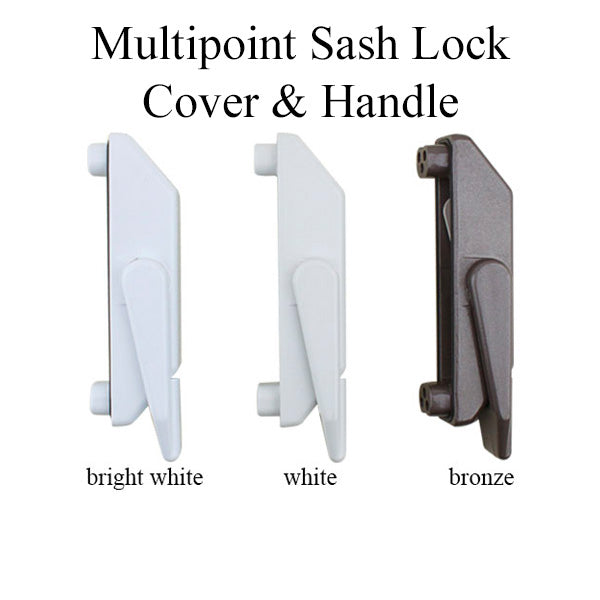

• Available colors: white, bright white (blue white), and bronze.
• The sash lock is used on two different brackets:
  • 55653 & 55654 both have a cylindrical nylon rivet sleeve with different end attachments.
  • 55664 & 55665 both have a tapered nylon rivet sleeve with different end attachments.

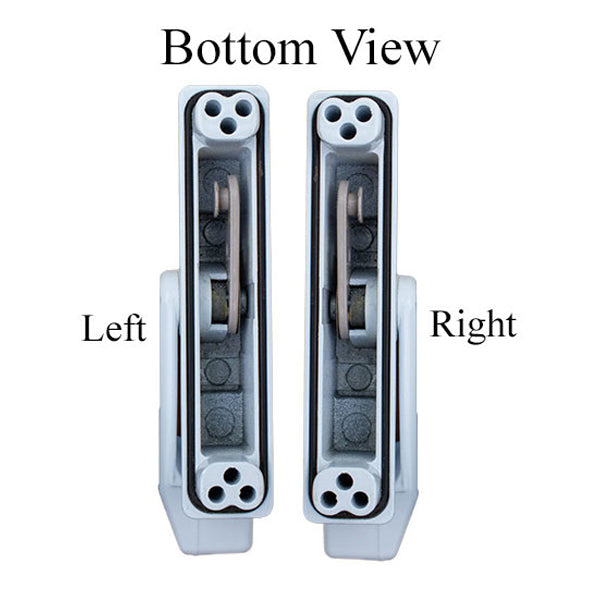

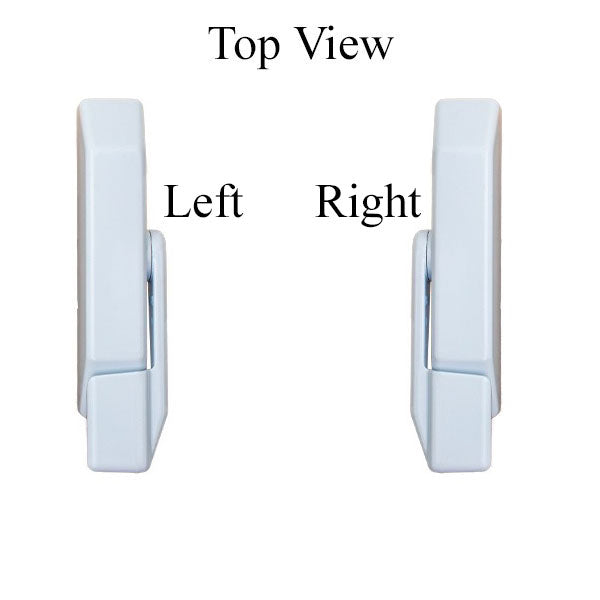

• Right-hand version: 55646 - Right Hand Lock Cover.

Replaces / Replaced by

• Replace with Truth 24.89 Sash Lock 55653 or 55664 (see Notes for bracket differences).

Priced and sold each; order two if you need a matching left and right pair (see 55646 for the right-hand version). This item is discontinued and limited to existing inventory, and there are no returns, refunds, or exchanges on this product. Please measure your existing hardware and confirm handing before ordering to ensure the correct fit.
