Metal Tilt Latch for Top/Upper Sash – Multiple Handing & Colors

Metal Tilt Latch for Top/Upper Sash – Multiple Handing & Color Options

This metal tilt latch is designed for use on the top or upper sash of wood double hung windows. The latch features a sturdy metal housing paired with a plastic tip, offering durability and smooth operation. It is best suited for applications requiring reliable tilt sash operation in residential wood windows.

The latch installs with a screw situated under the thumb button; to remove, simply slide back the button, insert a small screwdriver under the edge to lift it up, then remove the Phillips head screw and slide the latch out. This straightforward process allows for easy maintenance and replacement without specialized tools.

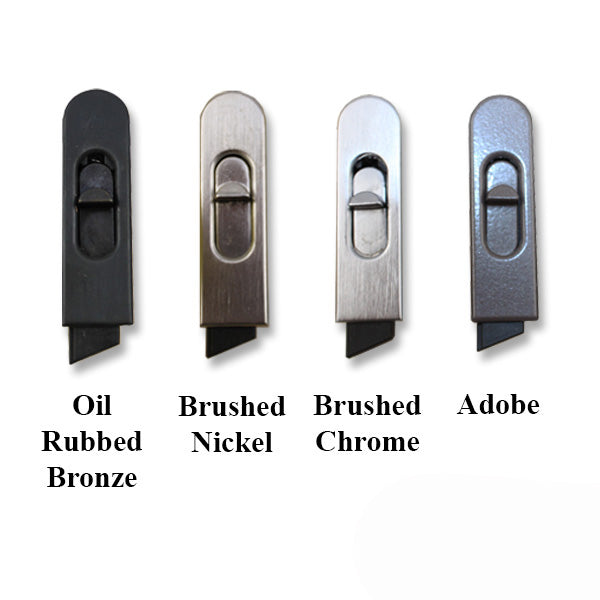

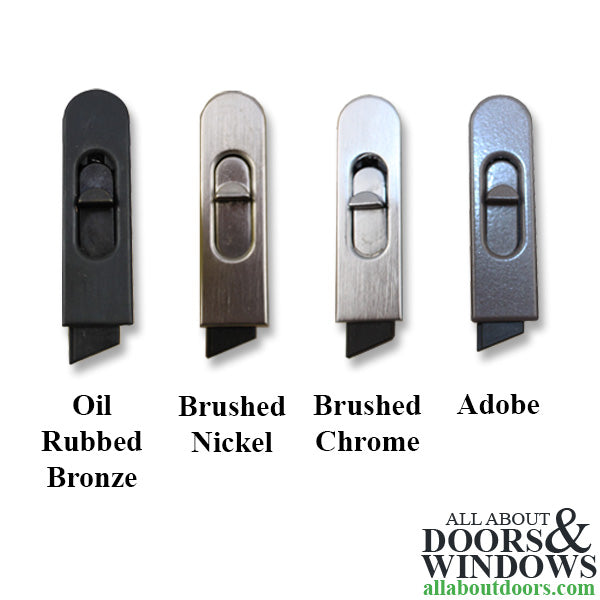

Choose from a range of available colors and finishes to match your window hardware: Oil-Rubbed Bronze, Brushed Nickel, Brushed Chrome, and Adobe. Each latch is priced and sold individually—be sure to order the correct quantity needed for your window project.

Technical Information

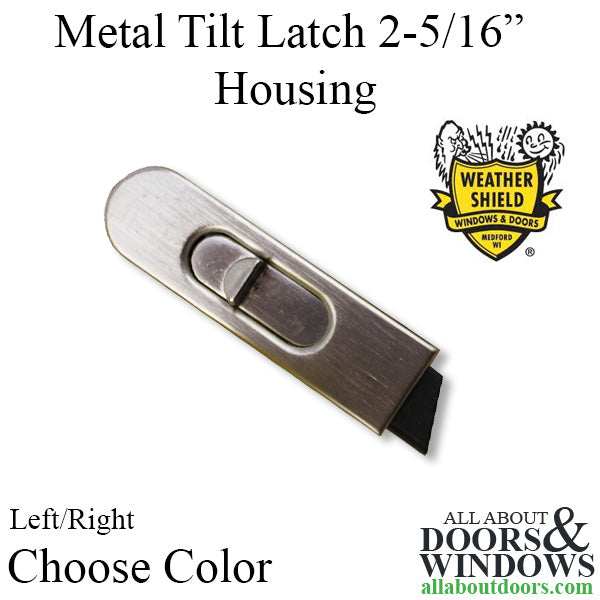

• Housing Length: 2-5/16" (58.7mm)
• Housing Width: 11/16" (17.5mm)
• Tip Projection: 1/4" (6.4mm)

Notes

• This latch is held in place with a Phillips head screw located under the sliding thumb button.
• To remove, slide the button back, lift with a screwdriver, then remove the screw and slide the latch out.
• Compatible finish options: Oil-Rubbed Bronze, Brushed Nickel, Brushed Chrome, Adobe.

Please measure your existing tilt latch and compare all dimensions to ensure a correct fit before ordering. Accurate measurements can help avoid returns and ensure proper installation.
