Metal Tilt Latch for Bottom/Lower Sash – Multiple Colors, Wood Windows
- Regular price
- $9.95
- Regular price
-
- Sale price
- $9.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 503209-L-ADB
Metal tilt latch for bottom or lower sash of wood double hung windows, with a durable metal housing and plastic tip. Measures 2-3/8" (60.3mm) long, 11/16" (17.5mm) wide, and tip projects 1/4" (6.4mm) without bevel. Available in oil-rubbed bronze, brushed chrome, and adobe finishes; secured with a screw beneath the thumb button.
Couldn't load pickup availability
Metal Tilt Latch for Bottom/Lower Sash – Multiple Colors & Handings
This metal tilt latch is designed for use in wood double hung windows, serving as a replacement component for securing and tilting the lower (bottom) sash. The latch features a robust metal housing paired with a plastic tip to ensure smooth sash operation and long-lasting durability. This component helps to hold the window sash firmly in place while allowing for convenient tilting during cleaning or maintenance.
The latch is available in several color options, including Oil-Rubbed Bronze, Brushed Chrome, and Adobe, so you can closely match your existing window hardware or interior finishes. Attention to detail in its construction ensures compatibility and reliability with most wood double hung window applications that use this style of tilt latch mounted on the bottom sash.

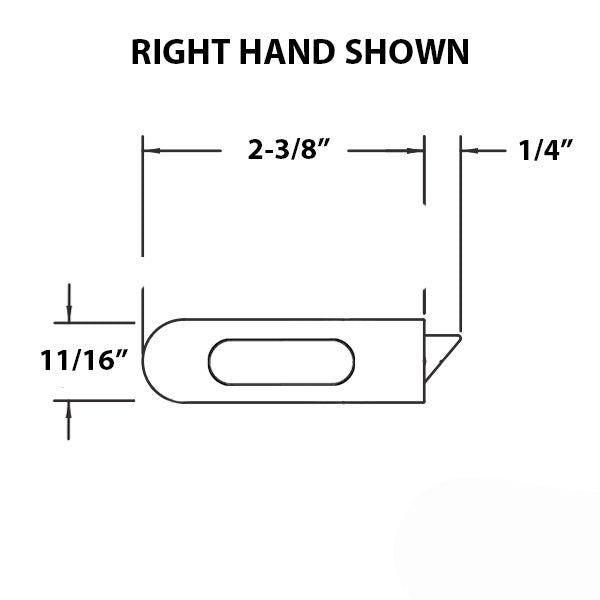

Technical Information
- Housing Length: 2-3/8" (60.3mm)
- Housing Width: 11/16" (17.5mm)
- Tip Projection: 1/4" (6.4mm), non-bevelled
Notes

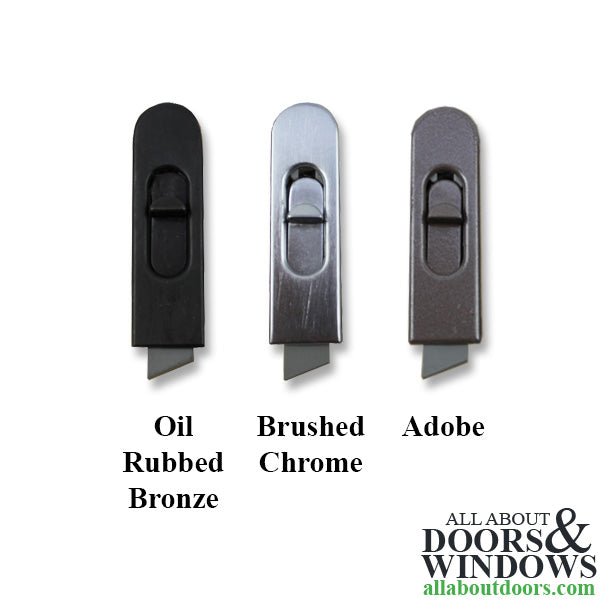

- Available finishes: Oil-Rubbed Bronze, Brushed Chrome, Adobe.
- This latch is secured with a screw hidden beneath the thumb button.
- Button removal instructions: Slide back, insert a small screwdriver under the edge, lift up, then remove the Phillips head screw to slide the latch out.
Priced and sold individually. Confirm the measurements and compare them with your existing hardware to ensure the correct fit before ordering. Always measure your current latch carefully to guarantee compatibility.
Shipping Rates (Contiguous U.S.):
- USPS First Class: $11.95 (5–10 business days)
- USPS Priority Mail: $12.95 (3–6 business days)
- UPS Ground: $17.50 (2–5 business days)
Prices apply to most orders under 4 lbs. Heavier or bulky items may cost more. We'll always contact you for approval before adjusting shipping costs. We'll also contact you regarding shipping delays, if they occur. Need shipping to Alaska or Hawaii? Call us for a UPS quote.
Packaging & Materials
- We reuse clean packing materials when possible to reduce waste.
- Items may be shipped in plain or recycled boxes.
- Most hardware comes in bulk and may not have retail packaging.
- All items are brand new unless otherwise noted.
