Limit Device - SS

Sash Control, Limit Device - SS

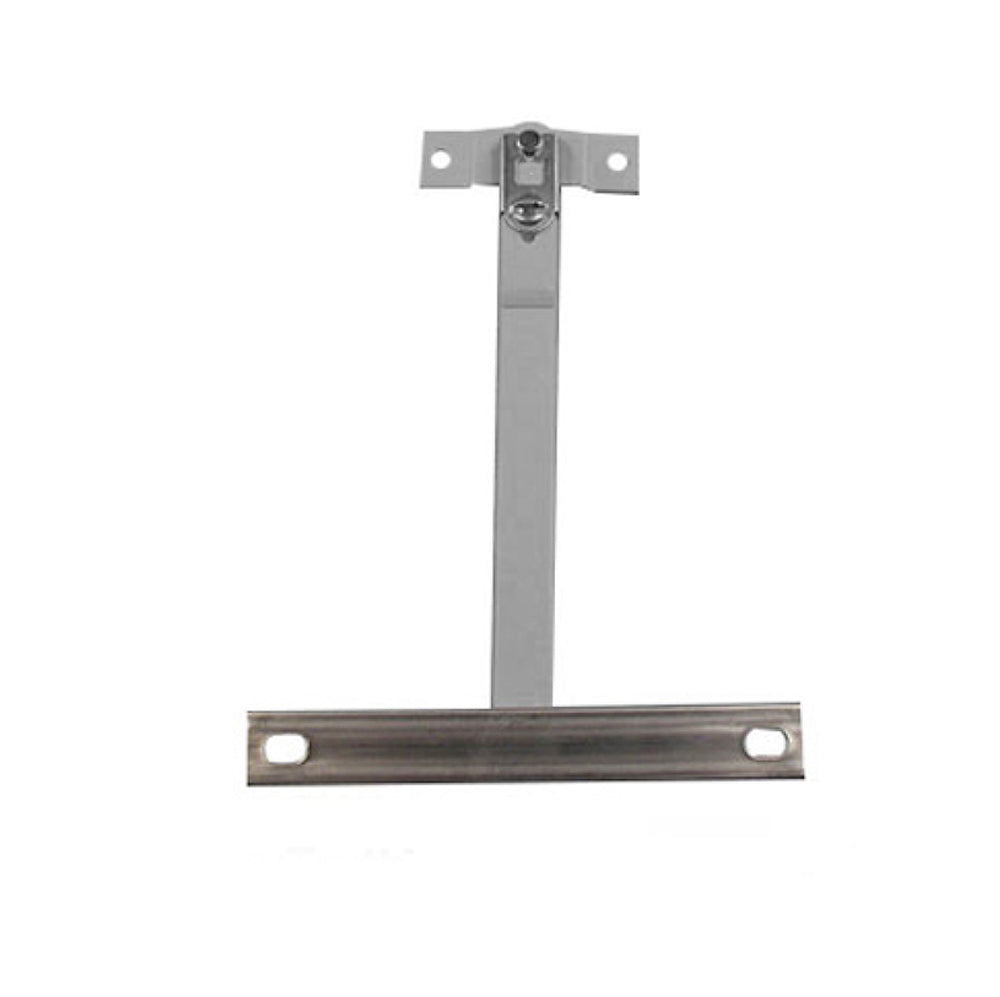

Amesbury Truth® 99.24.00.100 two (2) piece Limit arm and Bracket to restrict how far window opens
The Sash Control Devices is attached to sash and frame. Limits window opening on 2 bar casement window hinges
Includes mounting track and limit arm with detach clip

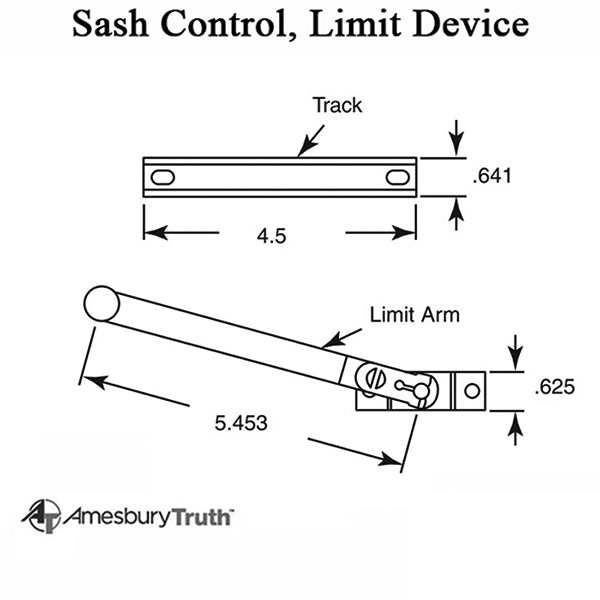

Track Length: 4-1/2 in.es
Track Width: 41/64 in.
Limit Arm Length: 5-29/64 in.es
Limit Arm Shoe Width: 5/8 in.
Material: Stainless Steel

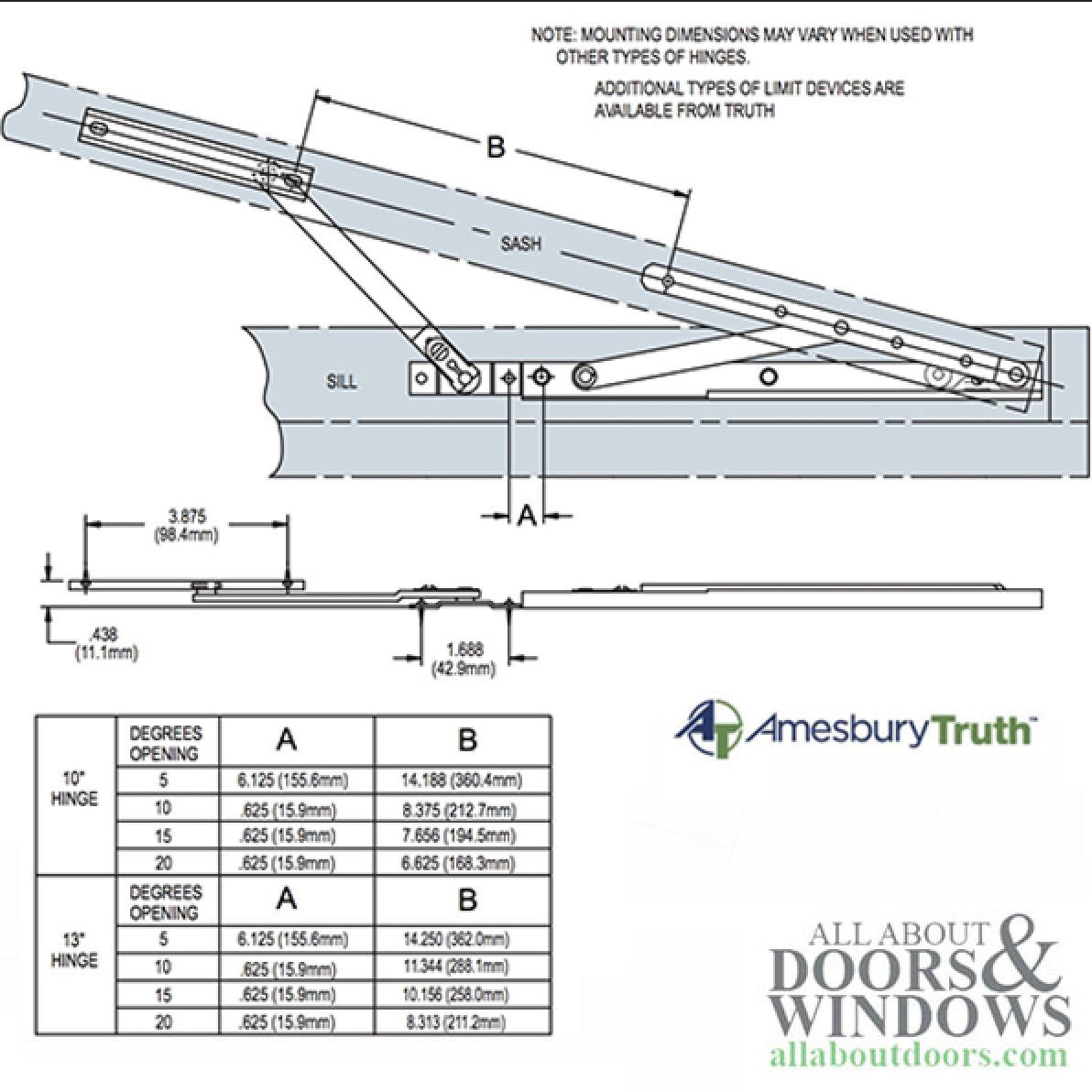

Used with Concealed Hinges:
14.75 - 10 in.
14.97 - 13 in.


Additional Information:
Truth® Limit Device is designed to restrict the opening on projected or casement windows. When properly installed and operated, the limit device will prevent damage to casement and awning windows under high winds in high-rise applications. This limit device is used by several window manufacturers.
Recommended Screws: #7 x .720 Philips, Pan Head, Steel Sheet Metal Screws and #7 x .750 Phillips, Pan Head, Stainless Steel Sheet Metal Screws. Actual screw size may vary depending on application and window material.
