Legacy Sliding Glass Door Handle, Schlage Keyed, Offset Thumbturn

Legacy Glass Sliding Door Handle Set - Keyed, Offset Thumbturn, Schlage Keyway

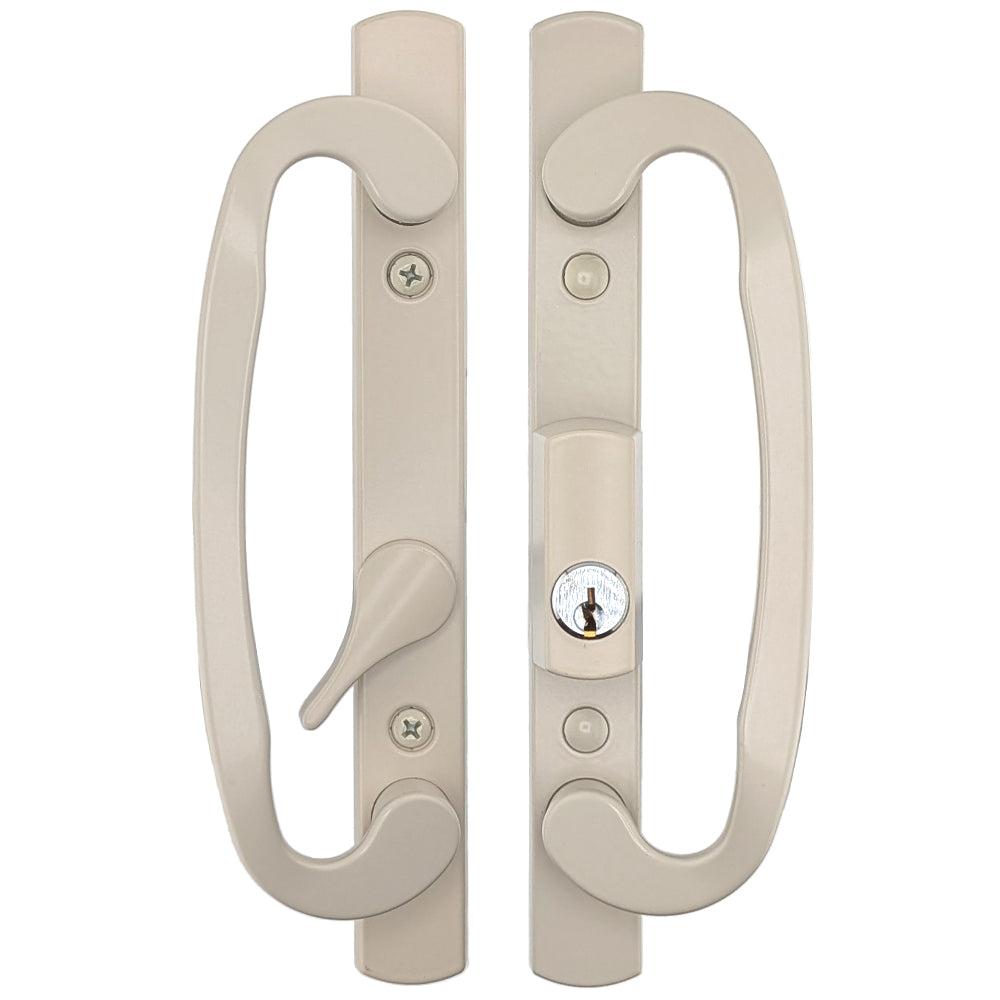

This Legacy Handle Set is designed for sliding glass doors, offering robust security with a keyed lock featuring a Schlage keyway. The handle set is suitable for active door panels that operate with a mortise-style lock (lock body installed inside the door panel).

The model is non-handed, so it fits both left- and right-hand doors. The offset thumbturn is positioned off-center for comfortable use, and the set is rekeyable to match existing 5-pin Schlage systems. If a Weiser keyway is required, a separate cylinder can be purchased. Note that the mortise latch is not included and must be ordered separately. Matching latches are available for wood and vinyl doors (see product 15142) or metal doors (see product 15143).

With an escutcheon plate height of 8-1/2" (215.9mm), plate width of 1" (25.4mm), and a hole center spacing of 3-15/16" (100.0mm), this handle set is compatible with both single and multi-point locks. It is designed to work with doors that are 1-3/4" (44.5mm) thick and supports common 3- or 4-hole installation patterns. Its universal two-piece construction allows for mix-and-match options by color, keyed/non-keyed, and dummy configurations.

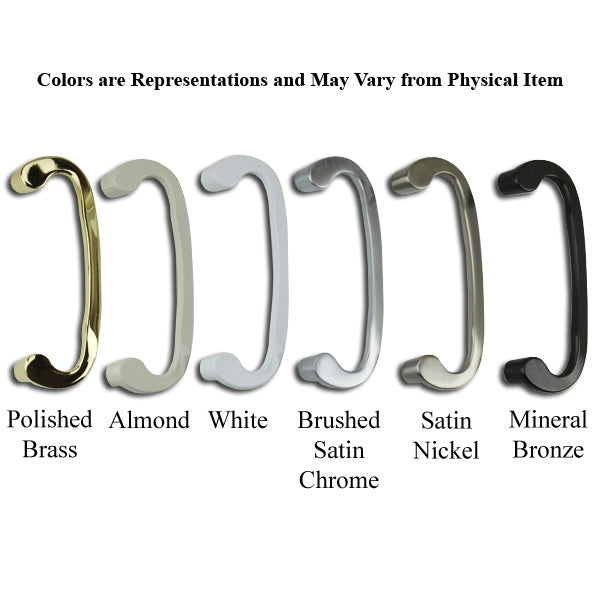

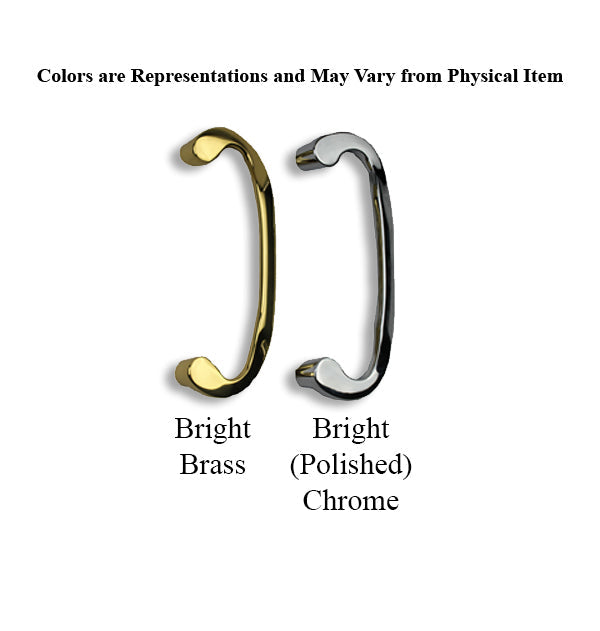

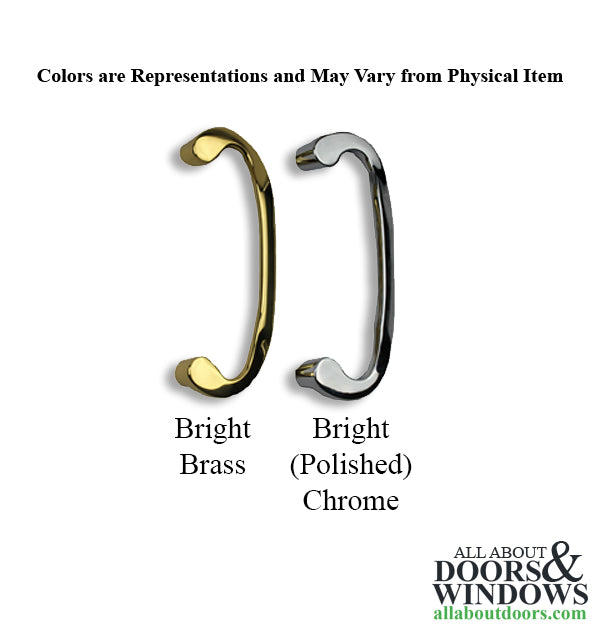

This handle set comes in a wide selection of standard and premium finishes for the best match to your décor. Choose from White, Black, Almond, Mineral Bronze, Plated Polished Brass, Solid Polished Brass, Bright Brass, Brushed/Satin Chrome, Bright Polished Chrome, and Lifetime Brushed/Satin Nickel.

Stamped With

• Sash Control 2265 (stamped on the back of the plate)

Technical Information

• Keyway: Schlage (5-pin, rekeyable)
• Door Thickness: 1-3/4" (44.5mm)
• Escutcheon Plate Height: 8-1/2" (215.9mm)
• Escutcheon Plate Width: 1" (25.4mm)

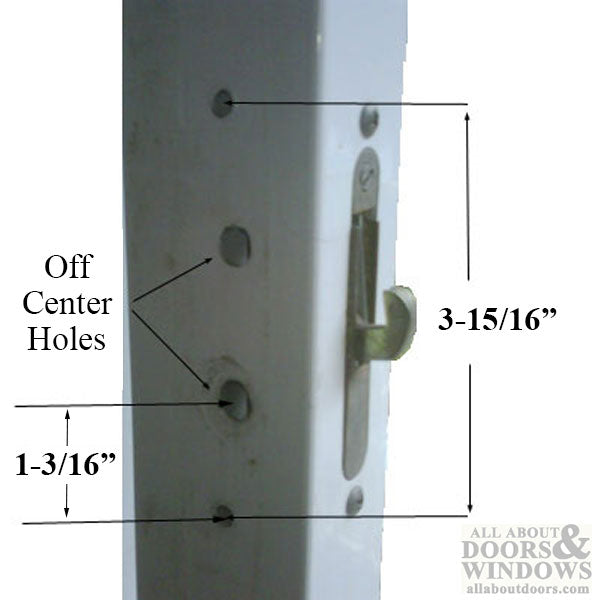

• Hole Center Spacing: 3-15/16" (100.0mm)
• Compatible Mortise Latch: Sold separately (Order SKU 15142 for wood/vinyl or 15143 for metal doors)
• Base Material: Zinc on standard hardware; Brass on premium hardware
• Handing: Non-handed (fits left or right doors)
• Contents: 1 inside plate, 1 inside handle, 1 outside plate, 1 outside handle, installation screws, Schlage keyed cylinder, 2 keys

Notes

• Available in multiple standard and premium color/finish options
• Handle set is compatible with 3- or 4-hole fabrication and 1-3/4" stiles
• Mix-and-match by function or finish; keyed, non-keyed, and dummy versions compatible
• For other door thicknesses (1-1/4" to 2-1/4"), contact customer service before purchase

This handle set is sold as a complete kit (excluding mortise latch). Check the specifications and measure your existing hardware carefully to ensure a correct fit before ordering. Always verify dimensions and keyway compatibility with your current door hardware.
