Legacy Sliding Glass Door Handle, Center Thumb Turn, Keyed

Legacy Glass Sliding Door Handle with Center Thumb Turn and Key

This Legacy handle set is designed for sliding glass doors and offers flexible performance for both residential and light commercial settings. Featuring a centered thumb turn and a keyed lock, this non-handed handle can be installed on either left or right-handed doors and is compatible with single or multi-point locking systems. Its two-piece construction allows for mixing and matching of interior and exterior handles by color and finish, supporting both active (keyed), non-keyed, and dummy variants.

The handle set fits standard sliding door preparations with 3- or 4-hole patterns and accommodates stile thicknesses of 1-3/4" (44.5mm). It may also fit doors from 1-1/4" (31.8mm) to 2-1/4" (57.2mm); please contact our office for compatibility questions. The thumb turn is centered for ease of use. Note: The internal mortise latch is not included and is sold separately.

Compatible with standard mortise locks (lock mechanism is positioned inside the door panel), this set uses a Schlage keyway and includes a rekeyable, five-pin lock cylinder. For Weiser keyway, a separate cylinder is required. Offered in a wide range of standard, premium, and split color finishes, the inside and outside handle plates are crafted from either zinc (standard) or solid brass (premium), ensuring long-lasting durability and a clean, stylish appearance. Escutcheon plate measures 8-1/2" (215.9mm) high by 1" (25.4mm) wide, with 3-15/16" (100.0mm) mounting hole centers.

Stamped With

• Sash Control 2265 (stamped on back of plate)

Technical Information

• Thumb Turn Position: Centered
• Fits Door Thickness: 1-3/4" (44.5mm)
• Mounting: Non-handed (left or right hand doors)
• Hole Pattern: Compatible with 3- or 4-hole fabrication
• Plate Dimensions: 8-1/2" (215.9mm) height x 1" (25.4mm) width
• Hole Center: 3-15/16" (100.0mm)
• Keyway: Schlage, 5-pin (rekeyable)
• Base Material: Standard zinc, premium solid brass

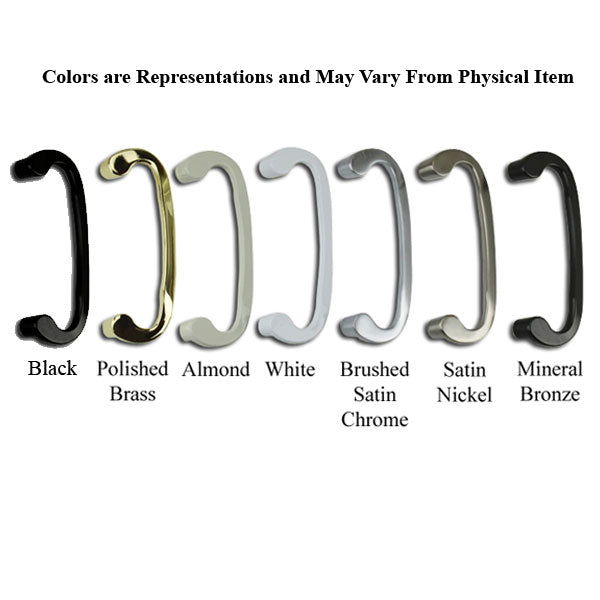

• Finish Colors: White, Black, Almond, Mineral Bronze, Plated Polished Brass, Solid Polished Brass, Brushed/Satin Chrome, Lifetime Brushed/Satin Nickel (PVD), Bright Brass/White (split)
• Contents: 1 inside plate, 1 inside handle, 1 outside plate, 1 outside handle, installation screws

Notes

• Handle sets for doors 1-1/4" (31.8mm) to 2-1/4" (57.2mm) thick may be available—contact us to confirm compatibility.
• Internal mortise latch is sold separately.

This item is sold individually as a complete handle set (interior and exterior handles, plates, fasteners). Please confirm your door's stile thickness and mounting hole pattern before 'purchasing. Properly measuring your existing hardware is essential to ensure the correct fit before ordering.
