4" x 4" Inswing Door Hinge 5/8" Radius/Square Corner

4" x 4" Inswing Door Hinge with 5/8" Radius / Square Corner and Security Tabs

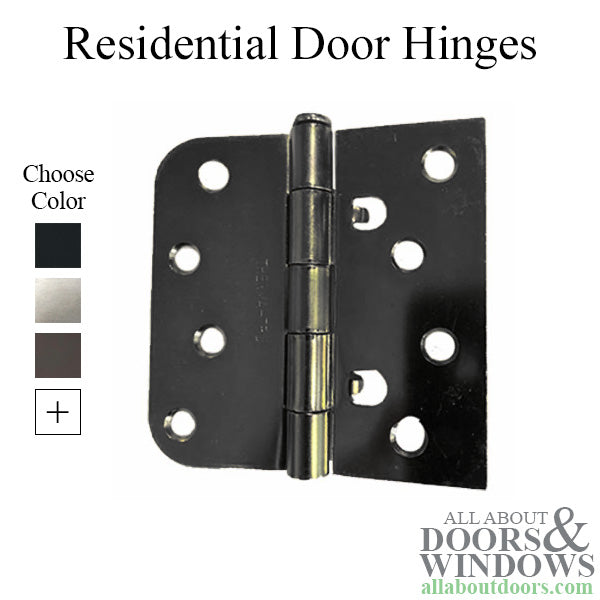

This is a self-aligning inswing entry door hinge with built-in security tabs that help keep the door secured to the frame even if the hinge pin is removed. It is commonly used by Therma-Tru and other residential entry door manufacturers.

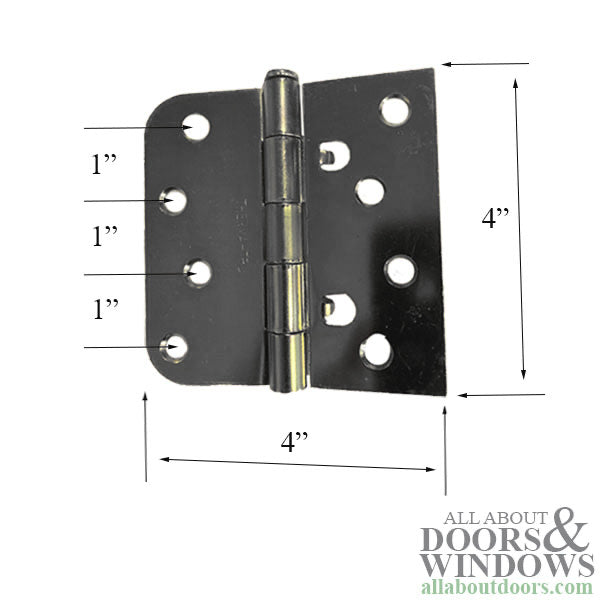

The hinge measures 4" x 4" (101.6mm x 101.6mm) with a 5/8" (15.9mm) radius corner on one leaf and a square corner on the other, making it a versatile replacement for many prehung inswing doors. The zig-zag screw hole pattern helps prevent screws from splitting the door edge or jamb.

It is non-handed, so the same hinge works on both left-hand and right-hand inswing doors. Available in multiple finishes so you can match the rest of your door hardware.

Technical Information

• Width: 4" (101.6mm)
• Height: 4" (101.6mm)
• Corner Style: 5/8" (15.9mm) Radius / Square
• Screw Hole Pattern: Zig Zag
• Material: Steel
• Handing: Non-Handed
• Features: Self-Aligning, Security Tabs
• Application: Inswing Entry Door

Notes

• Finish options: Oil Rubbed Bronze, Brushed Nickel, Black Nickel, Stainless Steel, Zinc Dichromate.
• Used by Therma-Tru and other entry door manufacturers.
• Recommended screws (not always included): Door leaf typically uses #10 x 1" screws; jamb leaf typically uses #10 x 3/4" screws. Confirm the correct length for your door and jamb before installing.

Priced and sold each — most residential entry doors use three hinges, so order the quantity you need. Select your finish from the drop-down before adding to cart. Please measure your existing hinge (height, width, and corner radius) and verify the screw hole pattern before ordering to ensure the correct fit.
