Inactive Handle Set 800C for Multipoint Locks – Non-Handed Zinc

Inactive Handle Set 800C for Multipoint Locks – Zinc Material

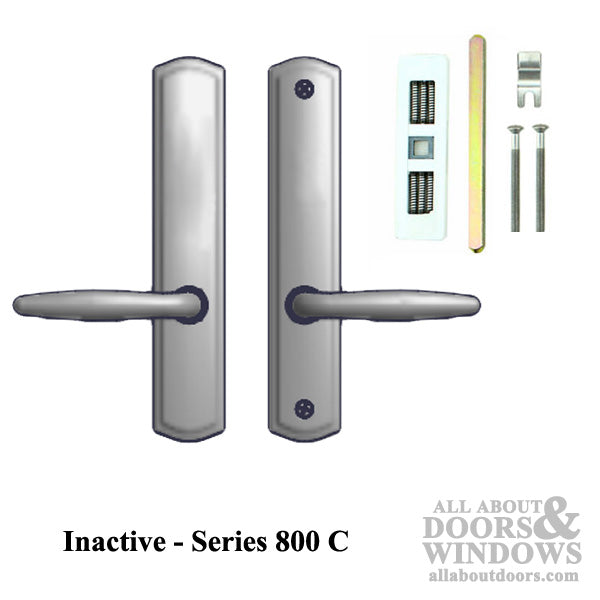

The Inactive Handle Set 800C is a non-keyed handle trim designed for the passive panel of double entry doors equipped with multipoint locking systems. Manufactured by Amesbury®, this handle set is suitable for residential or commercial doors where only one side is operational and the companion door requires matching hardware for a cohesive look.

This handle set is part of the 800C Regency series, featuring a straight lever and a slightly arched top on the escutcheon plate. It is ideal for replacing existing hardware on Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American-style multipoint lock systems. There is no key cylinder or thumbturn—both inside and outside handles move, but do not operate a latch or lock.

The handle set uses a spring-loaded cassette for improved lever action. It is non-handed, making installation straightforward regardless of door orientation. Made from durable zinc material, it is offered in several finishes to suit different design needs: Wet White, Black, Satin Nickel PVD (recommended for coastal environments due to its resistance to tarnishing and discoloration), and Dark Oil Rubbed Bronze.

Technical Information

• Application: Inactive/passive handleset for multipoint locks
• Base Material: Zinc
• Door Thickness: 1-3/4" (44.5mm)
• Escutcheon Plate: C Style – slight arch top
• Plate Width: 1.79" (45.5mm)
• Overall Plate Height: 9.47" (240.5mm)
• Escutcheon Screw Hole Spacing: 7.87" or 7-7/8" (199.9mm)
• Handle to Cylinder Center: 3.62" or 3-5/8" (92mm)
• Handle Projection: 1.23" (31.2mm)
• Handle Clearance: 2.00" (50.8mm)
• Handle Length: 4.72" (120mm)
• Handed: No (universal fit for either side of the door)

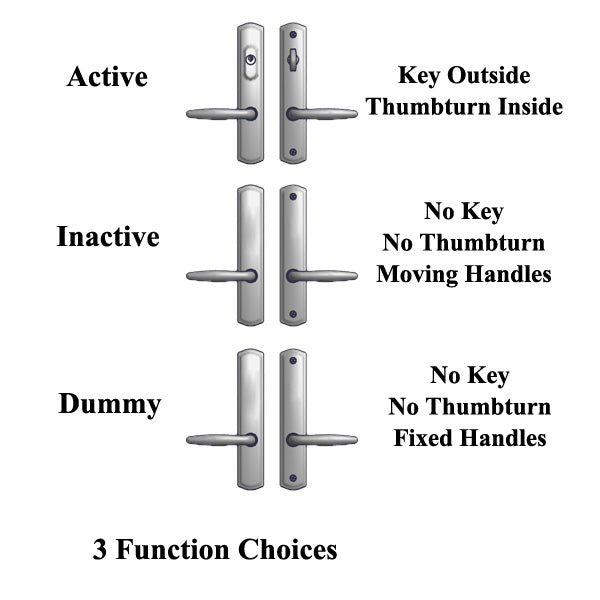

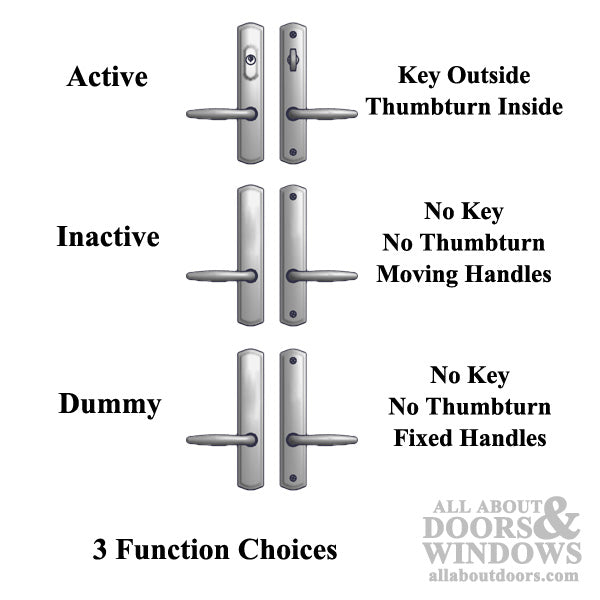

• Function: Inactive/passive—no key, no thumbturn, moving handles for trim only
• Available Finishes: Wet White, Black, Satin Nickel PVD, Dark Oil Rubbed Bronze
• Recommended Use: For matching the inactive panel in double door sets

Notes

• The Satin Nickel PVD finish provides extra durability and corrosion resistance, especially suitable for coastal climates.
• This trim does not include a locking function and is used exclusively as a decorative, moving handle for non-active (passive) doors.
• Can be used for both 'key above handle' and 'key below handle' door applications if matching the active panel's style.

Replaces / Replaced by

• Replaces Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American multipoint lock trims with similar configurations.

Sold individually for use on the non-active door of a double door set. Please verify your existing hardware measurements and compatibility before ordering to ensure proper fit. Always measure your current handle set and door to confirm correct sizing before purchase.
