Inactive Handle Set 800C for Multipoint Locks – Solid Brass Satin Nickel

Inactive Handle Set 800C for Multipoint Locks – Solid Brass, Lifetime Satin Nickel (PVD)

The Amesbury® 800C Regency Series Inactive Handle Set is designed specifically for use with multipoint locks on the inactive, or passive, door in a double door configuration. This non-keyed trim provides the classic look of a straight lever and a gently arched top escutcheon plate. It’s an ideal choice for replacing trim used on doors by Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American manufacturers of multipoint locking systems.

This handle set is not handed, meaning it can be installed on either the left or right side passive door, and includes a spring-loaded cassette to provide smooth lever action. The base material is solid brass, and the finish uses PVD (Physical Vapor Deposition) technology, offering long-term durability and corrosion resistance—especially valuable in coastal environments.

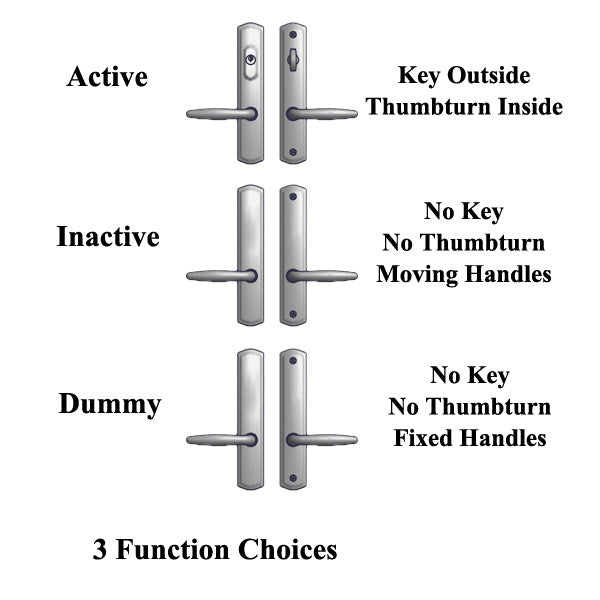

This is a handleset only for inactive doors; there is no key or thumbturn function, but the levers do operate as handles. Please ensure compatibility with your existing hardware using the measurements provided below.

Technical Information

• Application: Inactive/Passive handleset for multipoint locks (no key, no thumbturn)
• Brand/Series: Amesbury® 800C Regency Series
• Material: Solid brass with lifetime satin nickel PVD finish
• Escutcheon Plate Style: C Style - Slight arch top
• Escutcheon Plate Dimensions: 1.79" (45.5 mm) width x 9.47" (240.6 mm) height
• Plate Screw Hole Spacing: 7.87" or 7-7/8" (199.9 mm) center-to-center
• Handle to Cylinder: 3.62" or 3-5/8" (92 mm)
• Handle Projection: 1.23" (31.2 mm)
• Handle Clearance: 2.00" (50.8 mm)
• Handle Length: 4.72" (120 mm)
• Door Thickness: 1-3/4" (44.5 mm)
• Handing: Non-handed (reversible)
• Vendor: Amesbury Truth Hardware

Notes

• Intended for use with multipoint locks on inactive doors in double door sets.
• Solid brass construction with durable PVD finish for marine and coastal environments.
• Replaces inactive handles on several major American brands including Marvin, Milgard, G-U/Ferco, and more.
• Handles move independently (no key or thumbturn function).

Carefully measure your current handle set, screw spacing, and door thickness to ensure this handle set is the correct fit for your multipoint lock system before ordering. Proper measurement is essential to avoid returns and ensure a secure installation.
