Giesse Terrace Door Flash Hinge XL clamp hinge C001 for Euro Groove
- Regular price
- $42.43
- Regular price
- $42.43
- Regular price
-
- Sale price
- $42.43
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: CH-00535-SR

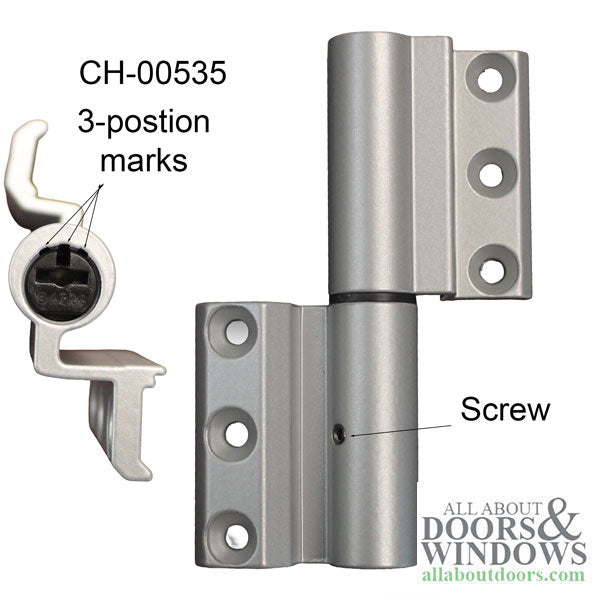

Giesse Flash XL clamp hinge for Euro groove aluminum windows and terrace/balcony doors with central gasket seal. Preassembled for fast installation. Marked 84344 on plastic cap.
Couldn't load pickup availability

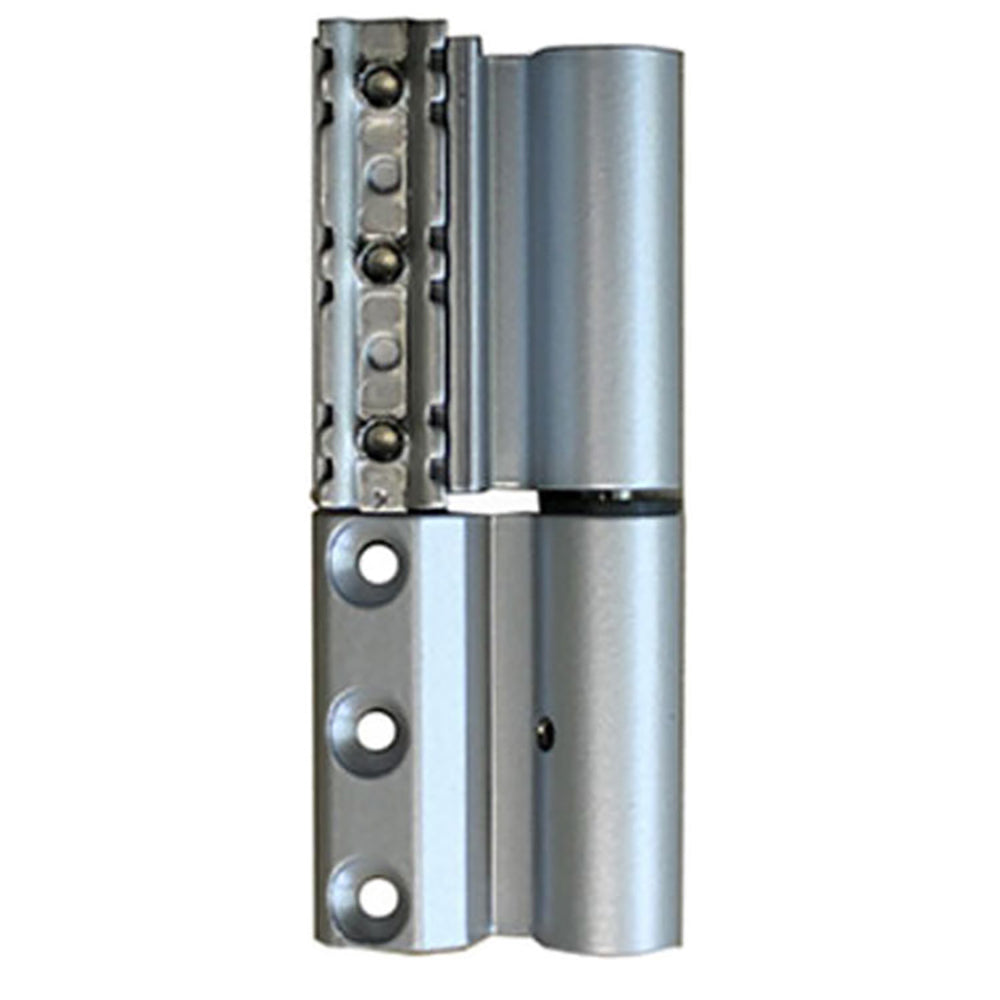

Giesse Flash Hinge XL - Clamp Hinge C001 for Euro Groove

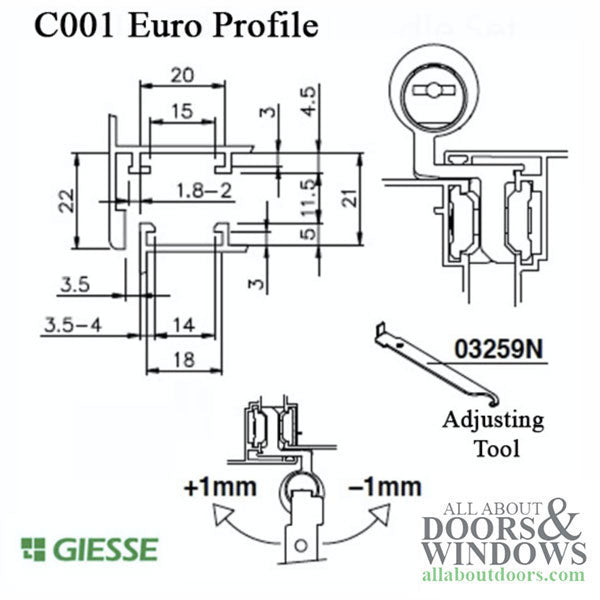

Giesse two-handed hinge designed for aluminum windows and terrace/balcony doors with central gasket seal. This is a clamp-style hinge intended for Euro groove aluminum profiles. Marked 84344 on the plastic cap. Supplied preassembled for fast installation on already-assembled fixtures.
Specifications:

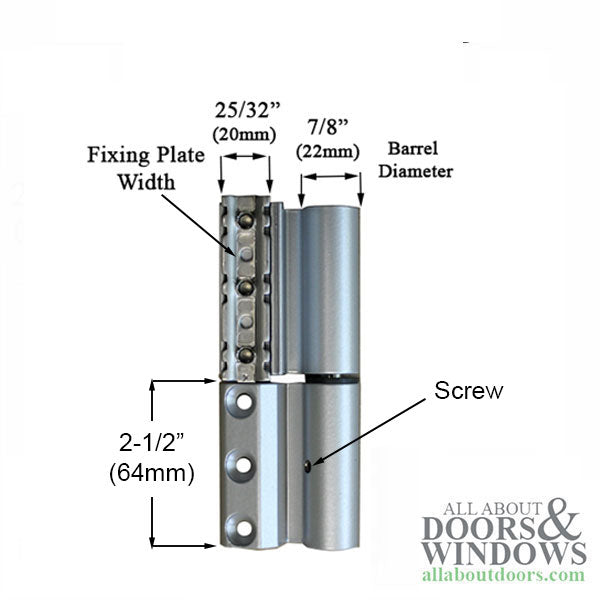

- Overall Height: 5-1/8 inch (130mm)
- Barrel Diameter: 7/8 inch
- Fixing Plate Width: 11/16 inch
- Fixing Plate Length: 2-3/4 inch (70mm)
- Material: Extruded aluminum, stainless steel fixing plates, pins and screws, polyamide bushing
- Color: Silver

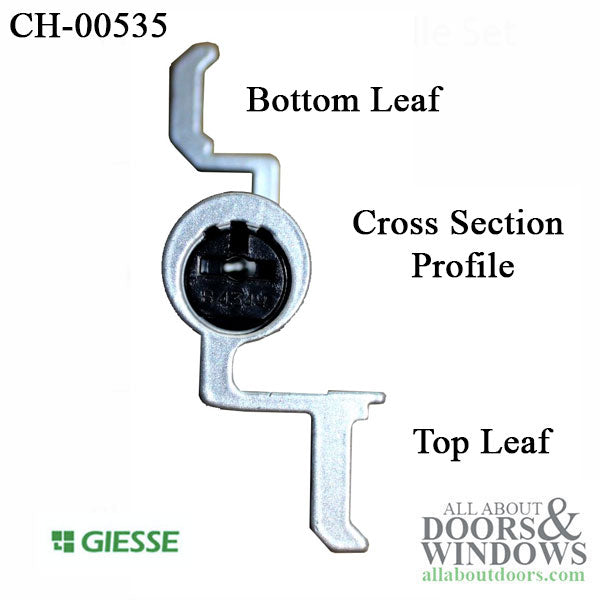

- Markings: 84344 on plastic cap
Compatibility:
Aluminum framed terrace/balcony doors and windows with Euro groove profiles and central gasket seal.
Notes:
- Clamp widths and shapes of hinges vary (over a dozen profiles exist). Please verify all images and hinge measurements before purchasing.
- Supplied preassembled to enable fast installation and faultless positioning on already-assembled fixtures.
- The fixing plate fitted to the sash uses the Giesse RAPID system for secure attachment to the profile.
- The hinge geometry allows swift application to an already-assembled fixture with faultless screw positioning.
