Giesse Euro Groove Clamp Hinge C001 Profile 84344 for Aluminum Doors & Windows
- Regular price
- $35.32
- Regular price
-
- Sale price
- $35.32
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: CH-00535-SR

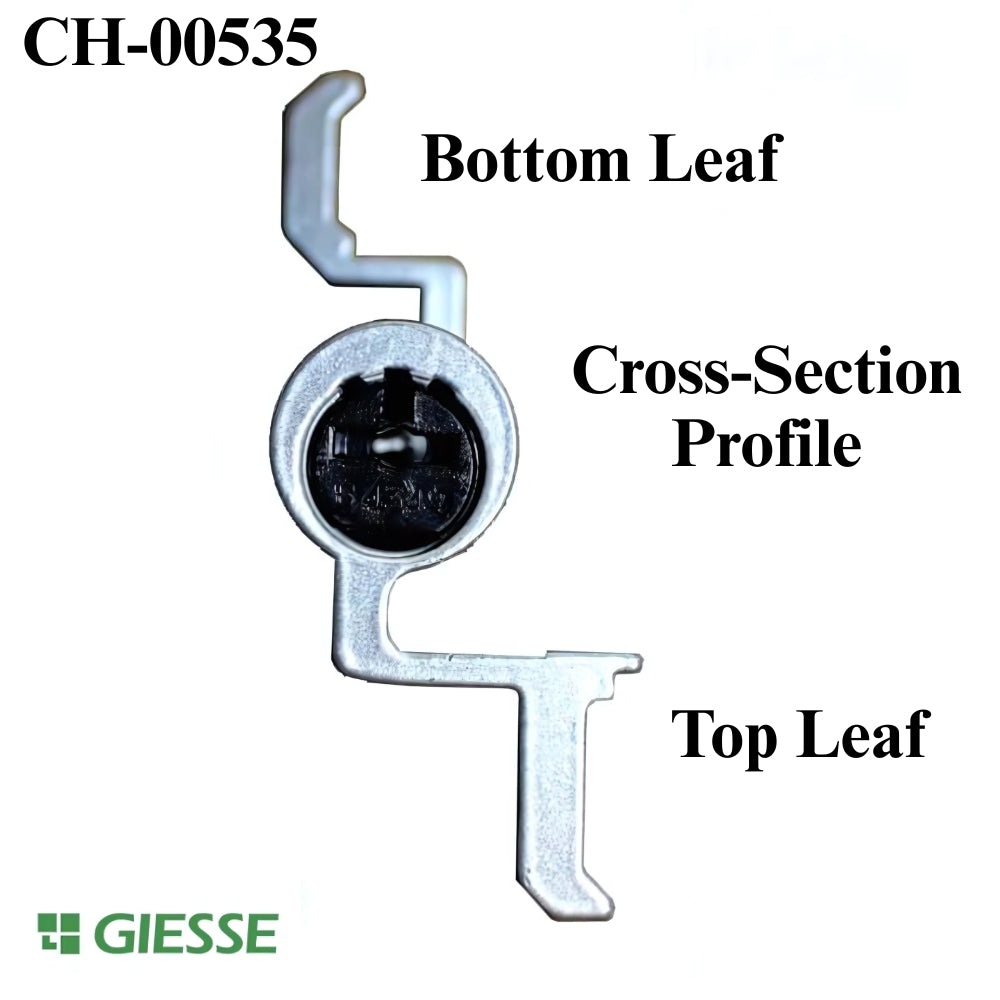

Giesse Euro Groove clamp hinge for C001 profile fits aluminum windows and terrace or balcony doors with a central gasket seal. Measures 5-1/8" (130mm) high, 7/8" barrel diameter, and 2-3/4" (70mm) fixing plate length; stamped with number 84344 on the plastic cap. Made from extruded aluminum with stainless steel components in a silver finish—verify hinge shape and size before ordering.
Couldn't load pickup availability
Giesse Euro Groove Clamp Hinge for C001 Profile
This is a Giesse Euro Groove clamp hinge designed for aluminum-framed windows and terrace or balcony doors using the C001 profile with a central gasket seal. The hinge allows smooth operation of aluminum doors and windows where durability and precise fit are essential. Both the hinge and fixing plates are manufactured from extruded aluminum and stainless steel, with a polyamide bushing for long-term reliable performance.

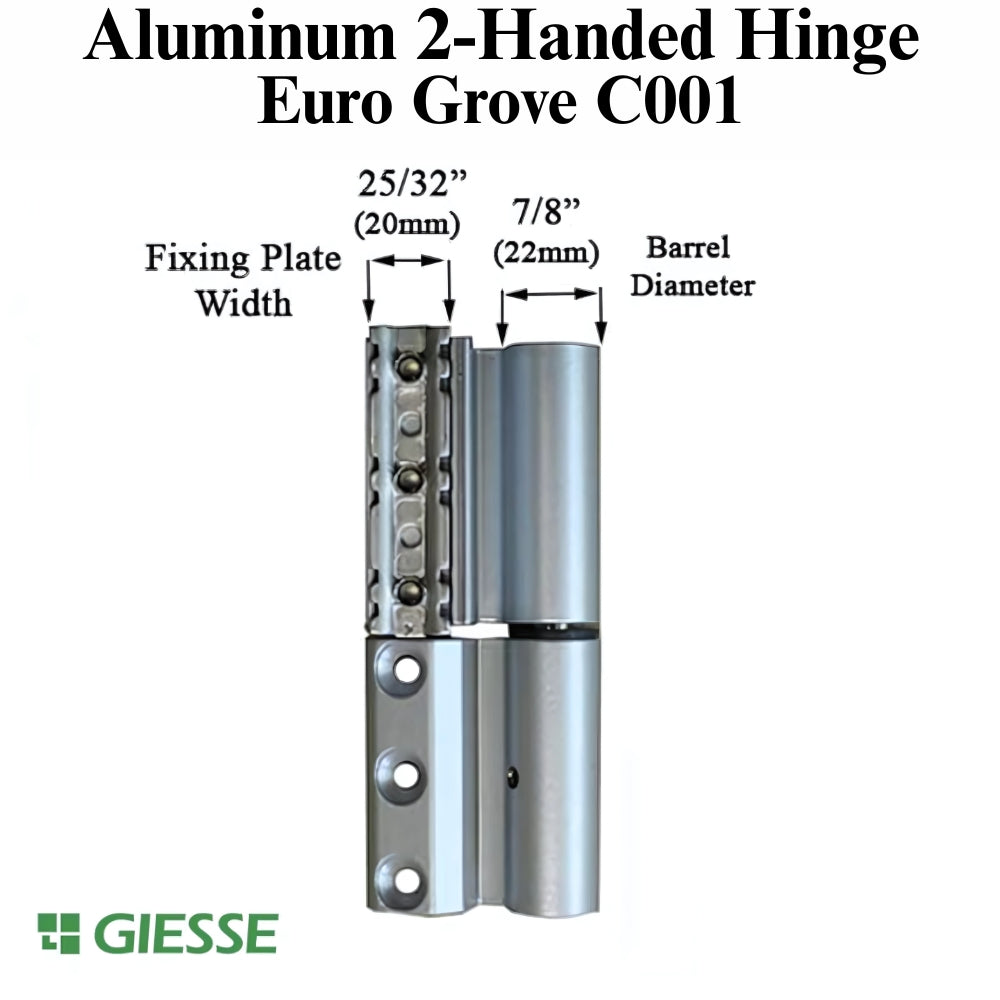

Key dimensions include an overall height of 5-1/8" (130mm), a barrel diameter of 7/8" (22.2mm), fixing plate width of 11/16" (17.5mm), and plate length of 2-3/4" (70mm). The hinge features a silver finish.
The unit comes preassembled to speed up installation and ensure faultless positioning on assembled fixtures. Giesse's patented RAPID system on the fixing plate guarantees the firmest possible attachment to window or door profiles, making it an ideal solution for both new builds and replacements where time and fit matter. The special geometry of the hinge enables easy retrofitting, even after the window or door has been put together.
Note: Clamp widths and profiles vary—over a dozen profiles exist—so please compare all images and measurements with your original hinges before purchasing to avoid compatibility issues.
Stamped With
- 84344 on plastic cap
Technical Information
- Application: Aluminum framed doors and windows
- Overall Height: 5-1/8" (130mm)
- Barrel Diameter: 7/8" (22.2mm)
- Fixing Plate Width: 11/16" (17.5mm)
- Fixing Plate Length: 2-3/4" (70mm)
- Material: Extruded Aluminum, Stainless Steel fixing plates, pins, and screws; Polyamide bushing
- Hinge Color: Silver
Notes

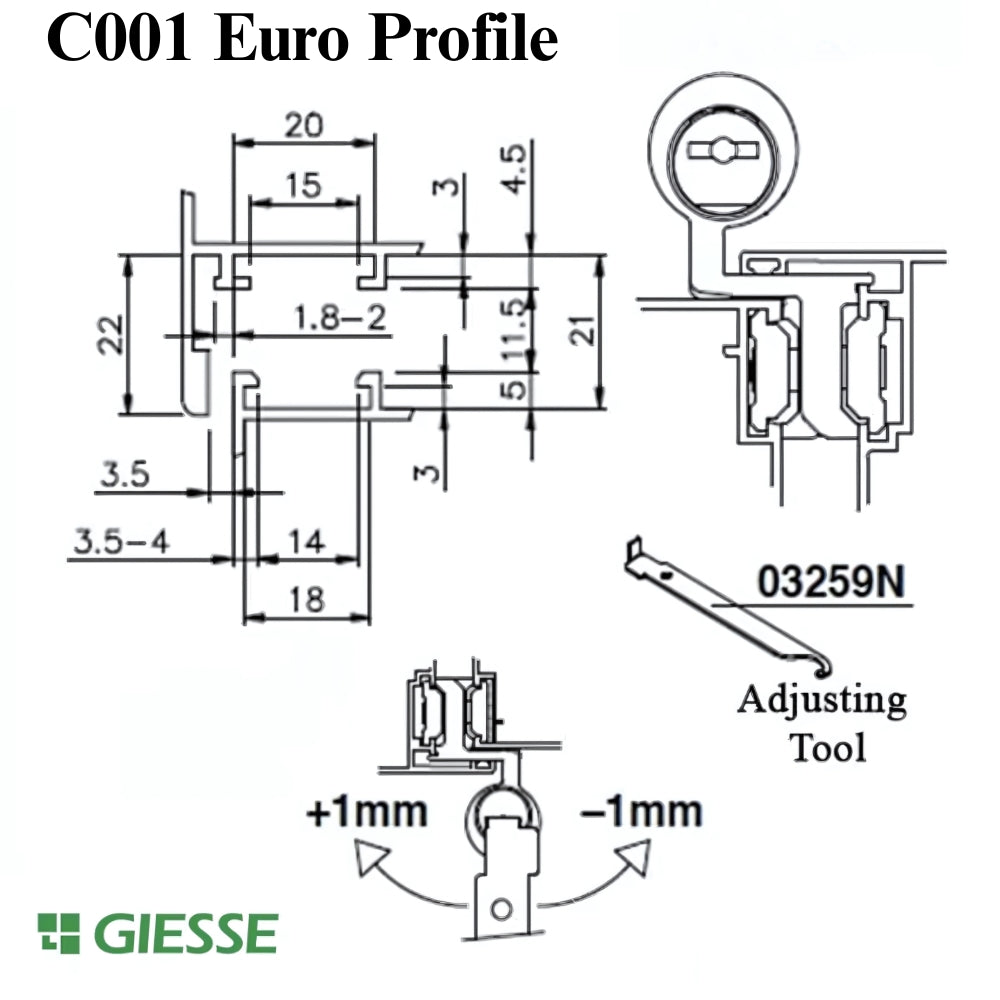

- Check all images and diagrams before ordering, as clamp hinge shapes and widths vary widely.
- Supplied preassembled for fast installation on already assembled fixtures.
This hinge is sold individually. Please measure your existing hardware carefully to ensure a correct fit before ordering.
Shipping Rates (Contiguous U.S.):
- USPS First Class: $11.95 (5–10 business days)
- USPS Priority Mail: $12.95 (3–6 business days)
- UPS Ground: $17.50 (2–5 business days)
Prices apply to most orders under 4 lbs. Heavier or bulky items may cost more. We'll always contact you for approval before adjusting shipping costs. We'll also contact you regarding shipping delays, if they occur. Need shipping to Alaska or Hawaii? Call us for a UPS quote.
Packaging & Materials
- We reuse clean packing materials when possible to reduce waste.
- Items may be shipped in plain or recycled boxes.
- Most hardware comes in bulk and may not have retail packaging.
- All items are brand new unless otherwise noted.
The TruthParts Promise
We carefully inspect all parts before shipping and add extra protection when needed. If you receive an item you didn't purchase, or if something arrives broken or blemished, we’ll repair or replace it — no hassle.
Note: Shipping fees are non-refundable.
