Stainless Steel 10" Casement Window Hinge, Del Mar/Truth 14.75 Replacement
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 55175-SS

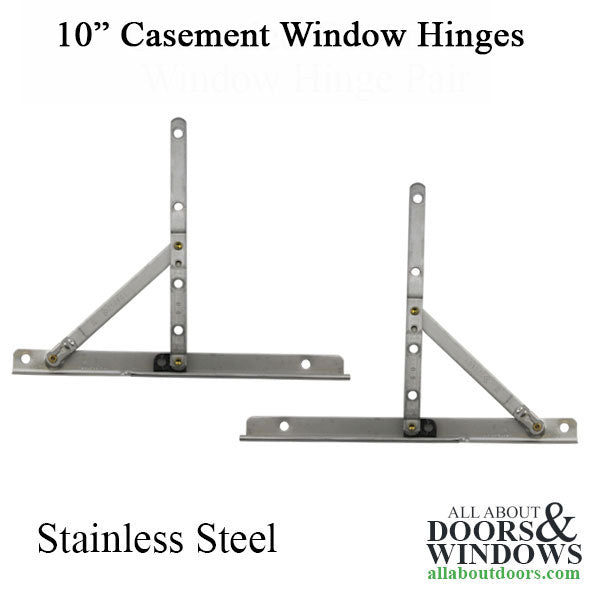

Generic Standard 10" (254.0mm) casement window hinge features a stainless steel, concealed track with a standard brass snap stud. The long link measures 7-5/8" (193.7mm) and the detachable short link is 5-1/2" (139.7mm); opening measurement is 4.9" (124.5mm). Sold as a pair for top and bottom, this part replaces Del Mar Toronto and Truth® 14.75 series; some screw holes may need to be relocated during installation.
Couldn't load pickup availability
Generic Stainless Steel 10" Casement Window Hinge
This is a generic concealed casement window hinge with a 10" (254 mm) track, designed for use in residential or light commercial vinyl window applications. Featuring a durable stainless steel construction, it offers resistance to rust and corrosion for lasting operation. The hinge includes a standard brass snap stud and consists of a longer link measuring 7-5/8" (194.0 mm) and a shorter detachable link of 5-1/2" (139.7 mm). The opening measurement is 4.9" (124.7 mm) (listed as 4-29/32").
Compatible as a direct replacement for the Del Mar Toronto Hinge used on many vinyl windows. It also functions as a replacement for the Truth® 14.75 series. This part serves as an alternative to many original brand-specific parts—please reference manufacturer fit lists for exact matches when possible.

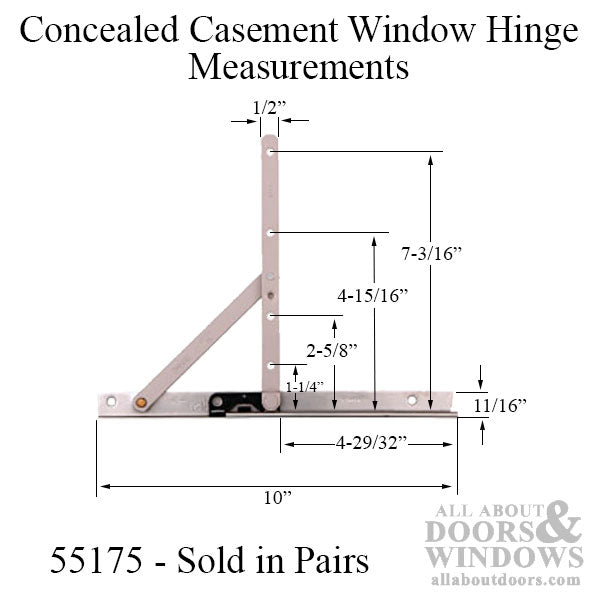

Technical Information
- Material: Stainless Steel
- Track Length: 10" (254.0 mm)
- Long Link Length: 7-5/8" (194.0 mm)
- Short Detachable Link Length: 5-1/2" (139.7 mm)

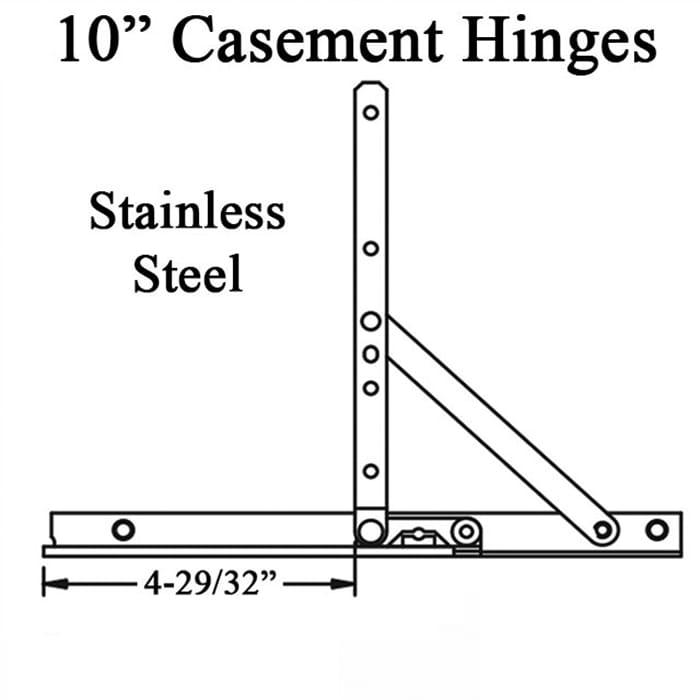

- Opening Measurement: 4.9" (124.7 mm) (4-29/32")
Notes
- Sash screw holes match original parts; only one track screw hole aligns, the other three will require relocation.
- Installation tip: Fill old screw holes and cover them with clear scotch tape before installing the new track for improved stability.
- Designed for use with many standard vinyl windows.
Replaces / Replaced by
- Truth® 14.75 series
- Del Mar Toronto Hinge

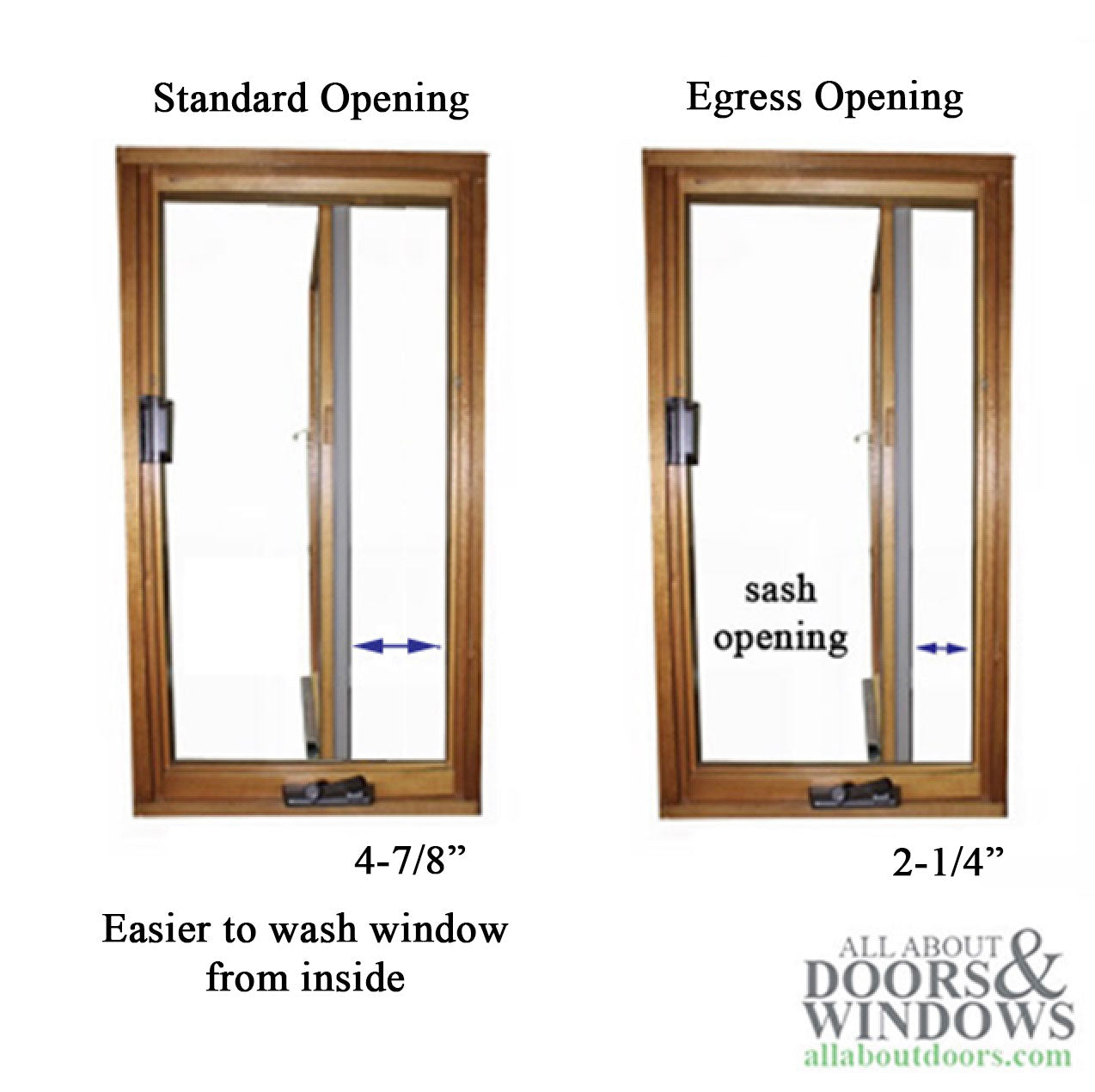

- Replacement for original part: Truth 14.77 Series Egress Casement Window Hinge & Arm Kit
Sold and priced in pairs (top and bottom hinges included per set). Please measure your existing hardware carefully and compare all dimensions to ensure the correct fit before ordering. Proper measurement is essential to reduce the risk of ordering an incorrect replacement part.
Shipping Rates (Contiguous U.S.):
- USPS First Class: $11.95 (5–10 business days)
- USPS Priority Mail: $12.95 (3–6 business days)
- UPS Ground: $17.50 (2–5 business days)
Prices apply to most orders under 4 lbs. Heavier or bulky items may cost more. We'll always contact you for approval before adjusting shipping costs. We'll also contact you regarding shipping delays, if they occur. Need shipping to Alaska or Hawaii? Call us for a UPS quote.
Packaging & Materials
- We reuse clean packing materials when possible to reduce waste.
- Items may be shipped in plain or recycled boxes.
- Most hardware comes in bulk and may not have retail packaging.
- All items are brand new unless otherwise noted.
The TruthParts Promise
We carefully inspect all parts before shipping and add extra protection when needed. If you receive an item you didn't purchase, or if something arrives broken or blemished, we’ll repair or replace it — no hassle.
Note: Shipping fees are non-refundable.
