Expressions Narrow Square Non-Keyed Sliding Door Handle – Multiple Finishes

Expressions Narrow Square Active Non-Keyed Sliding Door Handle – Multiple Finishes

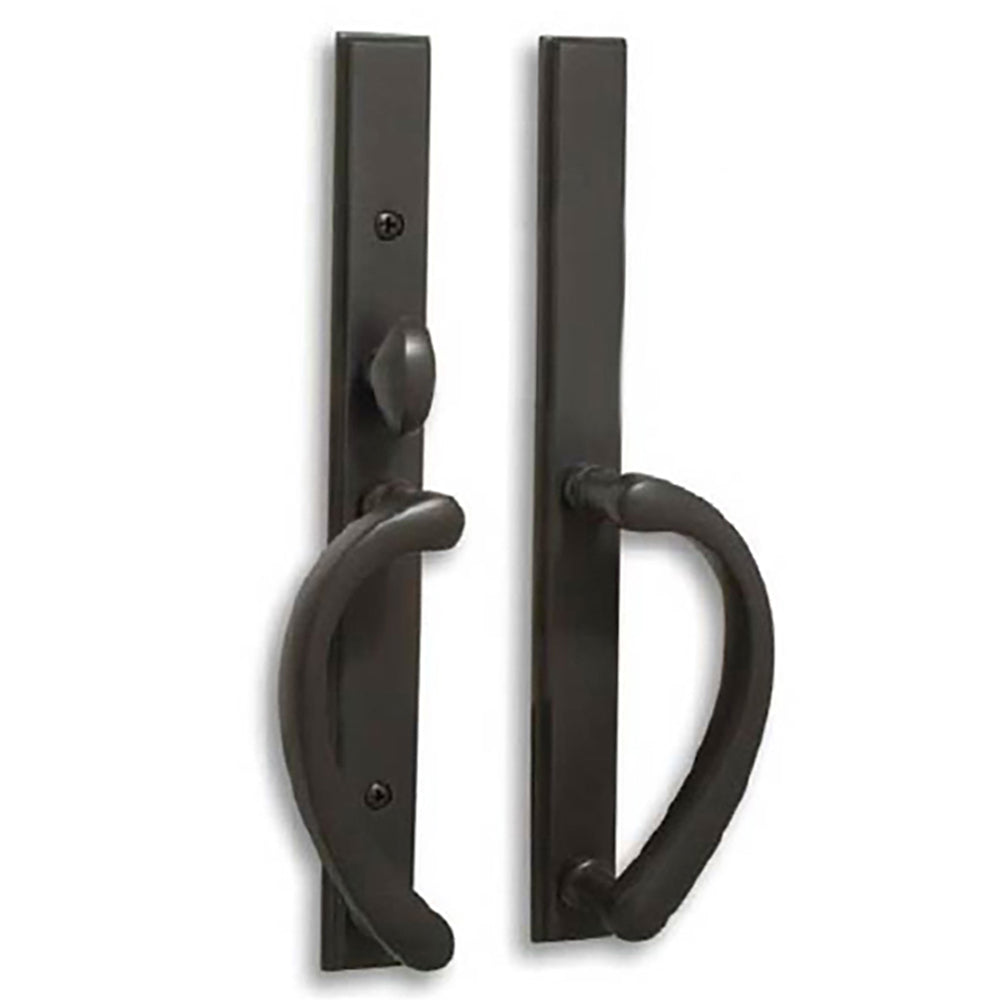

This replacement sliding door handle set features a slim, square-edged design and is intended for mortise lock-equipped patio or entry doors. The Expressions Series trim set showcases an extra-long 12" (304.8mm) escutcheon plate, helping cover screw holes or cosmetic marks left by previous hardware for a cleaner install. Its non-keyed, active handle configuration includes a thumb turn located 4-3/16" (106.4mm) from the top of the plate, suitable for most standard sliding door setups. By re-drilling two mounting holes, this handle can adapt to a variety of door brands and models—please verify all listed measurements before purchasing to ensure a proper fit.

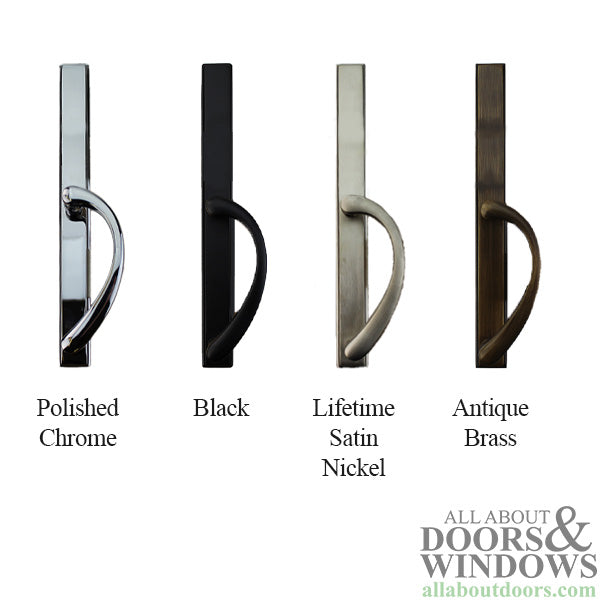

Manufactured from durable brass, this handle set is available in a variety of finishes to match or upgrade your door's appearance. Stock finish is Satin Nickel, while special order options include PVD Brass, Antique Brass, Oil Rubbed Bronze, Black, and Polished Chrome. Compatible with most doors between 1-3/4" (44.5mm) and 2-1/4" (57.2mm) thick.

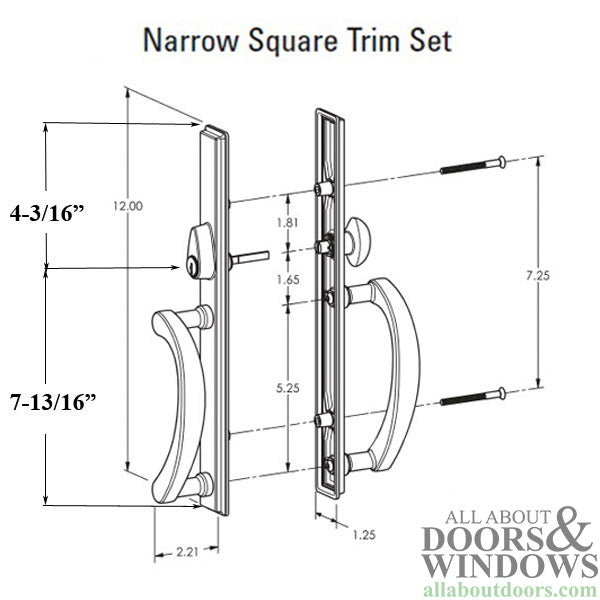

Technical Information

• Series: Expressions
• Escutcheon Plate Width: 1-1/4" (31.8mm)
• Escutcheon Plate Height: 12" (304.8mm)
• Plate Corners: Square
• Installation Screw Centers: 7-1/4" (184.2mm)
• Door Thickness Compatibility: 1-3/4" – 2-1/4" (44.5mm – 57.2mm)
• Material: Brass
• Stock Finish: Satin Nickel
• Special Order Colors: PVD Brass, Antique Brass, Oil Rubbed Bronze, Black, Polished Chrome
• Non-Keyed / Active Set: Yes
• Thumb Turn Offset: 4-3/16" (106.4mm) from top of plate

Notes

• This handle set replaces many standard mortise lock sliding door handles. Compare supplied measurements to your existing hardware to confirm compatibility, particularly with screw hole placement and overall plate coverage.
• Extra-long escutcheon plate can help cover cosmetic marks from previous handle installations.
• Vendor: Amesbury Truth Hardware

Handles are sold individually. Installation typically requires drilling two new holes to align with the included screw centers. Please carefully measure your current hardware and door preparation to ensure the correct fit before ordering.
