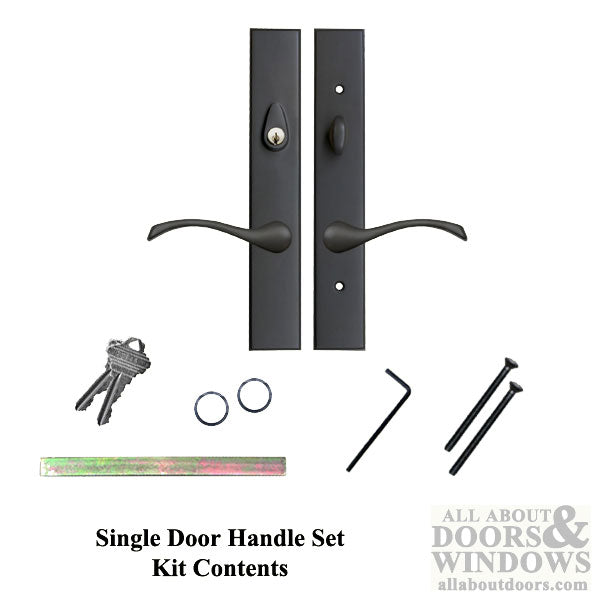

Expressions 12" Square Non-Handed Keyed Handle Set for Hinged Doors

Expressions 12" Square Non-Handed Active Keyed Handle Hardware for Hinged Doors

This Expressions 12" (304.8mm) non-handed, square, active keyed handle set is designed for hinged doors that require reliable locking functionality on both sides. It serves as a high-quality replacement option, especially for those seeking an upgrade or substitute for Marvin® active keyed handle hardware. While the original Marvin® hardware is smaller, this replacement utilizes the same installation hole spacing for a straightforward swap.

Commonly used by several well-known door manufacturers—including Ashland®, Milgard®, Marvin®, Jeldwen®, Caradco®, Cantera®, Delta®, Pella®, Pozzi®, and PGT®—this handle set supports a wide variety of replacement and retrofit needs in both residential and light commercial settings. The transitional curved lever design, combined with a modern square escutcheon plate, offers a versatile look that suits various door styles and color schemes.

Technical Information

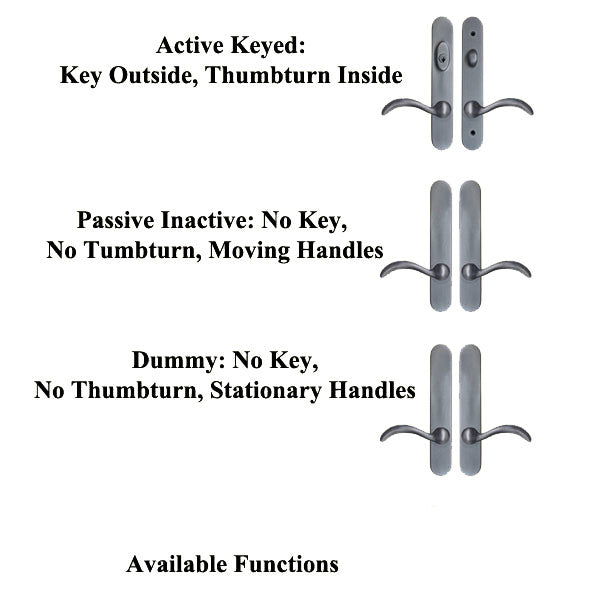

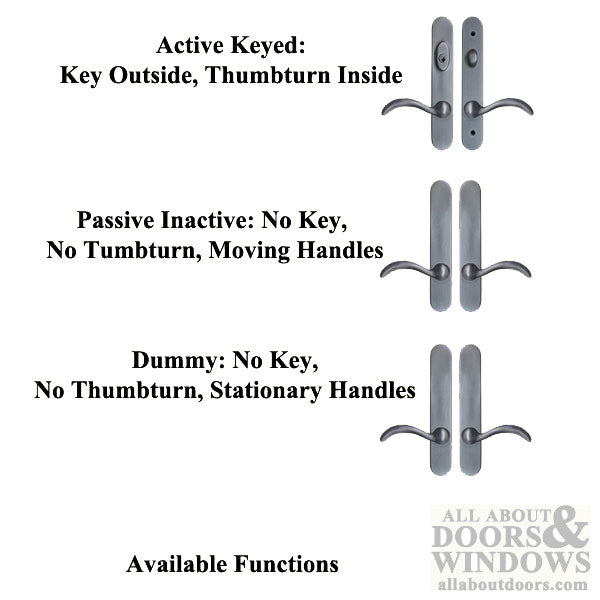

• Function: Active (Keyed from Outside, Thumbturn Inside)
• Door Configuration: #4 (American Cylinder Above Handle, Exterior Key, Interior Thumb Turn)
• Cylinder: American 5 Pin with Flat Tail Piece
• Keyway: Schlage Rekeyable, Includes 2 Keys
• Handing: Non-Handed (works for left or right-handed doors)
• Handle Style: Transitional Curved Levers
• Escutcheon Plate Style: Square Top
• Escutcheon Plate Height: 12" (304.8mm)
• Escutcheon Plate Width: 2" (50.8mm)
• Screw Hole Center: 7-1/4" (184.2mm)
• Fits Door Thickness: 1-3/4" to 2-1/4" (44.5mm to 57.2mm)

Notes

• Replacement is slightly larger than original Marvin® hardware but uses the same mounting holes.

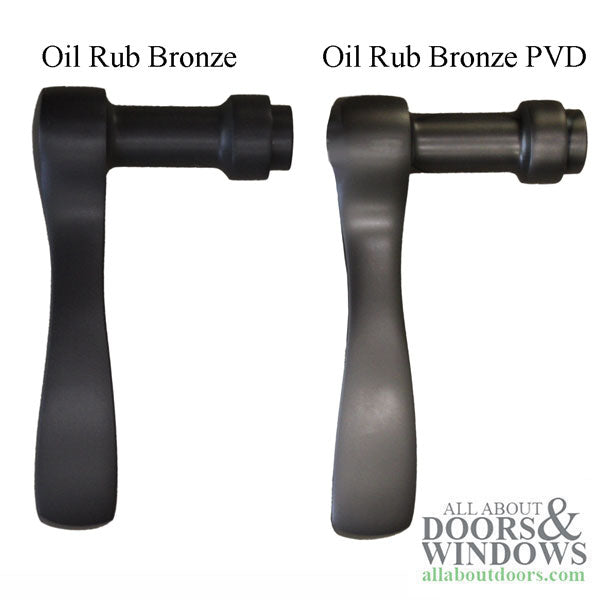

• Available in multiple finishes to match various door aesthetics (choose color when ordering).

Ensure proper measurement of your existing hardware and door dimensions before placing your order to guarantee correct fit. Double-check all measurements to reduce the risk of ordering an incorrect replacement.
