Expressions 12" Arch Non-Handed Keyed Door Handle – Marvin® Replacement

Expressions 12" Arch Active Keyed Handle Hardware – Replacement for Marvin® and Others

The Ashland® Expressions 12" Non-Handed Active Keyed Handle Hardware is designed for hinged doors that require a durable and reliable keyed entry solution. This handle set offers a quality replacement option for original Marvin® Active Keyed Handle Hardware and fits a wide range of premium patio door brands including Ashland®, Milgard®, Jeldwen®, Caradco®, Cantera®, Delta®, Pella®, Pozzi®, PGT®, and more.

Although the Expressions handle set is larger than the original Marvin® hardware, it is compatible because the installation hole spacing remains the same. This ensures straightforward installation without the need for modifying your existing door prep.

The handle hardware features a graceful arched plate and transitional curved levers, making it suitable for both traditional and modern door styles. With a non-handed design, it fits both left- and right-handed doors, offering flexibility and ease during installation. This active (keyed) version provides exterior key access and an interior thumbturn for secure and convenient operation.

Technical Information

• Plate Height: 12" (304.8mm)
• Plate Width: 2" (50.8mm)
• Hole Center: 7-1/4" (184.2mm)

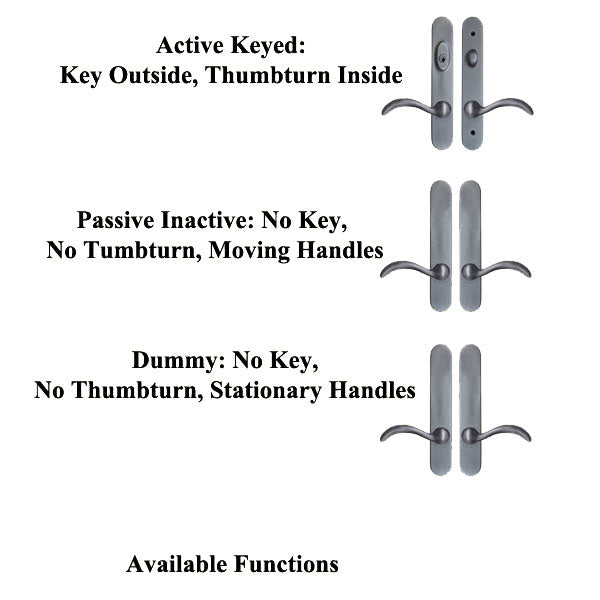

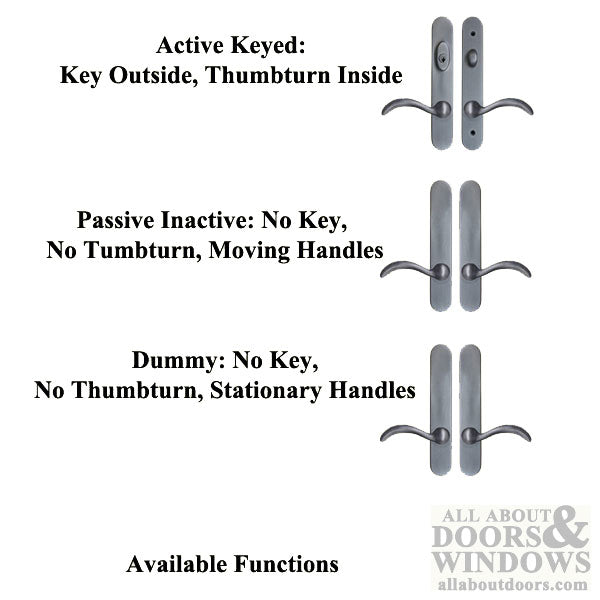

• Function: Active, Keyed with Thumbturn
• Door Configuration: #4 Cylinder Above Handle; Exterior Keyed, Interior Thumbturn
• Door Thickness: 1-3/4" to 2-1/4" (44.5mm – 57.2mm)
• Handing: Non-Handed (fits both left and right doors)
• Cylinder Type: American 5 Pin with Flat Tail Piece
• Tail Piece Length: 1-7/8" (47.6mm) with break-off at 1-3/8" (34.9mm) for 1-3/4" (44.5mm) thick doors

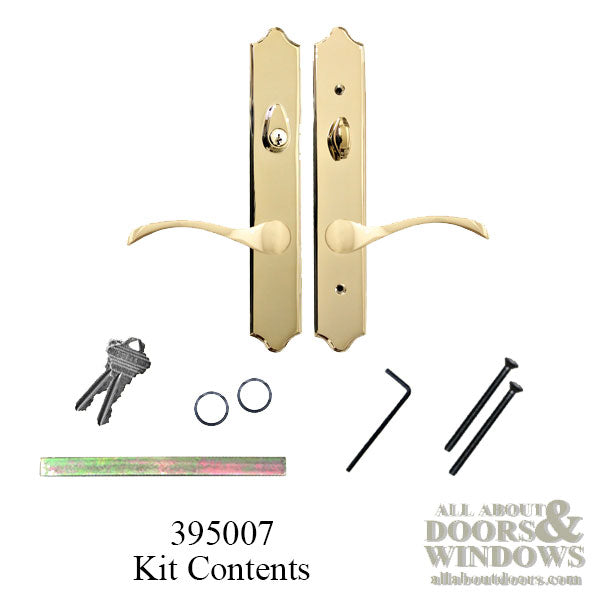

• Keyway: Schlage Rekeyable (includes 2 keys)
• Plate Style: Arch Top
• Handle Style: Transitional Curved Levers

Notes

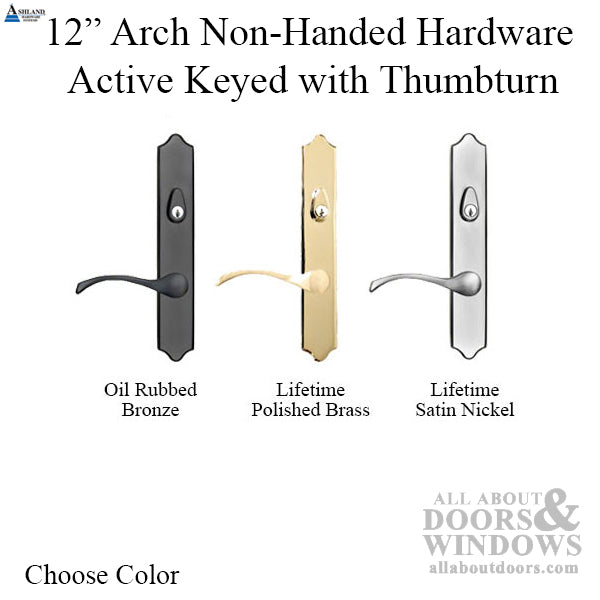

• Handle set color options available to match or update your door hardware finish.
• Compatible with a wide range of major door brands, but always compare dimensions with your existing hardware.
• The replacement handle is larger than Marvin®’s original, but uses the same mounting holes.

Each handle set is sold individually. Please measure your existing hardware and mounting dimensions carefully to ensure you select the correct replacement. Always verify key dimensions and features for a proper fit before ordering.
