Expressions 12" Arch Non-Handed Passive/Dummy Handle Set

Expressions 12" Arch Passive/Dummy Handle Set – Choose Color

This Expressions 12" non-handed handle hardware is designed for hinged doors and functions as a high quality replacement for passive/inactive or dummy handle sets. Ideal as a direct replacement for Marvin® passive/inactive or dummy handle hardware, it fits a wide range of premium hinged doors. Although the escutcheon plate is slightly larger than the original Marvin® hardware, installation is straightforward since the screw hole locations remain the same as the original hardware.

This handle set is widely used by leading door brands such as Ashland®, Milgard®, Marvin®, Jeldwen®, Caradco®, Cantera®, Delta®, Pella®, Pozzi®, PGT®, and others. Its transitional curved lever design and arched escutcheon plate contribute to a clean, contemporary look that complements most residential entry or patio doors. Matching dummy/fixing plates are included so you can easily convert passive handles to dummy handles according to your needs.

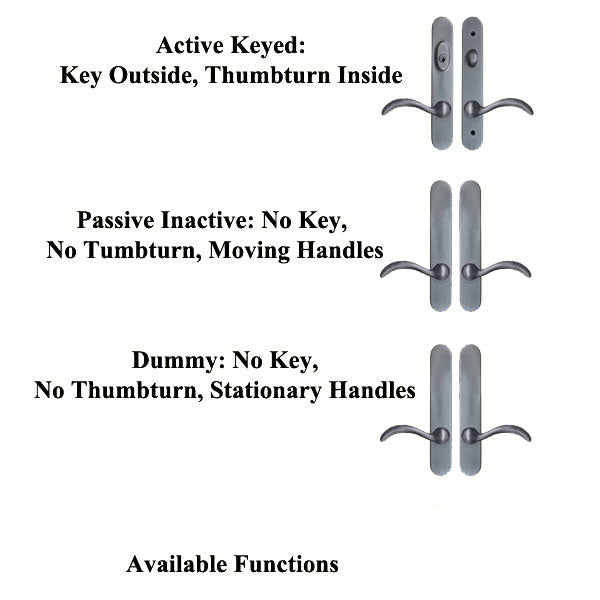

The handle set is non-handed, meaning it can be installed on left- or right-handed doors, and is suitable for both passive/inactive and dummy functions. In passive/inactive mode, the handles move but do not operate a latch. In dummy mode, the handles are fixed in place and do not move. Note: This style is not available in a non-keyed exterior with thumbturn interior configuration. For those needs, consider alternatives like 395012, 395018, or 395005.

Technical Information

• Handle Type: Non-handed
• Functions: Passive/inactive or dummy (no key, no thumb turn)
• Escutcheon Plate Height: 12" (304.8mm)
• Escutcheon Plate Width: 2" (50.8mm)
• Screw Hole Center (distance between mounting screws): 7-1/4" (184.2mm)
• Recommended Door Thickness: 1-3/4" to 2-1/4" (44.5mm – 57.2mm)
• Handle Style: Transitional curved levers
• Plate Style: Arched top
• Included: Dummy/fixing plates for conversion

Notes

• Compatible with numerous major door manufacturers listed above
• Handle set is slightly larger than original Marvin® hardware but uses the same mounting holes
• This style cannot be configured as non-keyed exterior with thumbturn interior (see alternate part numbers noted)

This handle set is sold as a complete kit with options for passive (moveable) or dummy (fixed) installation. Please measure your existing hardware and mounting hole spacing before purchasing to ensure correct fit on your door.
