10" Arch Non-Keyed Active Handle Set for Hinged Doors

Elegance 10" Arch Non-Keyed Active Handle Hardware for Hinged Door

This non-keyed active handle set provides a versatile replacement solution for hinged doors, with a 10" (254mm) arched plate to suit a variety of residential and light commercial installations. Designed for compatibility with doors from manufacturers such as Ashland®, Milgard®, Marvin®, Jeldwen®, Caradco®, Cantera®, Delta®, Pozzi®, and PGT®, it allows you to restore or update the look and function of your door hardware without extensive modifications.

While compact and visually streamlined, this set matches the installation hole spacing of original Marvin handlesets but is smaller. If replacing a Marvin handle, double-check that the new handle will adequately cover any marks left by the previous hardware. For wider coverage, consider the larger 2" x 12" handle set.

This hardware is suitable for both single and double door configurations and supports active operation without keying (no external key cylinder), featuring an interior thumb turn. Non-handed design means it can be installed on either left or right-handed doors. Standard hardware fits doors 1-3/4" (44.5mm) thick, with options for thicker doors available upon request.

Technical Information

• Plate Height: 10" (254mm)
• Plate Width: 1-3/4" (44.5mm)
• Plate Style: Arch Top

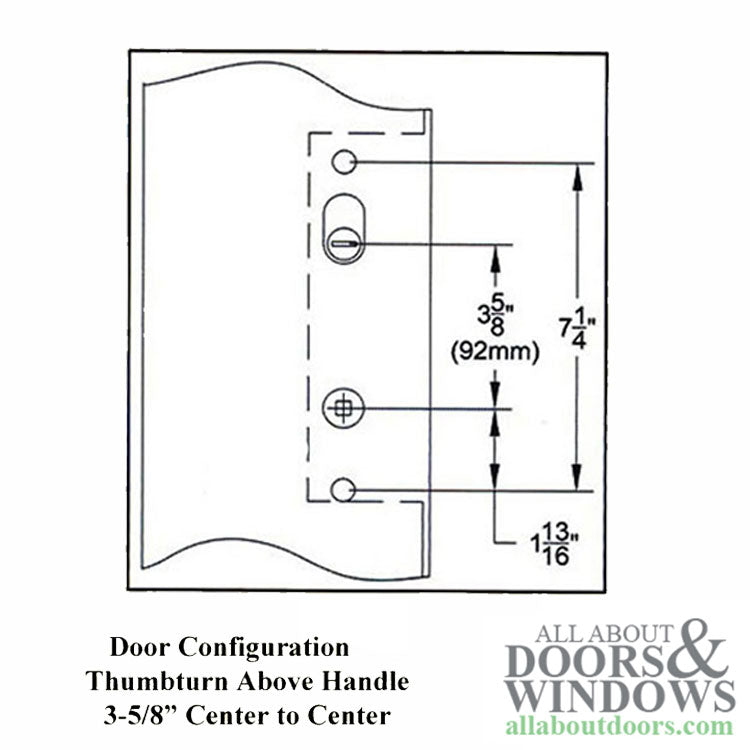

• Screw Hole Center: 7-1/4" (184mm)

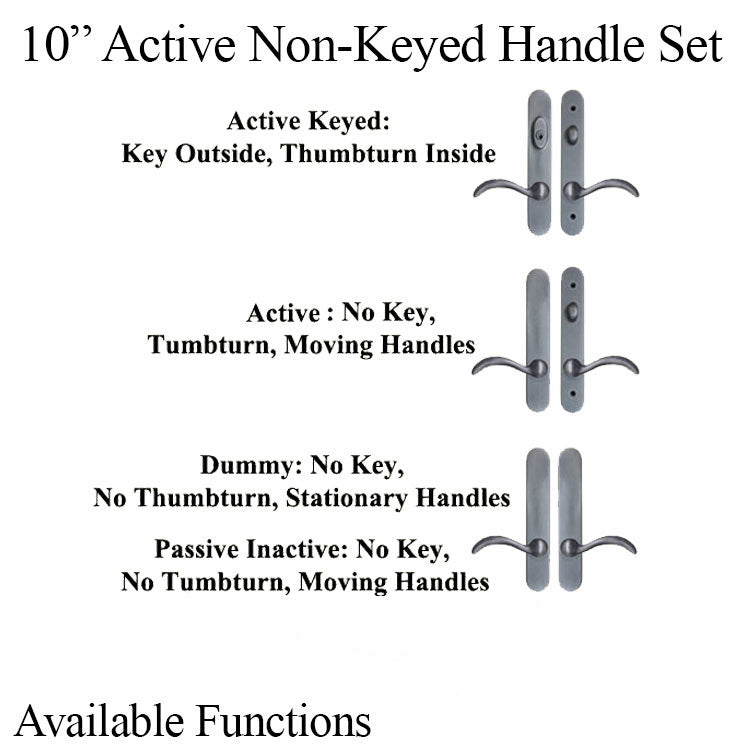

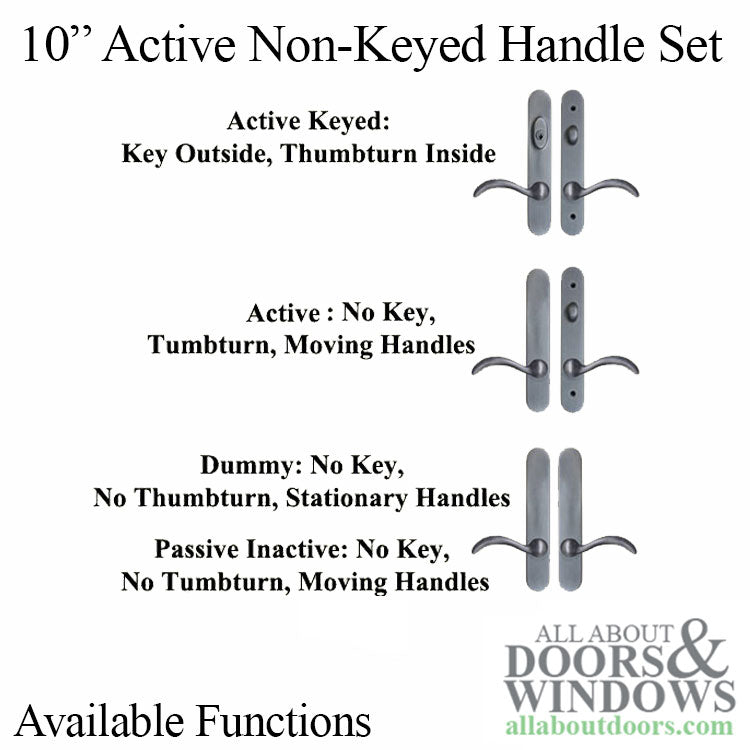

• Function: Active non-keyed, interior thumb turn
• Door Configuration: For single or double active doors
• Door Thickness: 1-3/4" (44.5mm) standard – contact us for thicker doors
• Handing: Non-handed (fits left or right-handed doors)
• Handle Style: Traditional or Transitional curved levers
• Finish Options: Satin Nickel, Oil Rubbed Bronze, PVD Lifetime Polished Brass (additional finishes by special order, 2 weeks)

Notes

• For best results when replacing Marvin handlesets, review the existing trim and marks – the original hardware is larger than this replacement.
• If wider trim coverage is required, refer to the 2 x 12 handle set.
• Special order finishes are available on request; please allow 2 weeks lead time.

Each handle set is sold individually. Please confirm all measurements and review your existing hardware to ensure compatibility and proper fit before placing your order. Always measure your existing hardware carefully to ensure you select the correct replacement.
