Elegance 10" Arch Keyed Active Handle Set for Hinged Doors

Elegance 10" Arch Keyed Active Handle Set for Hinged Doors

This 10" keyed handle set is designed for active hinged doors, providing secure locking and a classic arched look. Compatible with many major brands, including Ashland®, Milgard®, Marvin®, Jeldwen®, Caradco®, Cantera®, Delta®, Pozzi®, and PGT®, it offers a versatile solution for new installations or as a replacement for worn or outdated hardware.

The handle set features a traditional or transitional curved lever style, with a choice of finishes: Satin Nickel, Oil Rubbed Bronze, or PVD Lifetime Polished Brass. Other custom finishes are available by special order within 2 weeks. The American-style cylinder has a 5-pin tumbler and comes with 2 keys using a Schlage SC1 keyway, ensuring reliability and security. This hardware is non-handed, making it suitable for both left and right handed doors. It is designed for doors with a standard thickness of 1-3/4" (44.5mm), though hardware for thicker doors is available if needed.

If you are replacing Marvin hardware, please note this replacement plate is slightly smaller than the original Marvin hardware, although the existing installation holes are the same. For full coverage of any marks left by the previous setup, the larger 2 x 12 size is recommended. Please check that the new trim will cover any visible marks from the previous hardware before installing.

Technical Information

• Plate Height: 10" (254.0mm)
• Plate Width: 1-3/4" (44.5mm)
• Plate Style: Arch Top

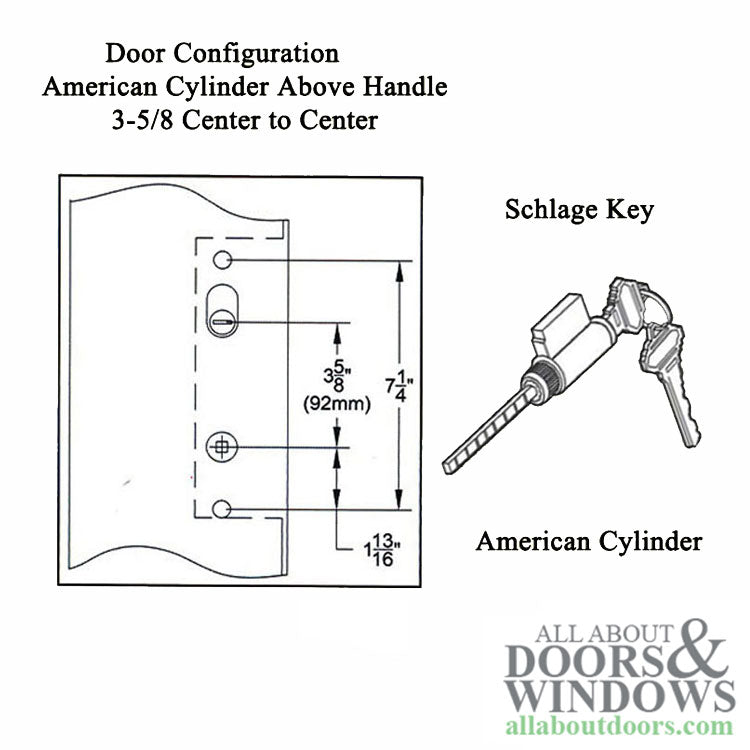

• Screw Hole Center: 7-1/4" (184.2mm)

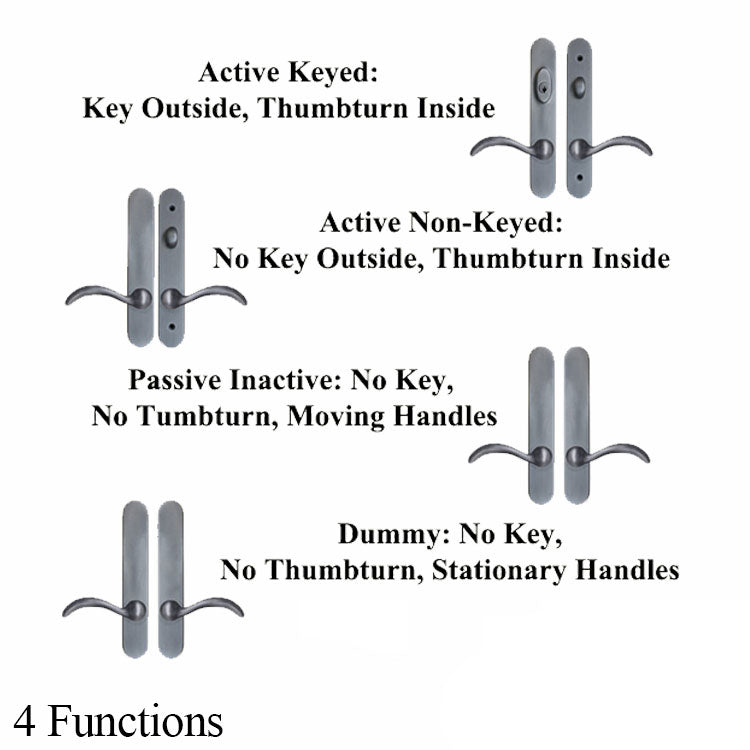

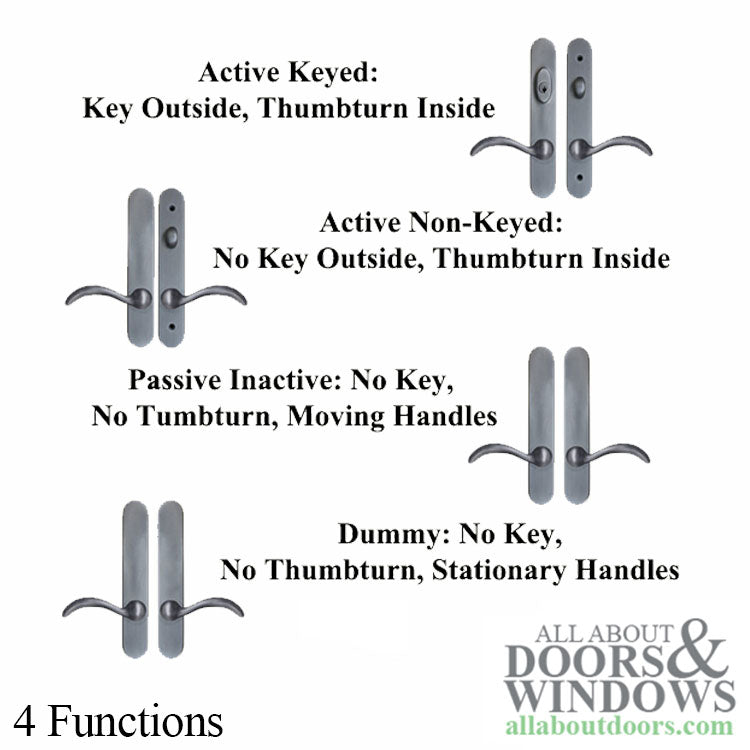

• Function: Active Keyed with Thumb Turn
• Door Configuration: Single or double active door
• Door Thickness: 1-3/4" (44.5mm) standard
• Handing: Non-handed (fits both left and right handed doors)

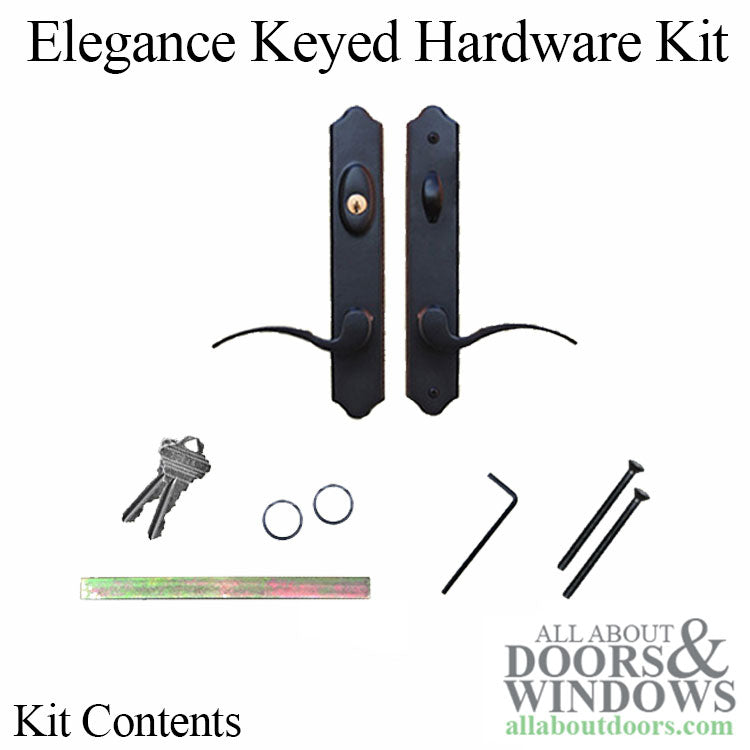

• Cylinder: American style with flat tail piece, 5-pin tumbler, 2 keys
• Keyway: Schlage SC1
• Handle Style: Traditional/Transitional curved levers
• Finish Options: Satin Nickel, Oil Rubbed Bronze, PVD Polished Brass (special order finishes available in 2 weeks)

Notes

• Compatible with Ashland®, Milgard®, Marvin®, Jeldwen®, Caradco®, Cantera®, Delta®, Pozzi®, and PGT®, among others.
• If replacing larger original Marvin hardware, check if this plate will cover existing marks; otherwise, consider the larger 2 x 12 size.
• Special order finishes available with a lead time of 2 weeks.

Sold individually. Please measure your existing hardware and installation holes carefully to ensure the correct fit before ordering. Always confirm measurements to prevent returns and ensure a proper fit.
