Left Hand Dyad Operator, Rear Mount, 5" Screw Spacing for Vinyl Casement Windows
- Regular price
- $37.46
- Regular price
-
- Sale price
- $37.46
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 55113-CBRZ
Truth® Dyad casement operator with 5" (127.0mm) rear screw hole spacing and 5" (127.0mm) link length, for left-hand vinyl windows. Includes removable clip under 4-1/2" (114.3mm) Truth link #30866; used by Alcoa on vinyl casement models. Does not include crank handle, screws, or mounting bracket; operator only—choose from White, Medium Bronze, or Chestnut Bronze.
Couldn't load pickup availability
Dyad Operator, Rear Mount, 5" Screw Hole Spacing, Left Hand – For Vinyl Casement Windows (Choose Color)

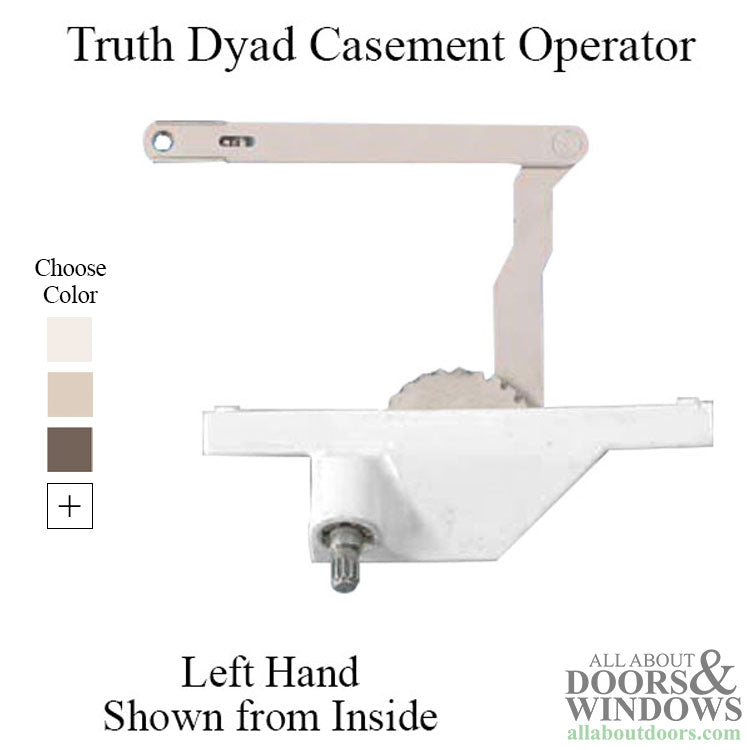

This Dyad operator is designed for use on vinyl casement windows and is manufactured by Amesbury Truth Hardware. The operator mounts at the rear with 5" (127mm) screw hole spacing, and features a left hand configuration (as shown from the inside). It is commonly used by Alcoa on their vinyl casement window models.

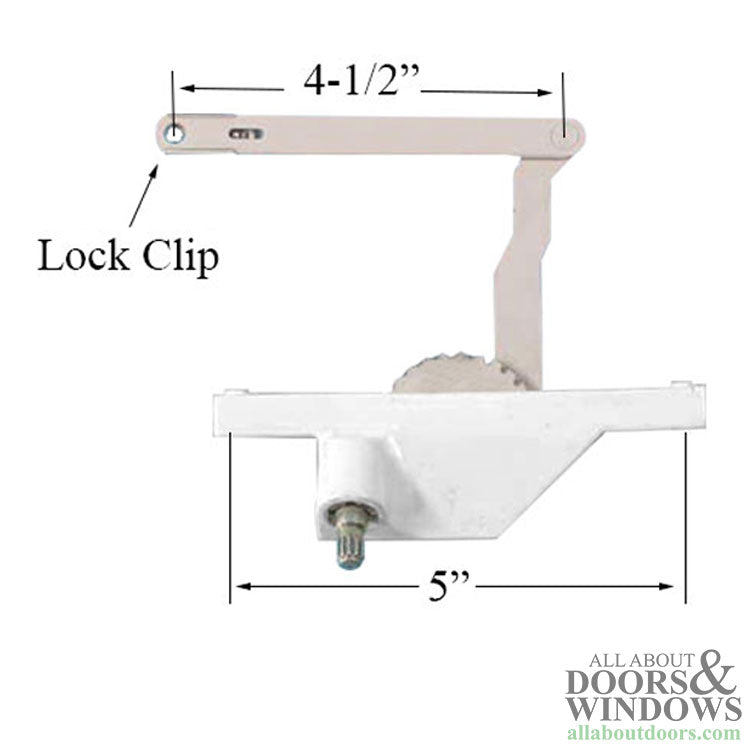

The mechanism includes a 4-1/2" (114.3mm) link identified as Truth link #30866. The link's retaining clip comes pre-installed on the underside, but it can be removed and placed on top if needed for compatibility or personal preference. The operator is made from mixed materials to offer a blend of durability and reliable function.
This is a replacement operator only and does not include the crank handle or mounting bracket; you will need to retain or source those components separately. Please note, mounting screws are also not included with the operator.
Technical Information
- Operator Type: Truth Dyad
- Material: Mixed Materials
- Mounting Screws: 5" (127mm), rear mount
- Link Length: 5" (127mm)
- Link Holes: 4-1/2" (114.3mm)
- Handing: Left Hand (as shown from inside)
Notes
- Primarily used by Alcoa on vinyl casement windows.
- Link clip is installed on the underside by default; can be repositioned to the top.
- Available in White, Medium Bronze, and Chestnut Bronze.
- Sold individually (each): operator only, no crank handle, mounting screws, or bracket included.
To ensure the correct fit, please carefully measure your existing hardware, including screw hole spacing, link length, and handing, before ordering. Always verify your measurements for accurate replacement.
