Dummy Handle Set 800C for Multipoint Locks – Solid Brass

Dummy Handle Set 800C for Multipoint Locks – Solid Brass

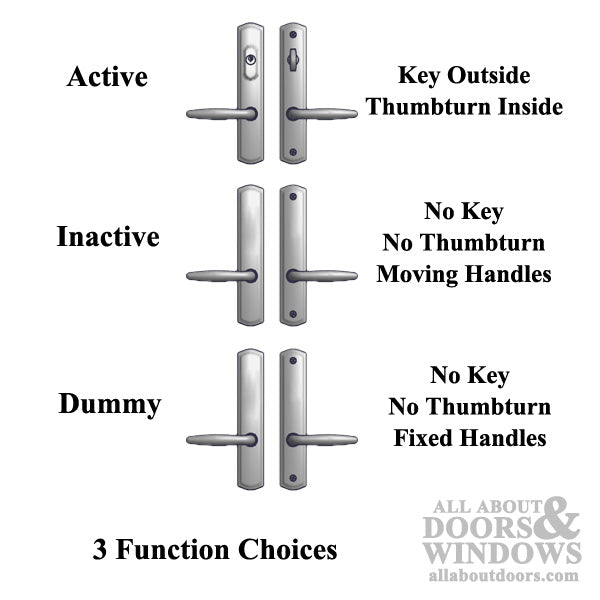

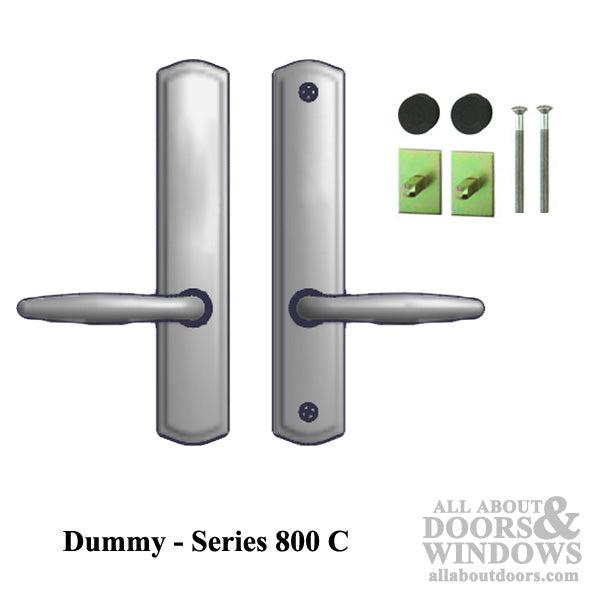

This is a non-keyed, fixed dummy handle set designed for use on the inactive leaf of a double door equipped with a multipoint lock system. The Amesbury® 800C Regency series features a straight lever and an escutcheon plate with a slight arch at the top, matching common American multipoint lock trim.

Compatible with doors that originally used Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American®-style multipoint locks, this set is engineered as an easy replacement or upgrade. Handles are fixed (do not operate or move) and there is no provision for a key or thumbturn, making it ideal for dummy door applications where only appearance and a consistent look are needed. This hardware can be paired alongside active handlesets that feature key or thumbturn functions, either above or below the handle, depending on your main door configuration.

The base material is sturdy zinc with a durable solid brass trim. Multiple finishes are available—including Satin Nickel PVD (recommended for coastal areas due to high resistance to tarnish and discoloration), Vision Tan, Pebble, and Dark Oil Rubbed Bronze—ensuring both durability and a consistent look with your existing hardware.

Technical Information

• Application: Dummy Handleset (no key, no thumbturn, handles do not move)
• Handed: Non-handed (fits left or right hand doors)
• Base Material: Zinc substrate with solid brass trim
• Door Thickness: 1-3/4" (44.5mm)
• Escutcheon Plate: C Style, slight arch top
• Plate Width: 1.79" (45.5mm)
• Overall Plate Height: 9.47" (240.5mm)
• Screw Hole Spacing: 7.87" or 7-7/8" (199.9mm)
• Handle to Cylinder: 3.62" or 3-5/8" (92mm)
• Handle Projection: 1.23" (31.2mm)
• Handle Clearance: 2.00" (50.8mm)
• Handle Length: 4.72" (120mm)
• Finishes: Satin Nickel PVD, Vision Tan, Pebble, Dark Oil Rubbed Bronze

Notes

• PVD (Physical Vapor Deposition) finish is recommended for coastal areas for high resistance to tarnish and discoloration.
• Designed for use with American-style multipoint lock systems. Replaces many original trims from Marvin®, Milgard®, G-U / Ferco®, and others.
• Check product finish availability when selecting your handle set.

Replaces / Replaced by

• Replaces Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American version multipoint lock handle trims.

Sold individually. Please measure your existing hardware and door setup carefully to ensure correct fit before ordering. Double-check all measurements and compare plate/handle dimensions to your existing hardware prior to purchase.
