Left Hand Dummy Handle Set – 100 Series Lever, C Plate

Dummy Handle Set – 100 Series Lever, C Plate, Left Hand

This non-operational, fixed lever handle set is designed specifically for patio doors using the 100 Series Regency system with an arched "C" style escutcheon plate. Commonly used as dummy trim on inactive door panels, it offers a seamless appearance without a keyway, cylinder, or thumb turn. The left-hand orientation makes it suitable for doors where only a single side needs a matching handle.

Manufactured for compatibility as replacement hardware on doors from major brands such as Amesbury®, Marvin®, Milgard®, and others, this dummy handle set is ideal for those seeking to match the original look and feel of their patio or entry doors. Available in zinc for standard use and a durable brass substrate PVD finish for enhanced corrosion resistance in coastal settings; the PVD finish is specifically engineered to resist tarnishing and discoloration over time.

The handle attaches to the escutcheon plate with a circlip (C-ring), and handing can be changed as needed, allowing for greater versatility in installation and orientation. The design does not include a keyed lock or functional thumb turn—it is intended solely for cosmetic or pull purposes on non-latching doors.

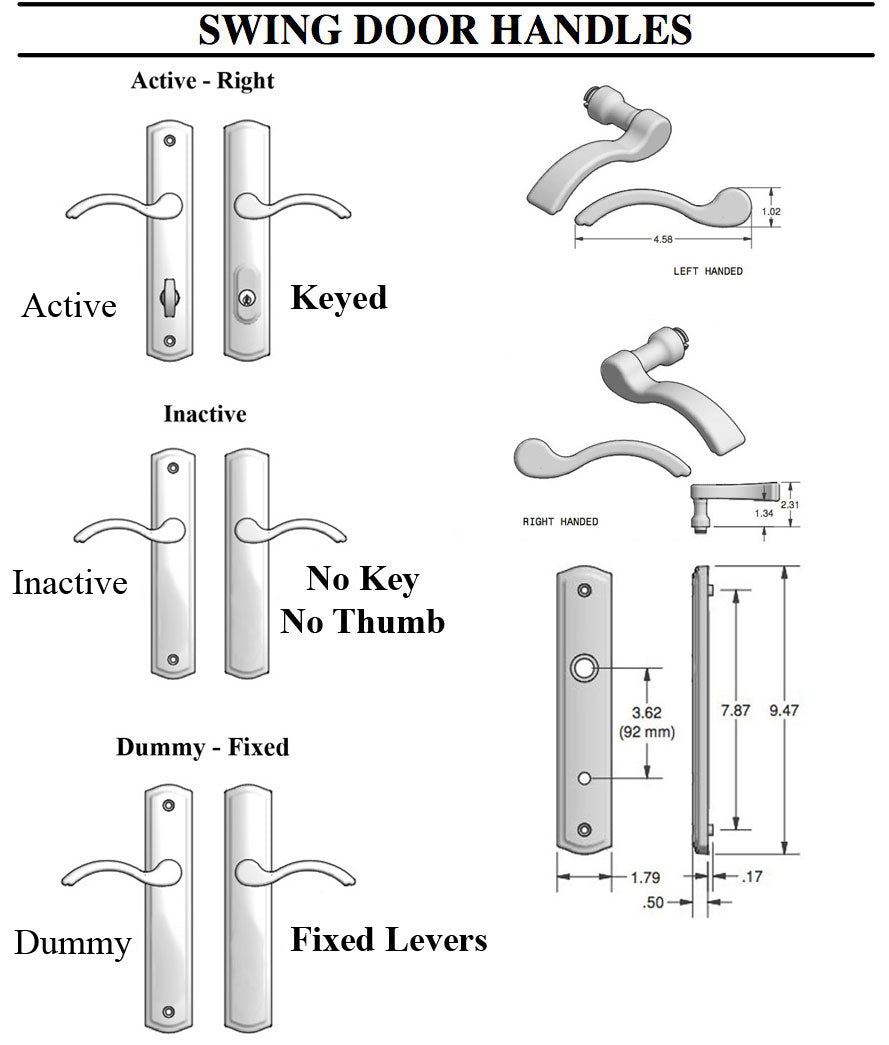

Technical Information

• Escutcheon Plate: C Style with arched top
• Material: Zinc (standard); Brass substrate with PVD finish (optional, for coastal use)
• Handed: Left Hand (handing reversible by disassembling lever from plate)
• Actual Plate Width: 1-25/32" (45.5mm)
• Overall Plate Height: 9-15/32" (240.5mm)
• Escutcheon Screw Hole Spacing: 7-7/8" (199.9mm)
• Handle Projection: 2-5/16" (58.6mm)
• Handle Clearance: 1-11/32" (34mm)
• Handle Length: 4-37/64" (116.3mm)
• Handle to Cylinder (dummy): 3-5/8" (92mm) spacing
• Cylinder Type: None (dummy trim)
• Keyway: None
• Thumb Turn: None

Notes

• PVD finish available for customers in coastal or high-humidity areas
• Compatible with a variety of manufacturers including Amesbury®, Marvin®, Milgard® and others
• Escutcheon plate features a subtle arch for an updated appearance

Sold as a single dummy trim set. Please carefully measure your existing hardware and mounting points to ensure proper replacement and compatibility before ordering.
