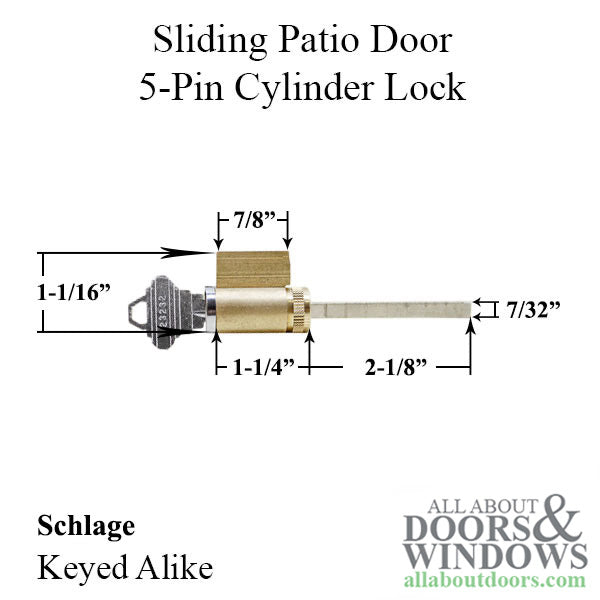

5-Pin Keyed Alike Cylinder Lock for Sliding Patio Doors

Cylinder Lock for Sliding Patio Door – 5-Pin Tumbler, Keyed Alike

This American-style 5-pin tumbler cylinder lock is designed for use with sliding patio doors, making it an ideal solution for homeowners and professionals replacing or upgrading their lock hardware. The cylinder fits the most common sliding door applications and is compatible with deadbolts, single-point, and multipoint locks found on leading brands such as Andersen®, Peachtree®, and Pease®.

The lock features a Schlage SC-1 rekeyable keyway, allowing for future re-keying if needed, and comes factory-keyed alike so multiple locks purchased together will operate with the same key. The hardened tailpiece measures 2-1/8" (54.0mm) and is adjustable, featuring grooves for breaking off to fit shorter tailpiece requirements. This hardware accommodates doors up to 1-3/4" (44.5mm) thick, offering flexibility for a range of residential doors.

Each set is priced individually and includes one cylinder lock and two matching keys. The lock arrives ready for straightforward installation and is suitable for direct replacement of most OEM sliding patio door cylinder locks.

Technical Information

• Keyway: Schlage SC-1, 5-pin, rekeyable
• Keying: Keyed Alike (KA)

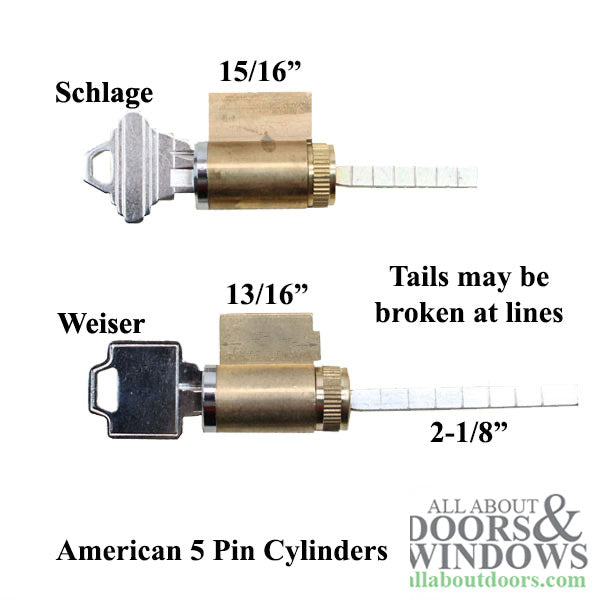

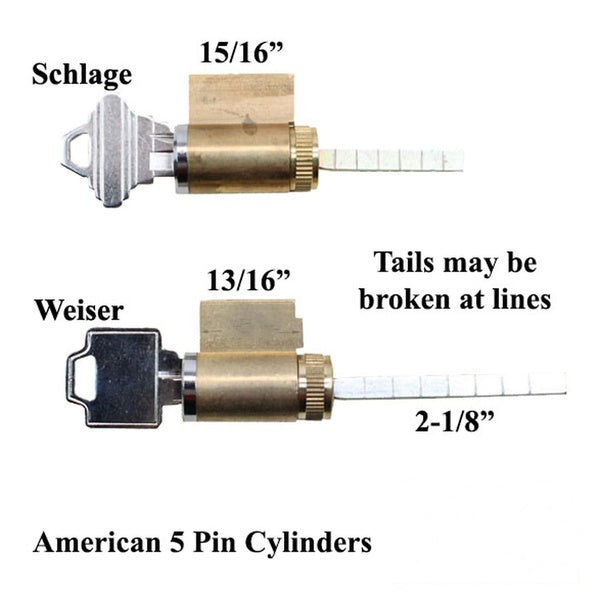

• Tailpiece Length: 2-1/8" (54.0mm), adjustable with break-off grooves
• Door Thickness Compatibility: Up to 1-3/4" (44.5mm)
• Number of Keys Included: 2

Notes

• Compatible with Andersen®, Peachtree®, Pease®, and other major brands.
• Contents: 1 sliding door cylinder lock and 2 keys.
• Sold individually (priced per lock).

Please measure your existing lock and door thickness carefully before ordering to ensure the correct fit.
