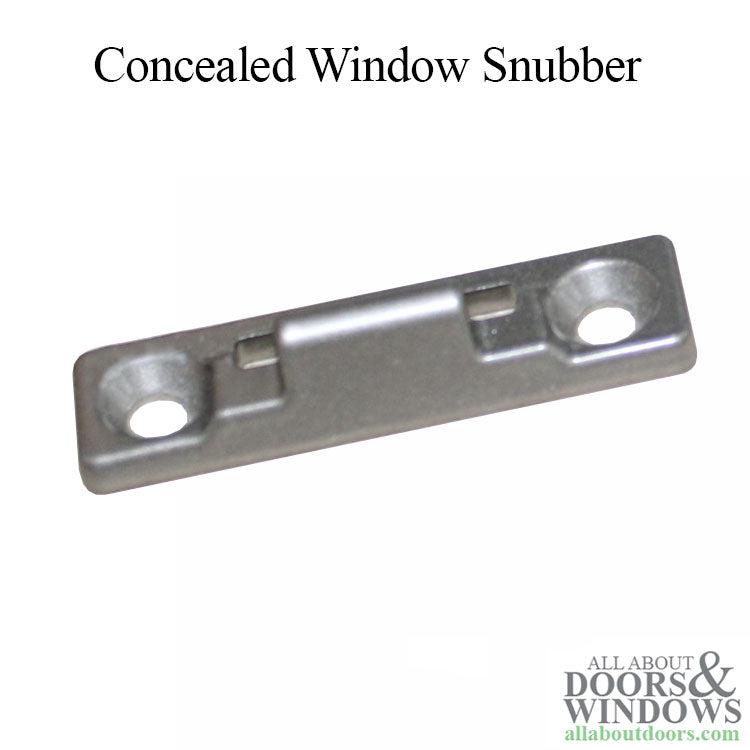

Concealed Window Snubber, Die Cast

Truth® Window Snubber, casement sash anti-bow, Frame Mount Concealed

Window snubbers are used on tall casement and wide awning windows to prevent the sash from bowing.
Snubbers are installed at the center of the hinge side on any window which has a tendency to bow outward at the center when in the closed position.
Used by Weather Shield® on the Pro Shield windows, Alliance and Integrity Casement and Awning
any many other companies

Truth® Hardware part number 22999
Weather Shield® Part Number 940409

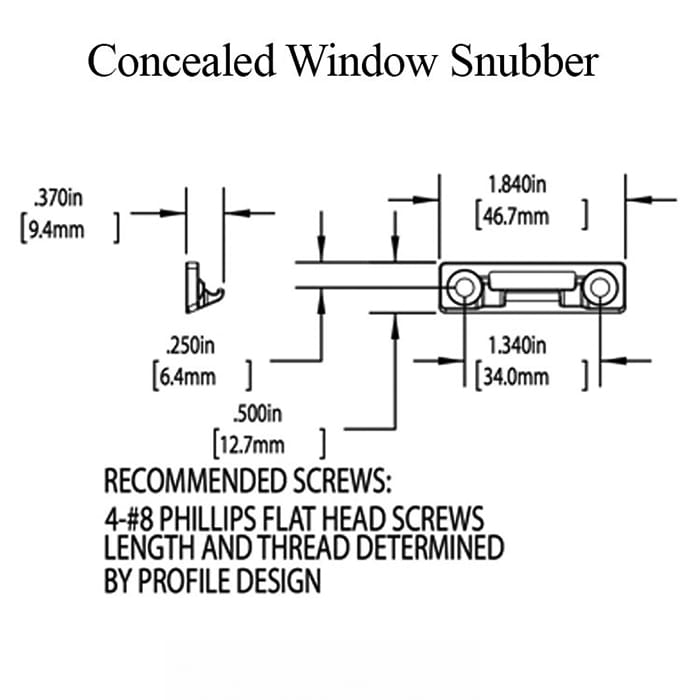

Screw Holes: 1- in. (34mm) 1.34
Width: 1/2 in. (12.7mm) .500
Length: 1-13/16 in. (46.7mm) 1.840
Height: 3/8 in. (9.4mm) .370
Material: Die Cast
