Right Hand Offset Down Link #20810 Casement Operator

Truth EntryGard® Right Hand Casement Operator with Offset Down Link #20810

This Right Hand Casement Operator is designed for EntryGard® casement windows and is manufactured by Amesbury Truth Hardware. It features a sill-mounted, dual-arm mechanism with a gold spline, making it suitable for smooth and reliable window operation. The operator is intended for use with windows that require a right-handed crank, determined by the side the hinge is on when viewed from the outside.

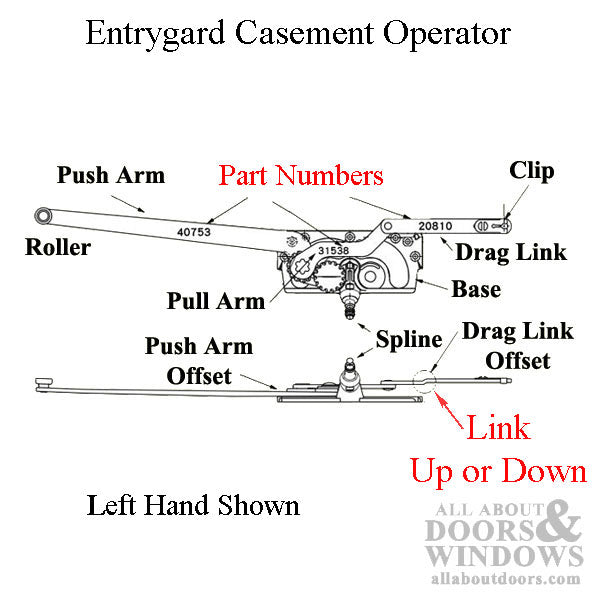

This model comes with a straight main arm measuring 10-1/2" (266.7mm) from the center of the operator to the edge of the button, paired with an offset down link arm that is stamped with link number 20810 or 20544. The offset link design makes it an ideal replacement for specific EntryGard® applications.

The roller is made from durable nylon for smooth sliding action and measures 9/16" (14.3mm) in diameter and 3/16" (4.8mm) thick. The dual-arm setup provides enhanced stability and control when opening or closing the window.

Technical Information

• Main Arm Length: 10-1/2" (266.7mm)

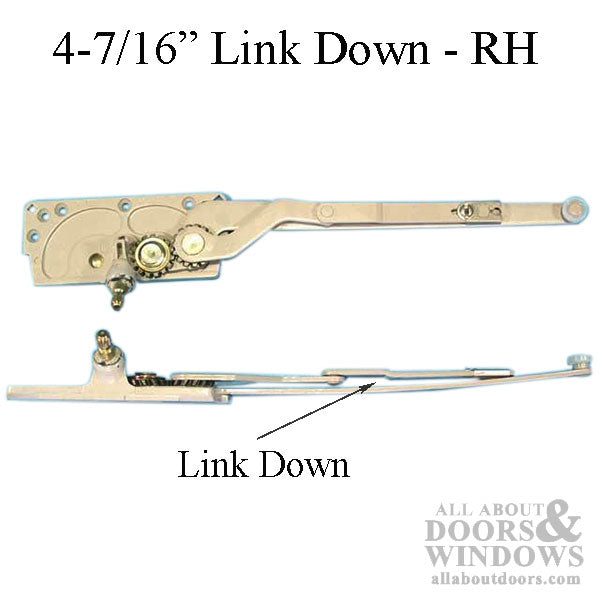

• Link Length: 4-7/16" (112.7mm), offset down
• Roller Material: Nylon
• Roller Diameter: 9/16" (14.3mm)
• Roller Thickness: 3/16" (4.8mm)
• Handing: Right Hand
• Link Stamp Number: 20810 or 20544
• Manufacturer: Amesbury Truth Hardware

Notes

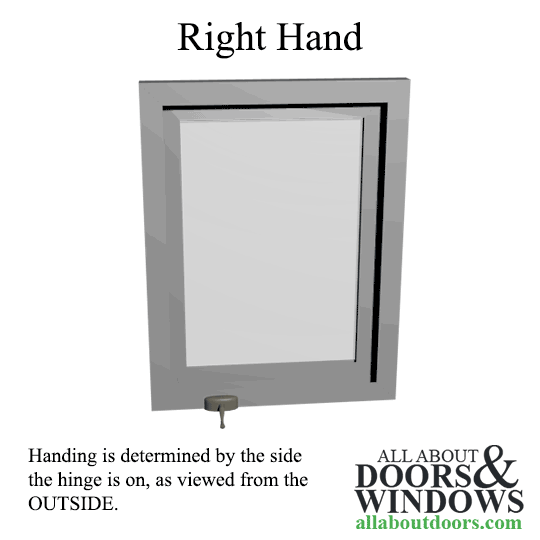

• Handing is determined by the hinge side when viewed from outside.
• Fits windows using a right-hand, sill-mount, dual-arm operator with a down-offset link.

Please measure your existing hardware and compare all dimensions, including arm lengths and link orientation, to ensure correct fit before ordering. Ensuring all measurements match will help avoid returns and ensure you receive the right replacement part.
