Ashland XP25 3-Point Shootbolt Multipoint Lock, 60mm Backset

Ashland XP25 3-Point Shootbolt Multipoint Lock, 60mm Backset

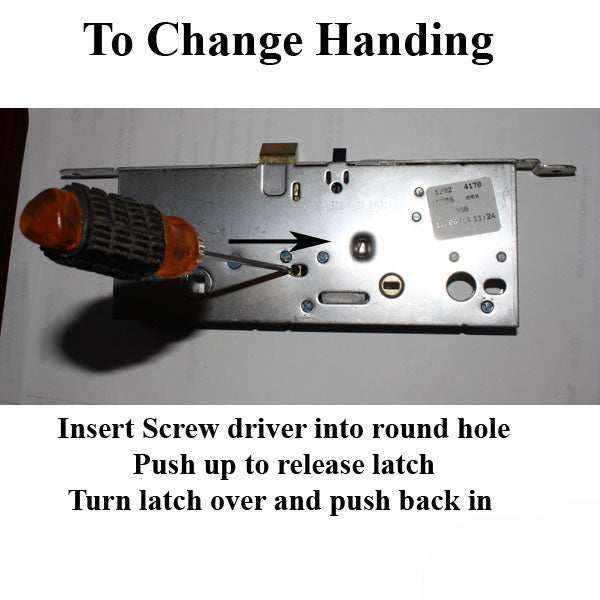

This is the center gearbox section of the Sentinel Swing Multipoint XP25 3-point lock by Ashland. Designed for enhanced security, this multipoint lock features a deadbolt and spring latch mechanism and is specifically engineered as one of three interconnected components in the full multipoint lock system. It is commonly used in residential and light commercial swing doors manufactured by Jeldwen, Caradco, Therma-Tru, and other leading brands. The center section works as the core locking point, providing robust locking action at multiple positions for improved door integrity.

Fabricated from durable stainless steel, this Ashland center multipoint gearbox delivers both corrosion resistance and long life. The handle location is set for configurations where the key is positioned above the handle. Suitable for doors requiring a 60mm (2-3/8") backset and a 25/32" (20mm) wide faceplate, this replacement part fits select Sentinel Swing doors and helps restore secure function to aging or damaged units. Uses for this product typically include door repairs or upgrades where a compatible three-point lock mechanism is needed.

Technical Information

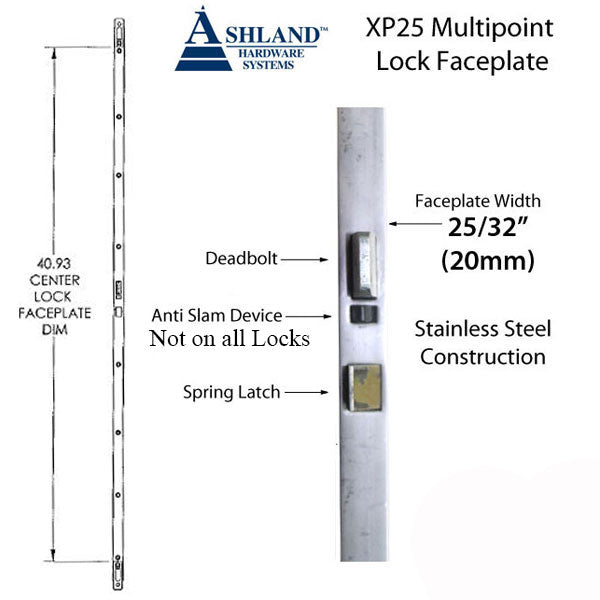

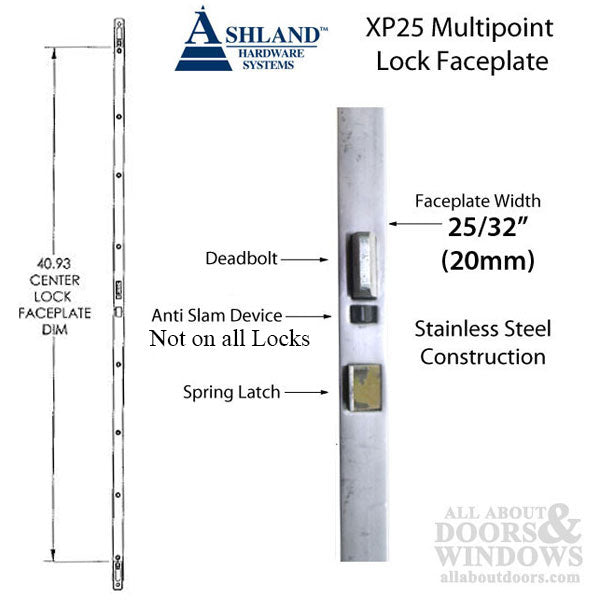

• Center lock faceplate: 40-15/16" (1040mm)
• Overall length (retracted/unlocked): 44" (1117mm)
• Overall length (extended/locked): 45-1/2" (1155mm)

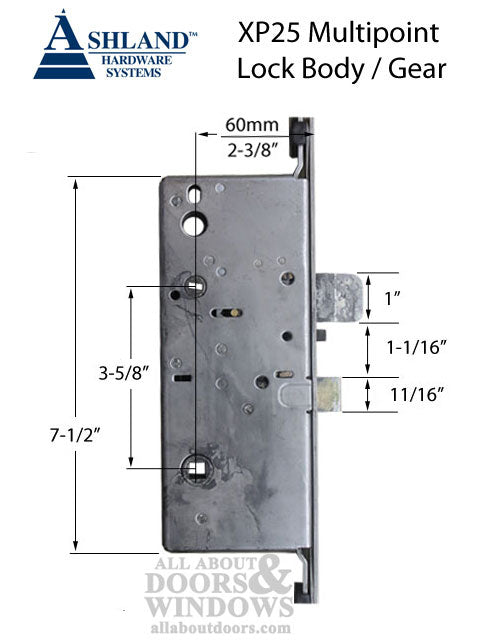

• Backset: 2-3/8" (60mm)
• Faceplate width: 25/32" (20mm)
• Handle location: Key above handle
• Handle spacing (PZ): 3-5/8" (92mm)
• Deadbolt throw: 1" (25.4mm)
• Shootbolt throw: 1" (25.4mm)
• Construction: Stainless Steel
• Markings: Patent no. 6,209,931; Caradco 4101341

Notes

• This lock is the gearbox only; two additional pieces complete the full multipoint system.
• Confirmed compatible with doors from Jeldwen, Caradco, and Therma-Tru.
• Always verify handle position and spacing to ensure correct fit and operation.

Sold individually as the center gearbox section only. Please measure your existing hardware carefully and confirm all specifications before ordering to ensure proper fit and performance. Accurate measurement of your current lock and door setup is essential to avoid returns and guarantee compatibility.
