Ashland 1491-120B Optima Short Dual-Arm Operator - W1491S

Ashland Optima Short Dual-Arm Casement Window Operator - Stainless Steel

The Ashland Optima Short Dual-Arm Operator is a heavy-duty casement window operator designed for both left- and right-hand applications. It is used together with the matching sash bracket and track assembly to open and close the window smoothly.

An integrated o-ring seal helps keep water out of the operator housing, and a composite assembly thermally insulates the operator to reduce heat and cold transfer into the home. The operator is rated to AAMA Commercial grade 901-96 cycle test, 101 load rating, and DP70.

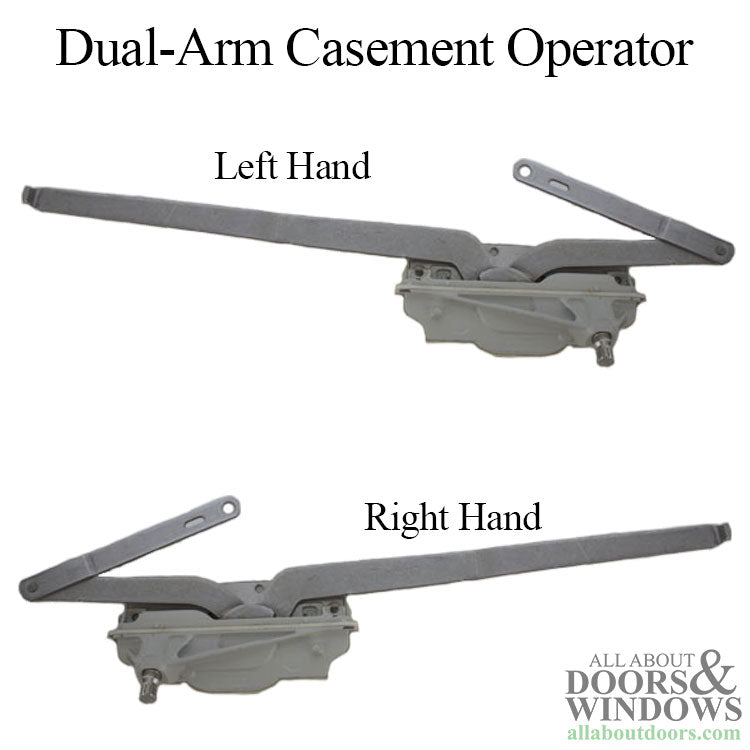

This short-link version is intended for casement windows from 24" (609.6mm) up to 36" (914.4mm) in width. Handing is determined as viewed from the interior; please check the images to confirm left- or right-hand orientation before ordering.

Stamped With

• 1491-120B on the housing
• S-1081-71 on the short 4-7/8" (123.8mm) link
• S-1491-160 on the straight main arm

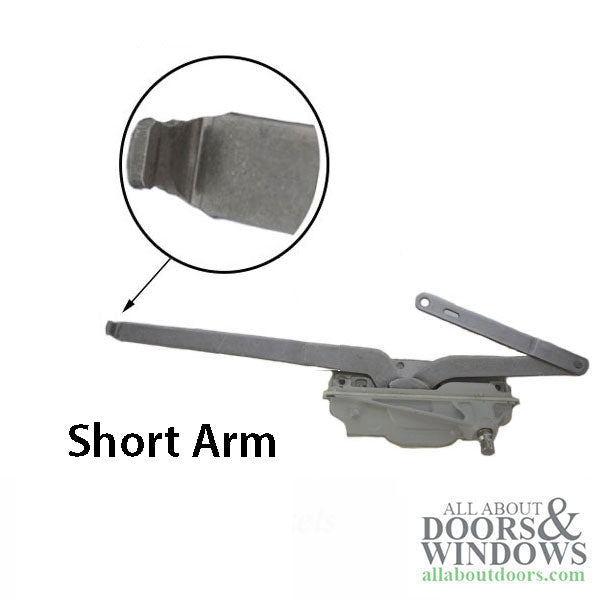

• S-1491-165 on the short main arm

Technical Information

• Manufacturer: Ashland
• Series: Optima
• Type: Dual-Arm Casement Window Operator (Short Link)
• Finish: Stainless Steel
• Handing: Left and Right available (see images)
• Spline Diameter: 3/8" (9.5mm)
• Arm Length: 10" (254.0mm)
• Short Link Length: 4-7/8" (123.8mm)
• Base Width at Cover: 5-1/8" (130.2mm)
• Window Width Range: 24" to 36" (609.6mm to 914.4mm)
• Ratings: AAMA 901-96 cycle test, 101 load rating, DP70
• Original Manufacturer SKU: W1491S

Notes

• Must be used with the matching sash bracket and track assembly for proper operation.
• O-ring seal provides water resistance at the operator body.
• Composite assembly reduces thermal transfer through the operator.

Priced and sold each, so please order one operator per window. Confirm handing from the interior view before purchasing. Measure your existing hardware, including arm length, link length, base width, and spline diameter, to ensure the correct fit before ordering.
