Ashland G3 PivotTrue Triple Coil Balance - 534420-03

Ashland G3 PivotTrue Triple Spring Constant Force Coil Window Balance

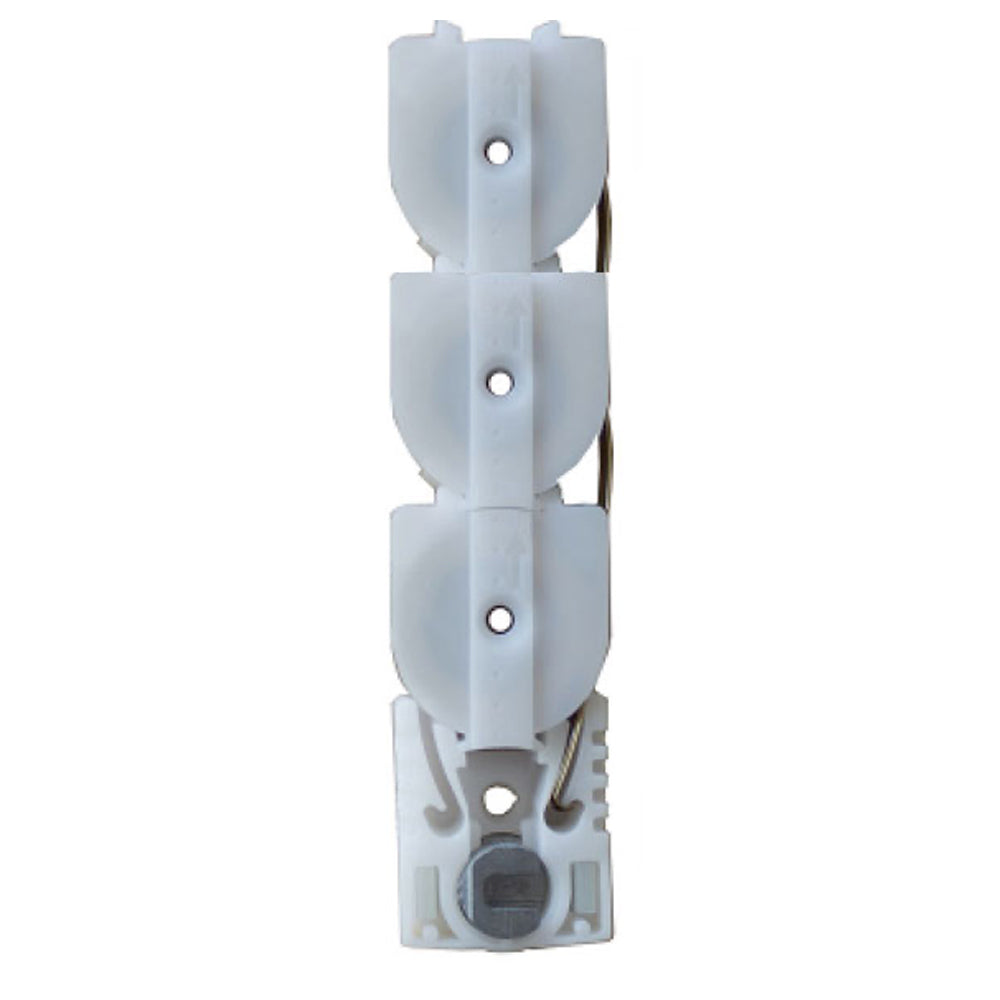

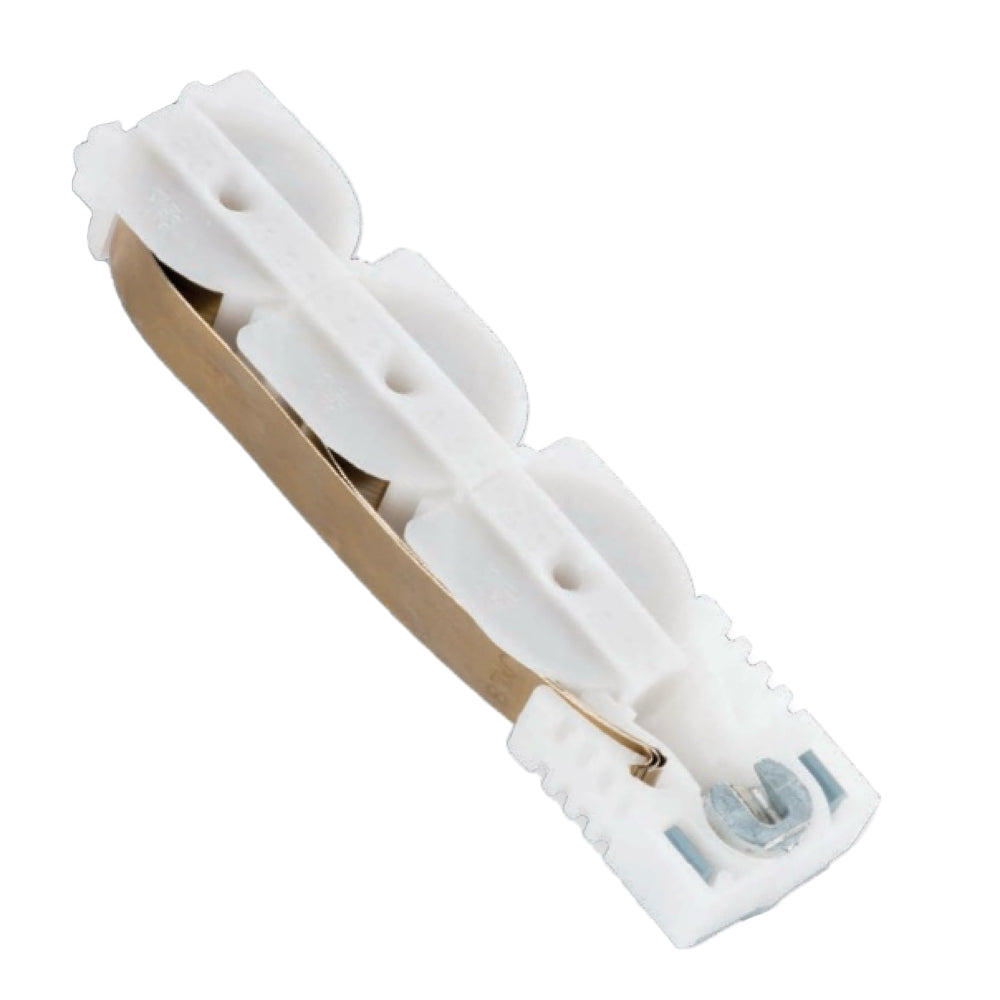

The Ashland PivotTrue G3 is a fully assembled, triple-coil constant force window balance used in double-hung windows to counterbalance the weight of the sash so it slides up and down smoothly and stays in place when opened.

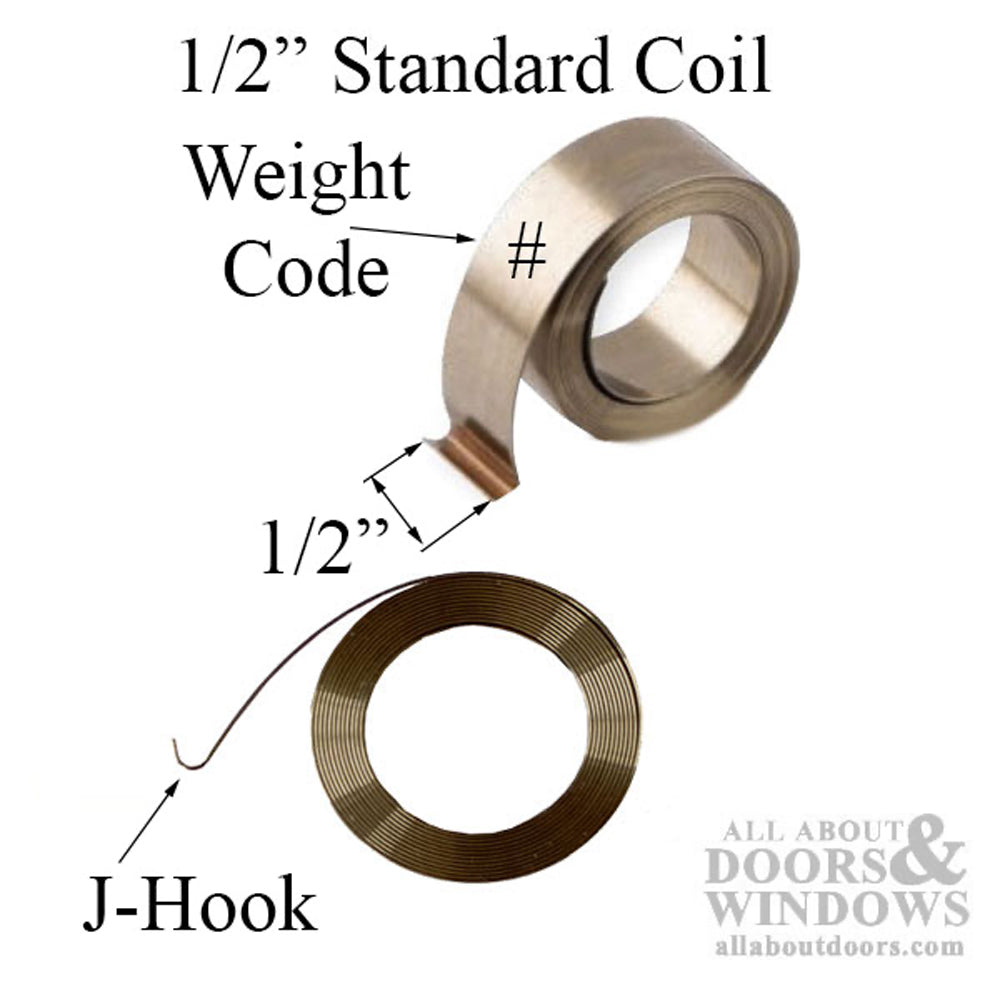

Each of the three J-shaped coil springs is stamped near the top with a number, letter, or combination (for example "7E," "7EL," and "7EXL") that identifies the individual coil's weight rating. Triple-coil sets like this one carry a per-coil range of roughly 6–10 lbs, so a matched set of three 7-stamped coils in a pair of balances will typically support a sash weighing about 39–40 lbs.

The pivot lock shoe uses a zinc cam designed for a round-head pivot bar, though other pivot bar shapes will generally work. Pivot bars are sold separately in a variety of lengths, shapes, and hole patterns to match different window manufacturers.

Stamped With

• Coil identifier stamped near the top of each J-shaped spring (number, letter, or both — e.g. 7E / 7EL / 7EXL).
• Color-coded stripe may appear on some pivot lock shoes based on coil combination.
• This unit has a green brake pad.

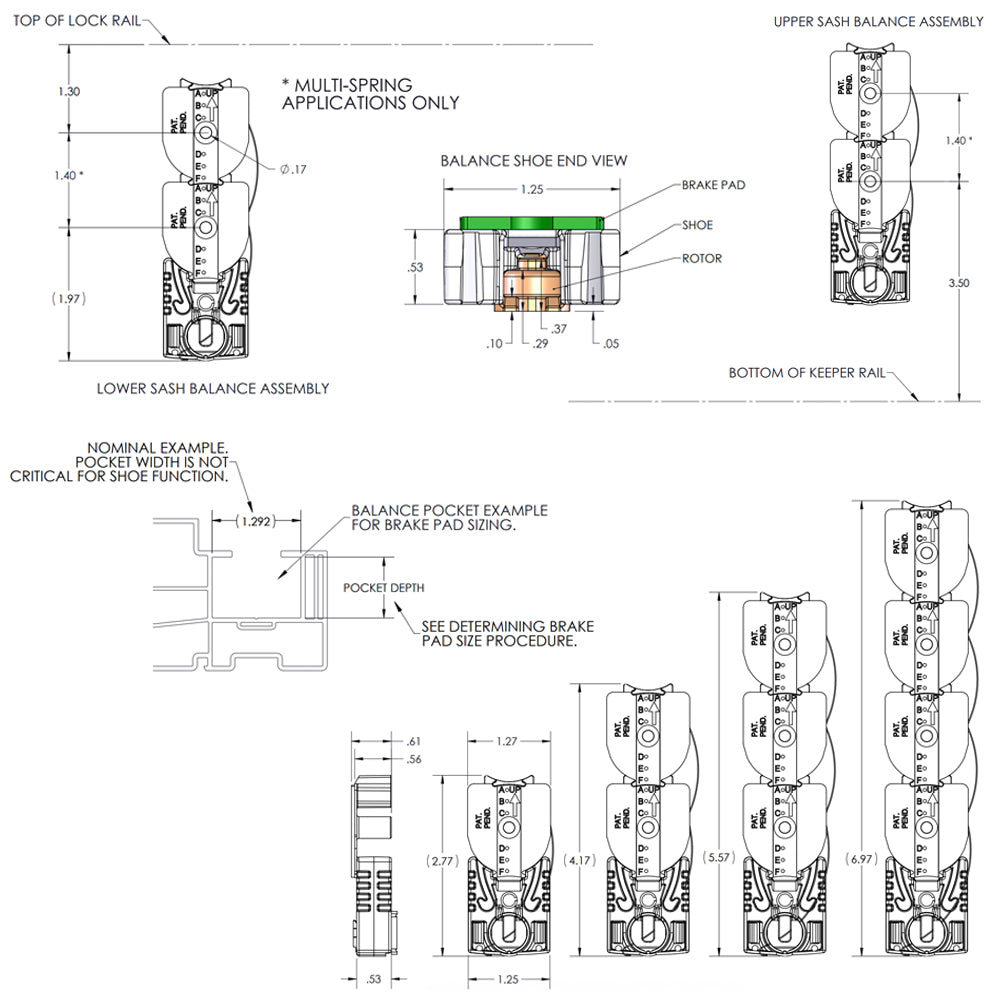

Technical Information

• System: G3 PivotTrue Triple Spring Constant Force Coil
• Coil Configuration: Triple coil, fully assembled
• Per-Coil Weight Range: 6–10 lbs
• Spring Extension: 0.085"
• Balance Shoe Width: 1-1/4" (31.8mm)
• Balance Shoe Length: 1-7/16" (36.5mm)
• Balance Shoe Depth: 9/16" (14.3mm)
• Cam: Zinc, designed for round-head pivot bar
• Brake Pad Color: Green
• Original Part Number: 534420-03

Notes

• Pivot bars are sold separately and vary by window manufacturer.
• To size a balance: weigh the full sash (frame plus glass), divide by 2, and choose two coils rated for that half-weight — one for each side of the window.
• Example: a 24 lb sash needs a pair of 12 lb coil balances (one per side).
• Stripe color on the shoe depends on the specific combination of coils used.

Coil balances should always be replaced in pairs to keep the sash balanced and traveling evenly. Availability of specific coil stampings and weights is limited to existing inventory. Please measure your existing balance shoe and confirm the coil stamping on your current hardware before ordering to ensure the correct fit.
