Anderberg 301SS 4-Bar Casement Hinge 7/8" Track - 301HD-NS
- Regular price
- $22.73 - $34.39
- Regular price
- $32.99
- Regular price
-
- Sale price
- $32.99
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 301HD-NS-10
Anderberg 301SS heavy-duty 4-bar casement window hinge in stainless steel, with a 7/8" (22.2mm) track width and 5/8" (15.9mm) stack height. Reversible for left- or right-hand installations and stamped 301SS. Sold each; replace hinges in pairs for best performance.
Couldn't load pickup availability
Anderberg 301SS Heavy Duty 4-Bar Casement Window Hinge - Stainless Steel
This is a heavy-duty commercial 4-bar hinge designed for casement windows. It is built from stainless steel for corrosion resistance and long service life in demanding environments.

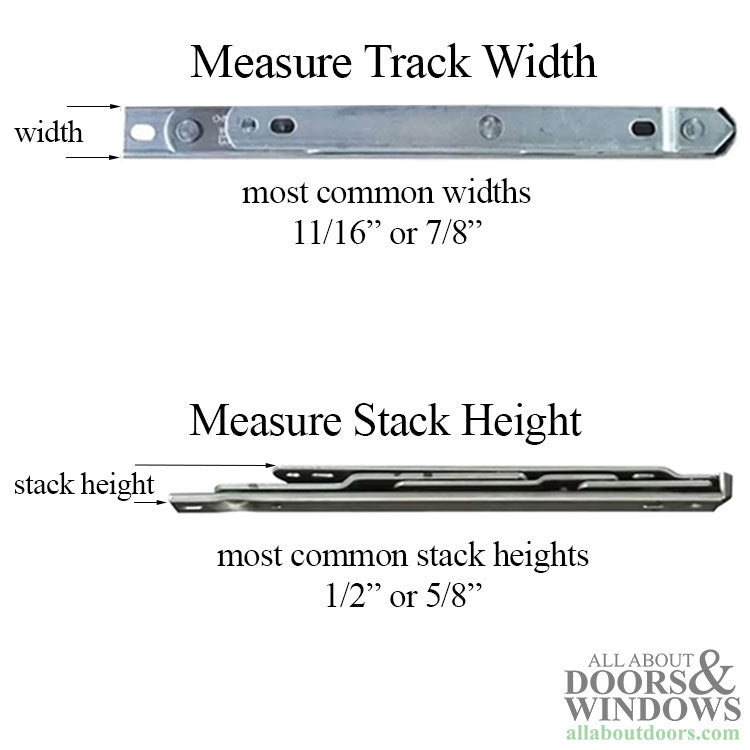

The hinge measures 7/8" (22.2mm) track width and 5/8" (15.9mm) stack height. It is reversible, so it can be installed on either the left- or right-hand side of the window.

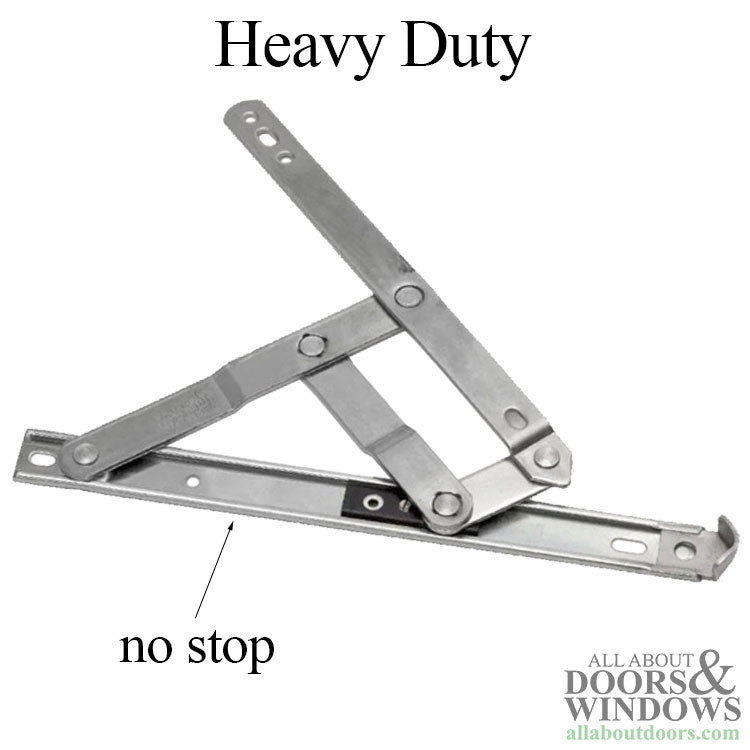

Note that this hinge does not have a stop and is intended for casement window applications only. If your window uses a hinge with a built-in stop, this is not the correct part.
Stamped With
- 301SS
Technical Information
- Manufacturer: Anderberg
- Model: 301SS
- Type: 4-Bar Casement Window Hinge, Heavy Duty Commercial
- Material: Stainless Steel
- Track Width: 7/8" (22.2mm)
- Track Stack Height: 5/8" (15.9mm)
- Stop: No
- Handing: Reversible (Left or Right Hand)
- Shim: Not included

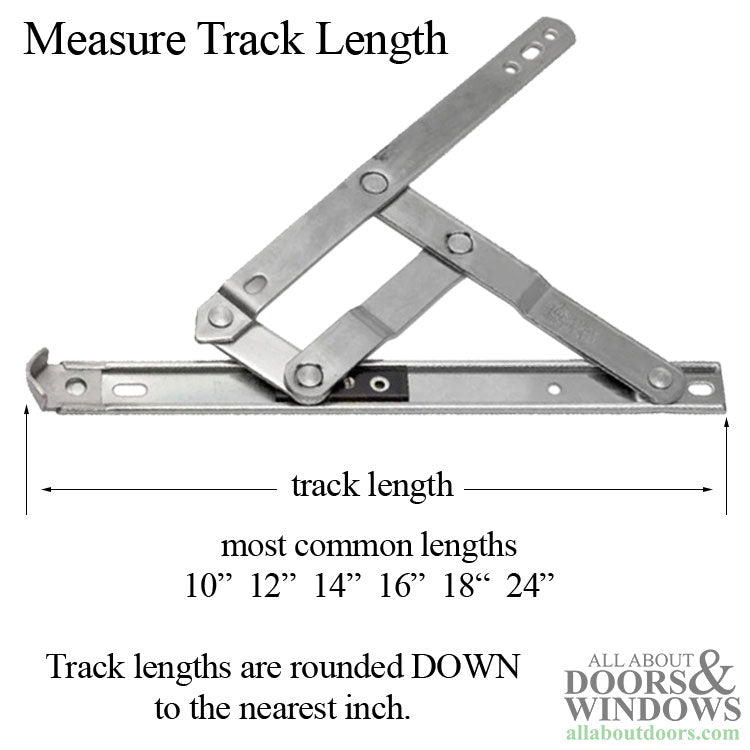

- Available Track Lengths: 10", 12", 14", 16", 18", 24" (round DOWN to nearest listed length)
Notes
Load ratings for new construction: each listed track length (10", 12", 14", 16", 18", and 24") supports up to 100 lbs at a sash width of 36".
If you need a shim for your replacement, please contact our office for ordering information.
Replaces / Replaced By
Truth Hardware has updated part numbers. Legacy to current cross-reference:
- 34.24.00.210.1 → 2121547
- 34.25.00.210.1 → 2121550
- 34.26.00.210.1 → 2121553
- 34.27.00.210.1 → 2121555
- 34.28.00.210.1 → 2121558
- 34.31.00.210.1 → 2121561

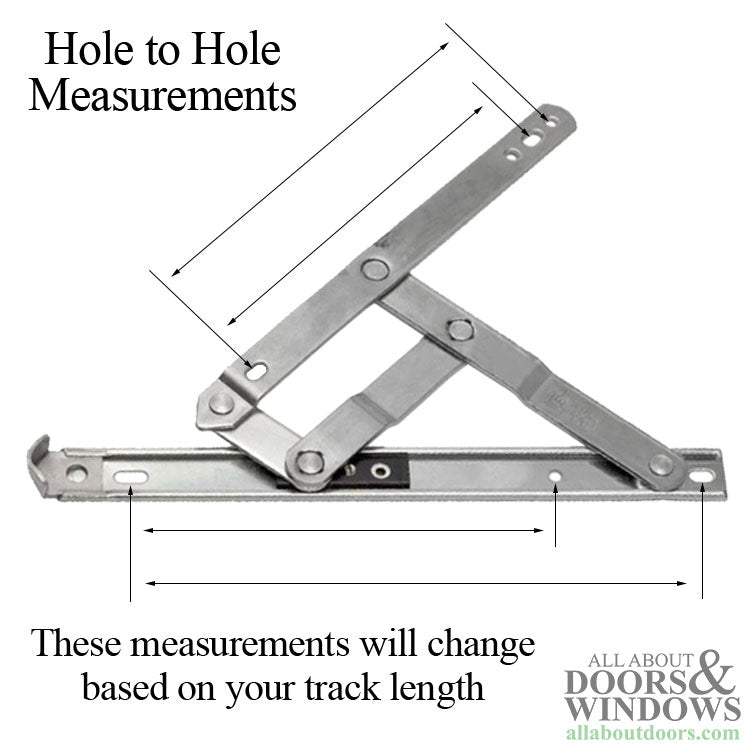

These hinges are priced and sold each. When replacing hinges, it is best practice to change them in pairs so both sides wear evenly. Please measure your existing hinge track width, stack height, and length carefully before ordering to ensure the correct fit.
