Anderberg 201SS 4-Bar Hinge w/ Stop, Stainless - 201SD-S

Anderberg 201SS Standard Duty 4-Bar Casement / Awning Window Hinge - Stainless Steel

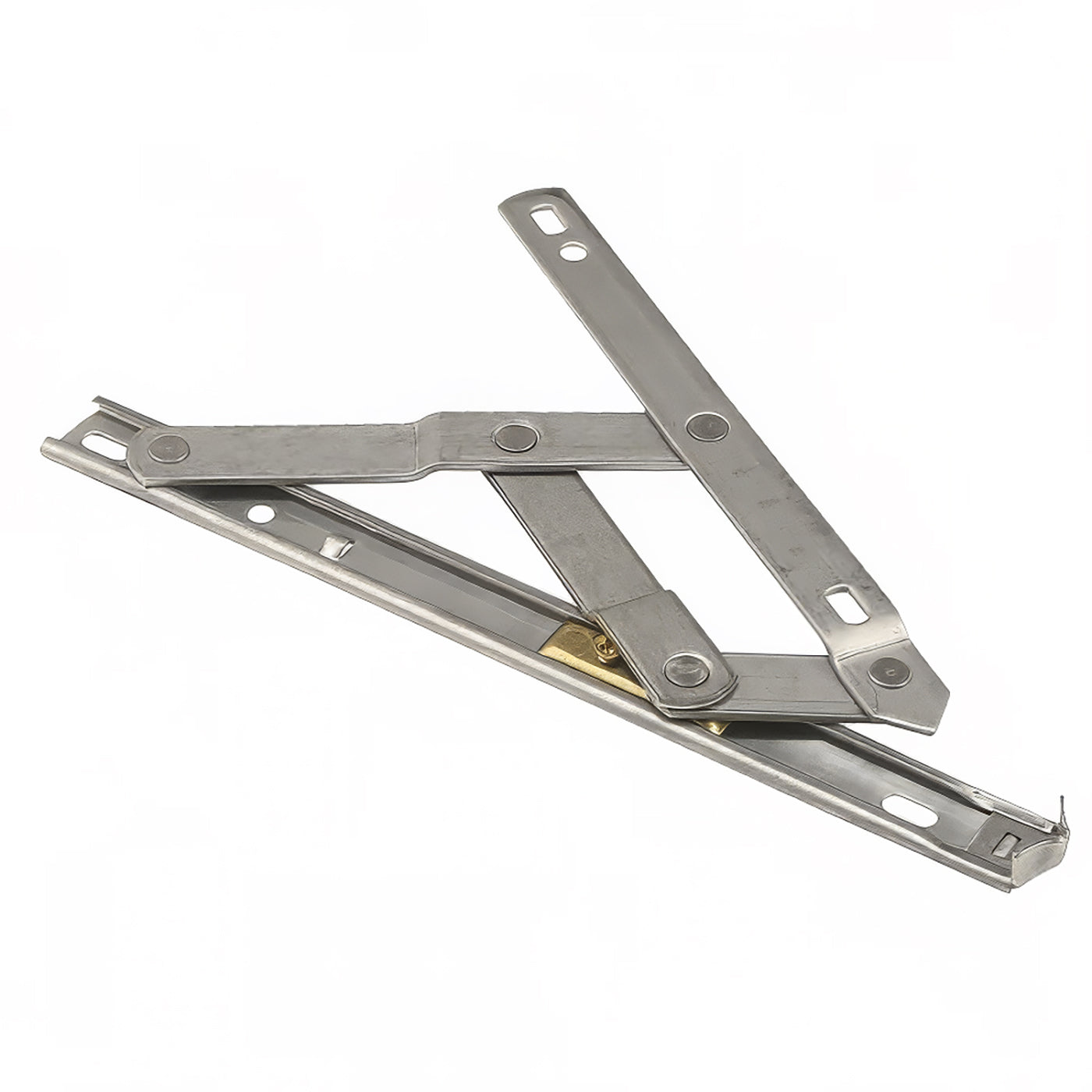

This is a standard-duty 4-bar hinge from Anderberg, designed for casement and awning windows. It includes a built-in stop that keeps the sash from opening too far, helping the hinge support the window's weight properly over time.

The hinge is reversible, so a single part works for either left-hand or right-hand applications. It's built from stainless steel for corrosion resistance.

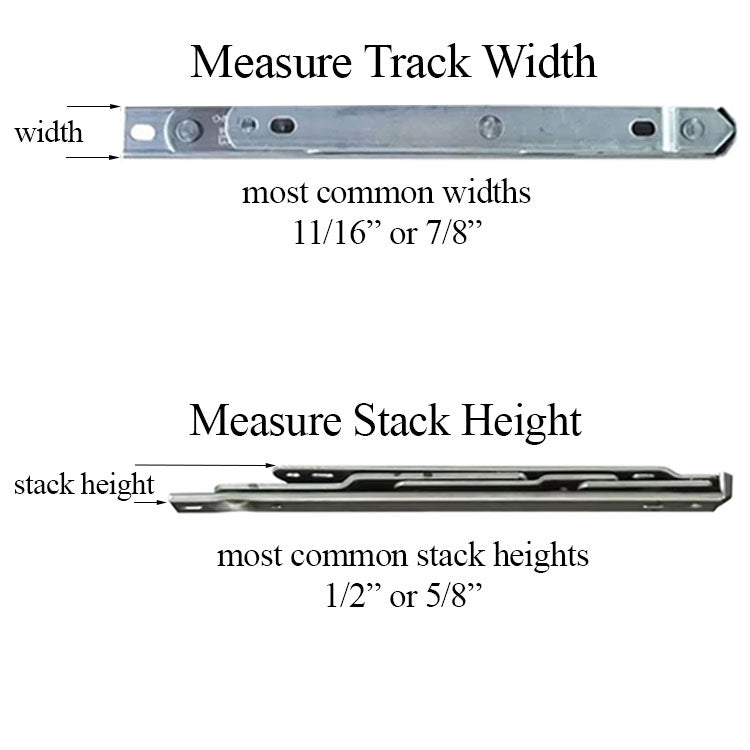

Before ordering, please measure your existing hinge track width and stack height. If your measurements don't match the specs below, you will need a different hinge.

Technical Information

• Manufacturer: Anderberg
• Model: 201SS (Part 201SD-S)
• Type: 4-Bar Casement / Awning Hinge, Standard Duty
• Material: Stainless Steel
• Track Width: 11/16" (17.5mm)
• Track Stack Height: 1/2" (12.7mm)
• Stop: Yes (prevents over-opening)
• Handing: Reversible (left or right hand)
• Shim: Not included (contact us if needed)

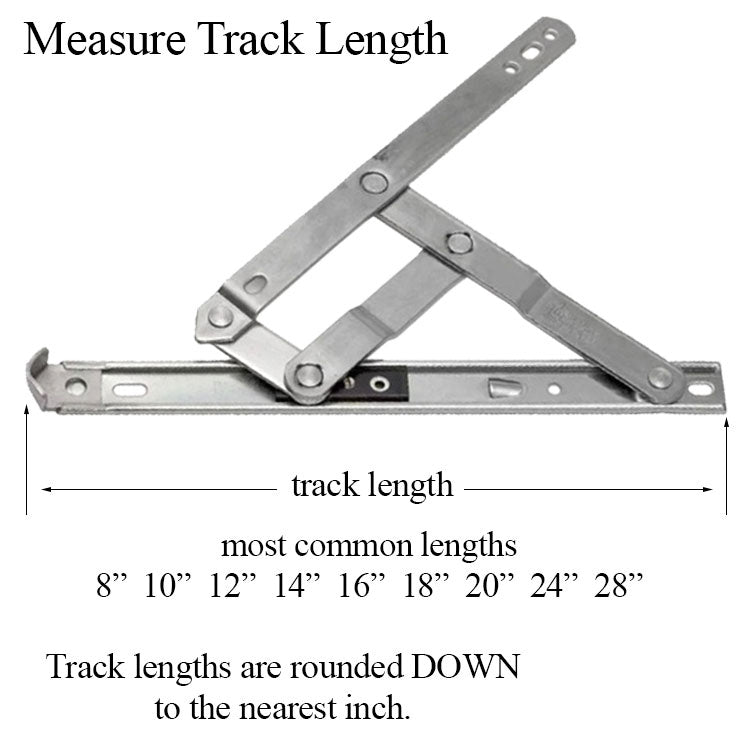

• Available Track Lengths: 8", 10", 12", 14", 16", 18", 20" (round DOWN to the nearest listed length)

Notes

Track lengths of 24" and 28" are available under model 301HD-S (heavy duty).

Window weight and width capacity by track length for new construction:

• 8" track - up to 19 lbs at 16" width
• 10" track - up to 23 lbs at 20" width
• 12" track - up to 28 lbs at 24" width
• 14" track - up to 33 lbs at 28" width
• 16" track - up to 40 lbs at 34" width
• 18" track - up to 40 lbs at 34" width
• 20" track - up to 47 lbs at 34" width

Replaces / Replaced By

Truth Hardware has updated their part numbers. Older Truth numbers and their current replacements:

• 34.10.00.102.1 - now 2121534
• 34.11.00.102.1 - now 2121536
• 34.12.00.100.1 - now 2121537
• 34.13.00.102.1 - now 2121540
• 34.14.00.100.1 - now 2121541
• 34.15.00.102.1 - now 2121543
• 34.16.00.100.1 - now 2121544

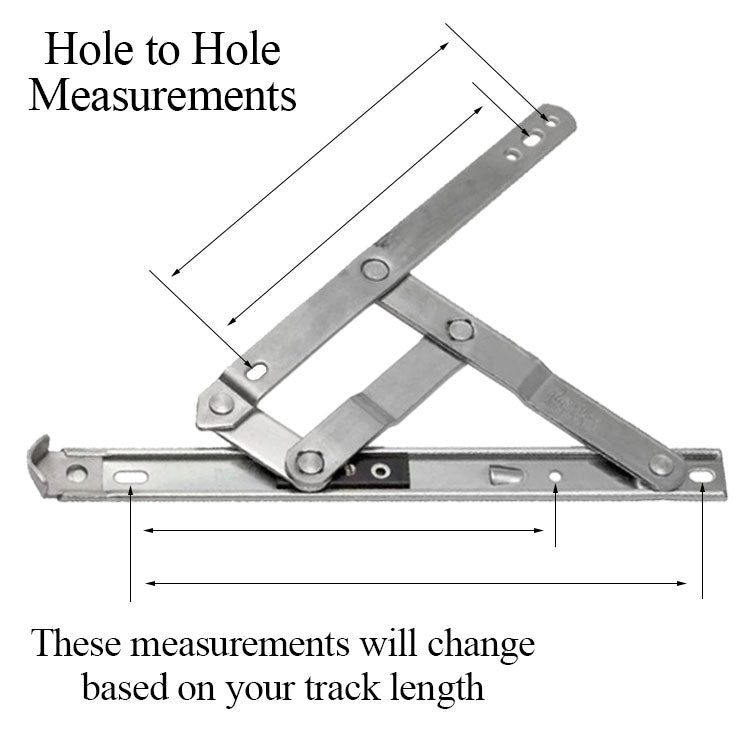

Hinges are priced and sold individually. When replacing hinges, it is best practice to change them in pairs (top and bottom) to keep the sash aligned and evenly supported. Measure your existing hinge's track width, stack height, and track length carefully before ordering to make sure this is the correct replacement.
