Anderberg 201SS 4-Bar Casement Hinge, No Stop, Stainless - 201SD-NS

Anderberg 201SS 4-Bar Casement Window Hinge - No Stop, Stainless Steel

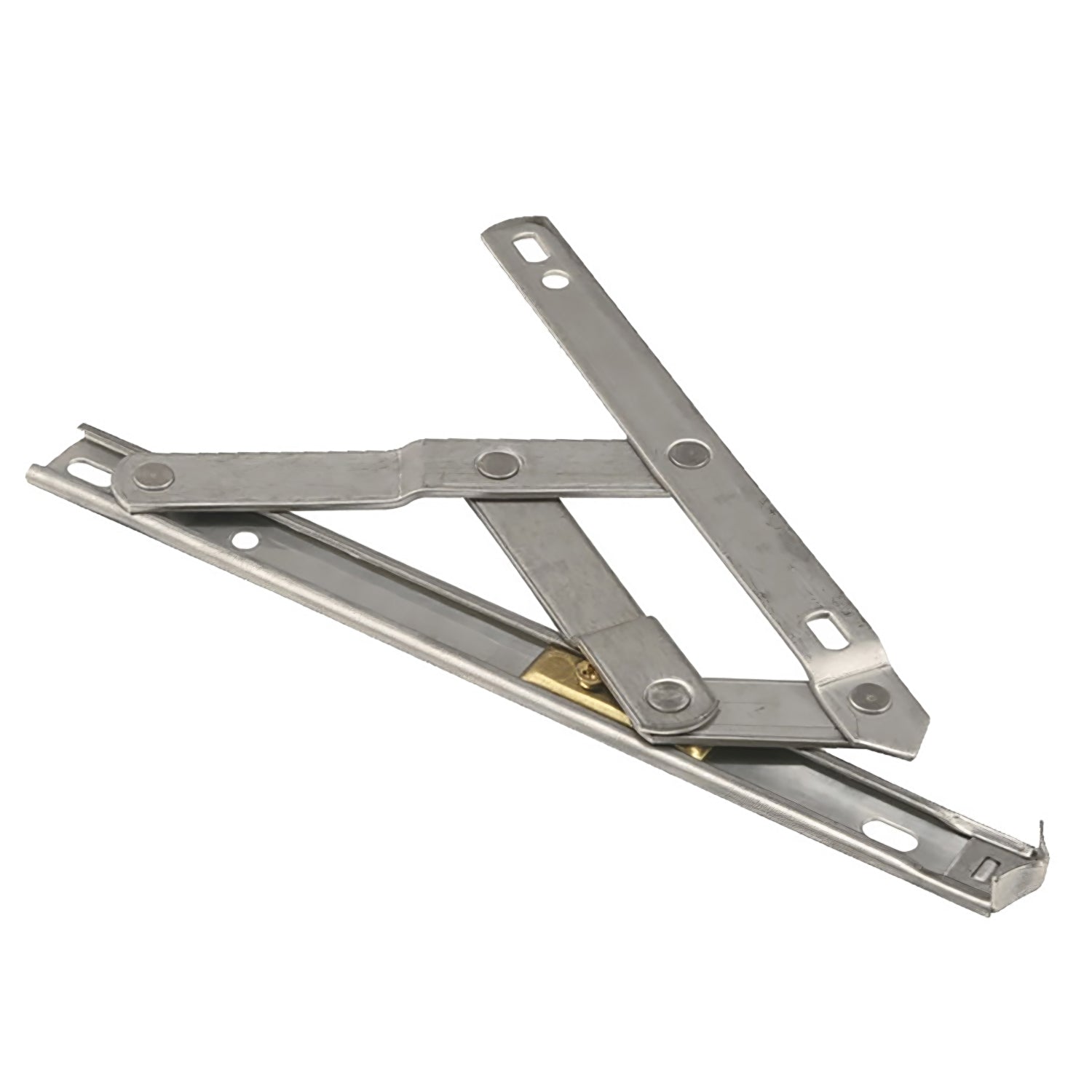

This is a 4-bar casement window hinge from Anderberg, built in stainless steel for corrosion resistance. It is designed for casement windows only and does not include a stop.

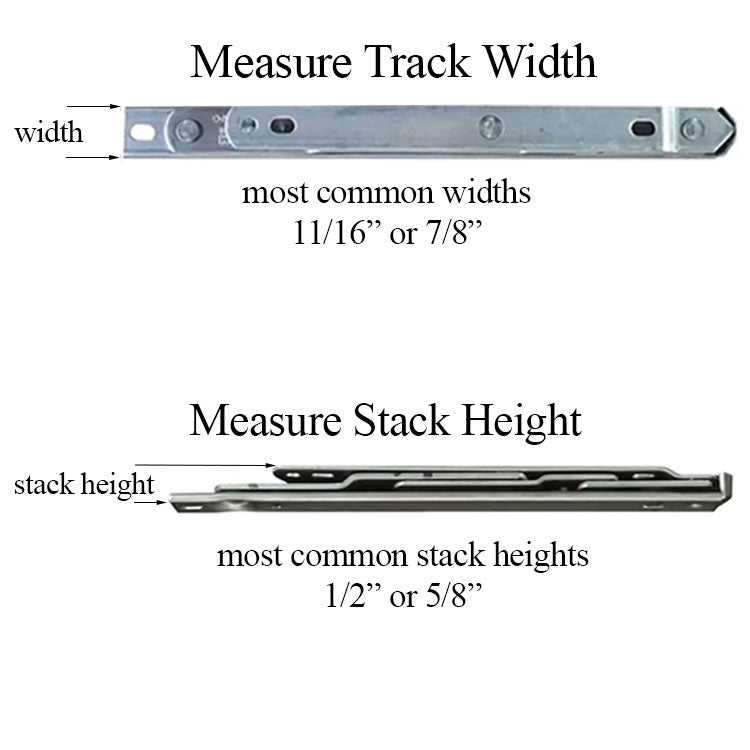

The hinge is reversible, so a single part number covers both left-hand and right-hand applications. It uses a track width of 11/16" (17.5mm) and a stack height of 1/2" (12.7mm), so please confirm your existing hinge matches these dimensions before ordering.

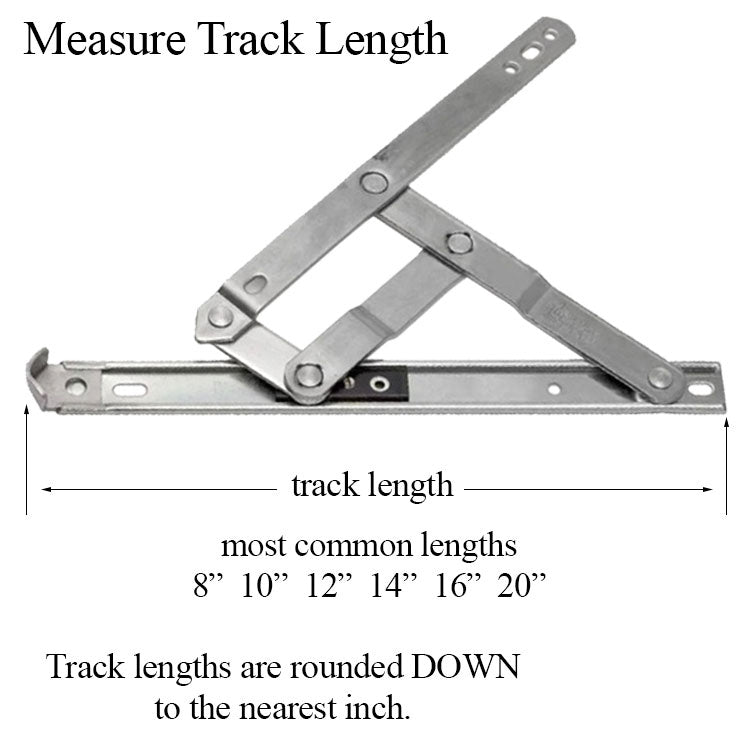

Available track lengths are 8", 10", 12", 14", 16", and 20". When selecting a length, round DOWN to the nearest available size.

Stamped With

• 201SS

Technical Information

• Manufacturer: Anderberg
• Model: 201SS
• Type: 4-Bar Casement Window Hinge
• Material: Stainless Steel
• Track Width: 11/16" (17.5mm)
• Stack Height: 1/2" (12.7mm)
• Stop: None (casement only)
• Handing: Reversible (Left or Right Hand)
• Shim: None included
• Available Track Lengths: 8", 10", 12", 14", 16", 20"
• Our SKU: 201SD-NS

Notes

Load capacity by track length (new construction guidance):

• 8" track - up to 65 lbs at 32" window width
• 10" track - up to 65 lbs at 32" window width
• 12" track - up to 65 lbs at 32" window width
• 14" track - up to 65 lbs at 32" window width
• 16" track - up to 65 lbs at 32" window width
• 20" track - up to 65 lbs at 32" window width

If you need a shim for your replacement, please contact our office for ordering information.

Replaces / Replaced by

May be used in place of the following Truth Hardware part numbers (Truth has updated their numbering):

• 34.10.00.101.1 - now 2121533
• 34.11.00.101.1 - now 2121535
• 34.12.00.101.1 - now 2121538
• 34.13.00.101.1 - now 2121539
• 34.14.00.101.1 - now 2121542
• 34.16.00.101.1 - now 2121545

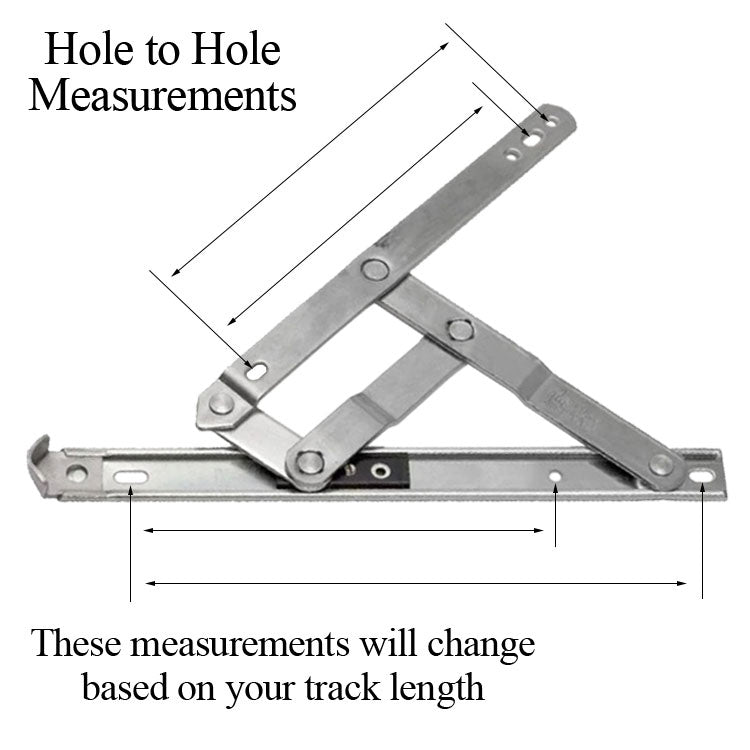

This hinge is priced and sold each. Hinges are typically installed in pairs (top and bottom of the sash), so most casement replacements will require ordering a quantity of two. Availability may be limited to existing inventory. Please measure your existing hinge - track width, stack height, and track length - to ensure the correct fit before ordering.
