AmesburyTruth V400 2D Adjustable Set Hinge - 363713
- Regular price
- $37.98 - $64.24
- Regular price
- $64.24
- Regular price
-
- Sale price
- $64.24
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 363713-AB
The AmesburyTruth V400 Series 2D vertical adjustable set hinge with removable pin offers 1/4" (6.4mm) vertical and 3/16" (4.8mm) horizontal adjustment for a precise door fit. It retrofits a standard 4" x 4" (101.6mm x 101.6mm) one-step pocket route with a 5/8" (15.9mm) corner radius and is reversible for left- or right-hand applications. Adjusts easily with a 3/32" (2.4mm) hex wrench.
Couldn't load pickup availability

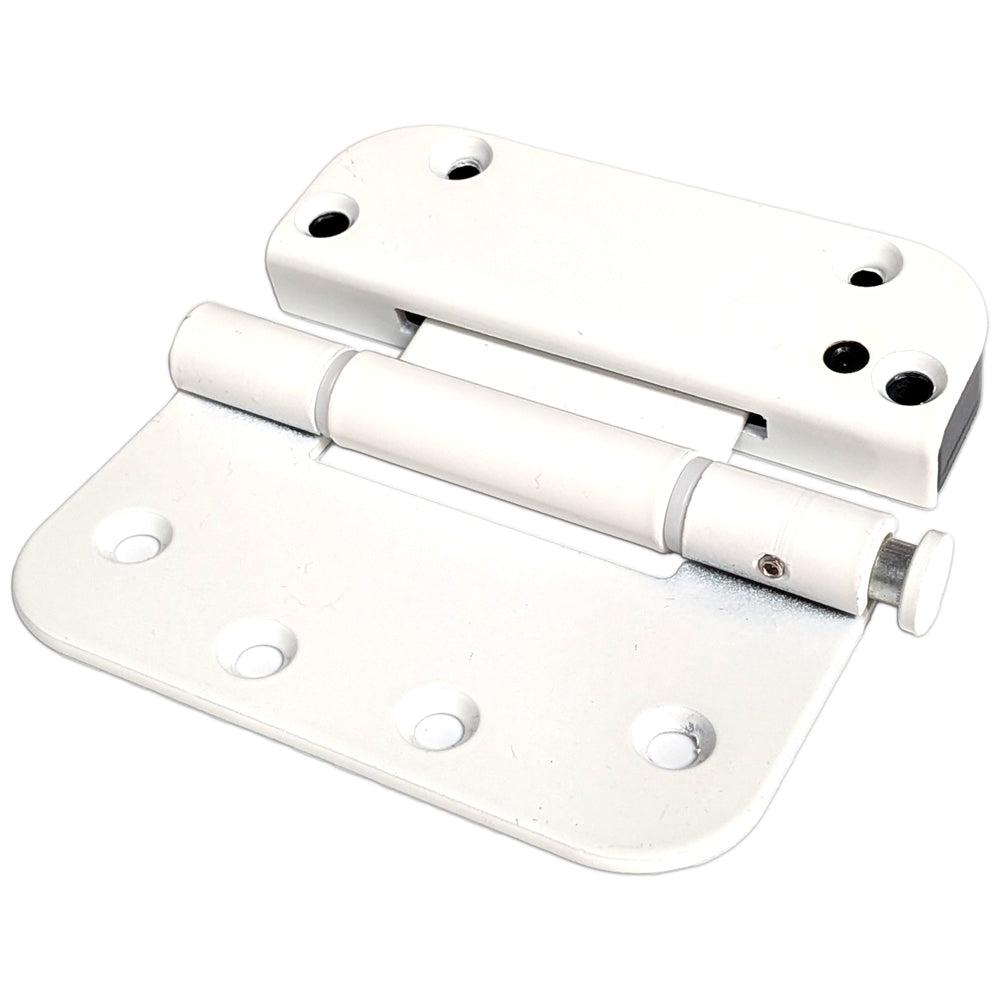

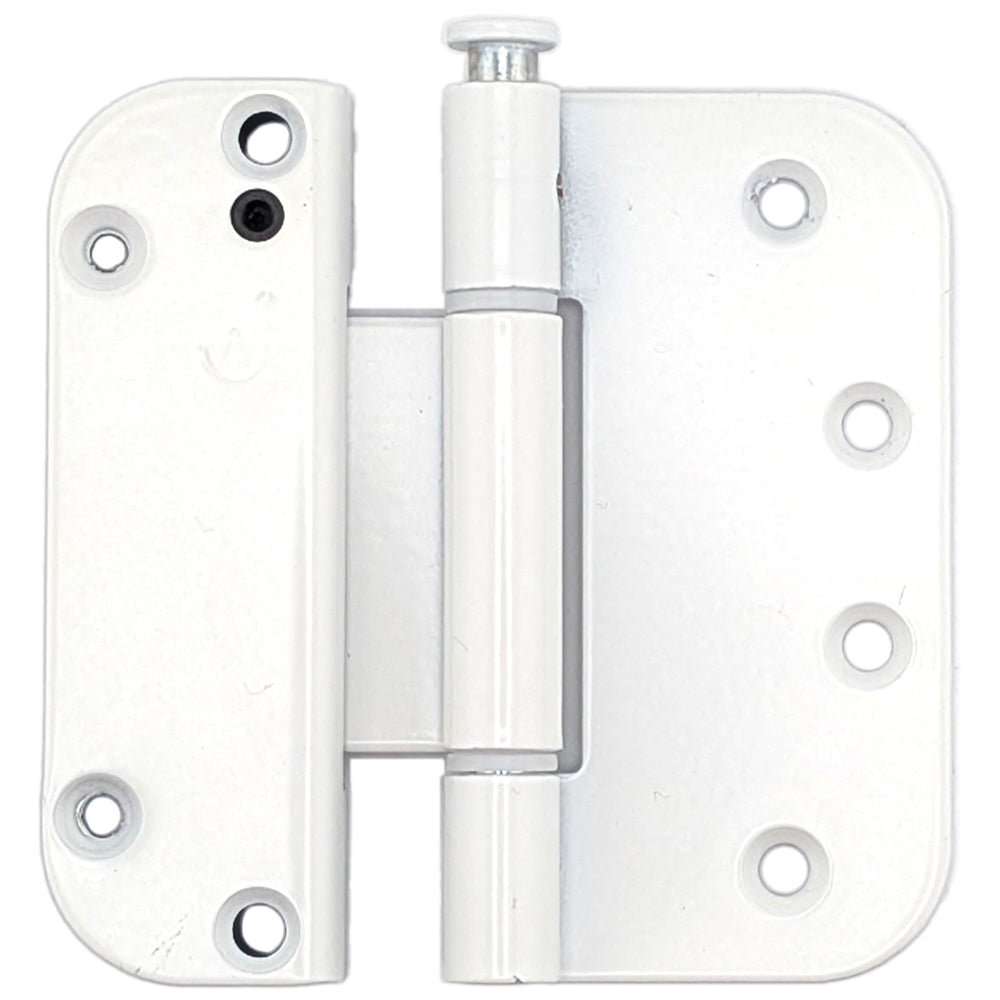

AmesburyTruth V400 Series 2D Vertical Adjustable Set Hinge with Removable Pin
The V400 Series set hinge is designed to give installers and homeowners a clean, adjustable fit on entry and patio doors. With both vertical and horizontal adjustment built in, it takes the guesswork out of hanging or re-hanging a heavy door.
The hinge retrofits a standard 4" x 4" (101.6mm x 101.6mm) one-step pocket route with a 5/8" (15.9mm) corner radius, making it a straightforward swap on many existing door preps. It is recommended for aluminum, composite, vinyl, and wood doors and is easily reversible for either left- or right-hand applications.
Hex-head adjustment screws (not Phillips or slotted) provide secure tool engagement and prevent stripping during adjustment. Screw hole locations are optimized away from the panel edge to help prevent accidental wood splitting. The panel leaf includes a unique shield that blocks debris and gives a clean appearance when the door is closed.
Teflon-filled bushings increase wear resistance and blend with the hinge finish for a consistent look. The removable pin allows the door to be lifted off without unfastening the hinge leaves.
Technical Information
- Series: AmesburyTruth V400
- Type: 2D Vertical Adjustable Set Hinge
- Pin: Removable
- Vertical Adjustment: 1/4" (6.4mm)
- Horizontal Adjustment: 3/16" (4.8mm)
- Adjustment Tool: 3/32" (2.4mm) hex wrench
- Pocket Route: 4" x 4" (101.6mm x 101.6mm) one-step
- Corner Radius: 5/8" (15.9mm)
- Handing: Reversible (left or right hand)
- Recommended For: Aluminum, composite, vinyl, and wood doors
- Standards: Exceeds BHMA Grade 3 for wood, vinyl, aluminum, and steel doors
- Original Manufacturer SKU: 363713
Notes
- Innovative, patent-pending adjustment mechanism delivers low adjustment torque.
- Bushings blend with the hinge finish for a uniform appearance.
- Panel leaf shield helps keep debris out of the hinge mechanism.
Sold individually. Most standard doors use three or more hinges, so order the quantity you need for your application. Please measure your existing hinge and pocket route carefully before ordering to ensure the correct fit.
