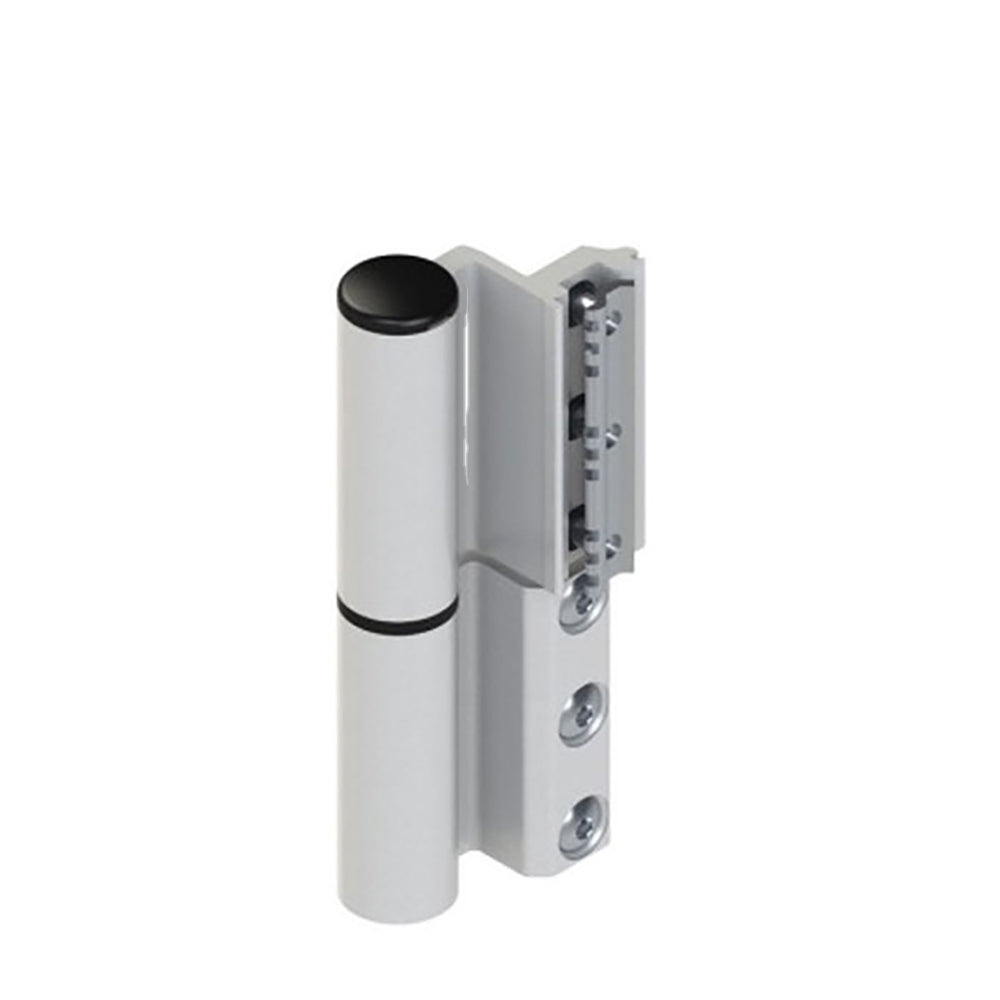

Amesbury Giesse Clamp Hinge for Aluminum Terrace and Balcony Doors
- Regular price
- $27.63 - $29.29
- Regular price
- $27.63
- Regular price
-
- Sale price
- $27.63
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: CH-00681-BL
CE-marked Euro groove clamp hinge for aluminum terrace and balcony doors. Profile-specific for cross sections C001, C002, and C005. Supports up to 120 kg with three hinges and allows ±1mm width adjustment after installation. Confirm your aluminum profile before ordering.
Couldn't load pickup availability
Amesbury Giesse Clamp Hinge for Aluminum Terrace/Balcony Doors

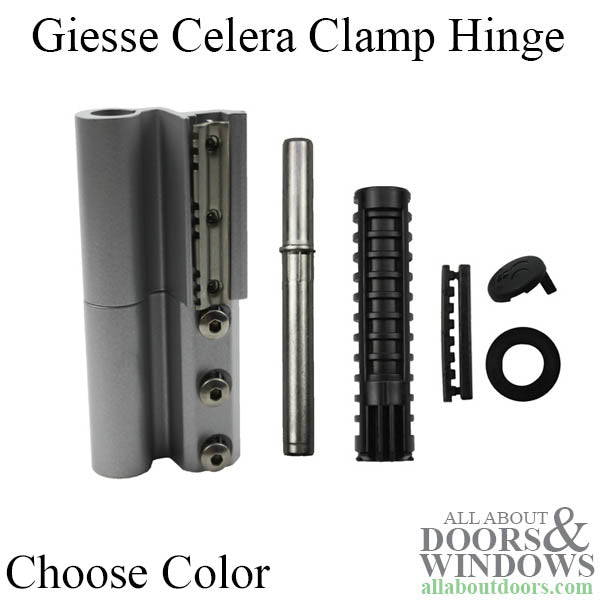

Euro Groove clamp hinge designed for aluminum terrace and balcony doors. CE marked according to EN1935. Profile-specific based on aluminum extrusions used in door construction (approximately 17 different profiles). Supplied with preassembled fixing plates for installation on both sash and frame during door or window positioning.
Width adjustment of +/- 1mm is possible with the door installed using a 6mm Allen/hex wrench. Includes a washer integrated in the pin for burglary resistance. A redesigned plug ensures side adjustment is maintained over time, even at maximum load capacity.

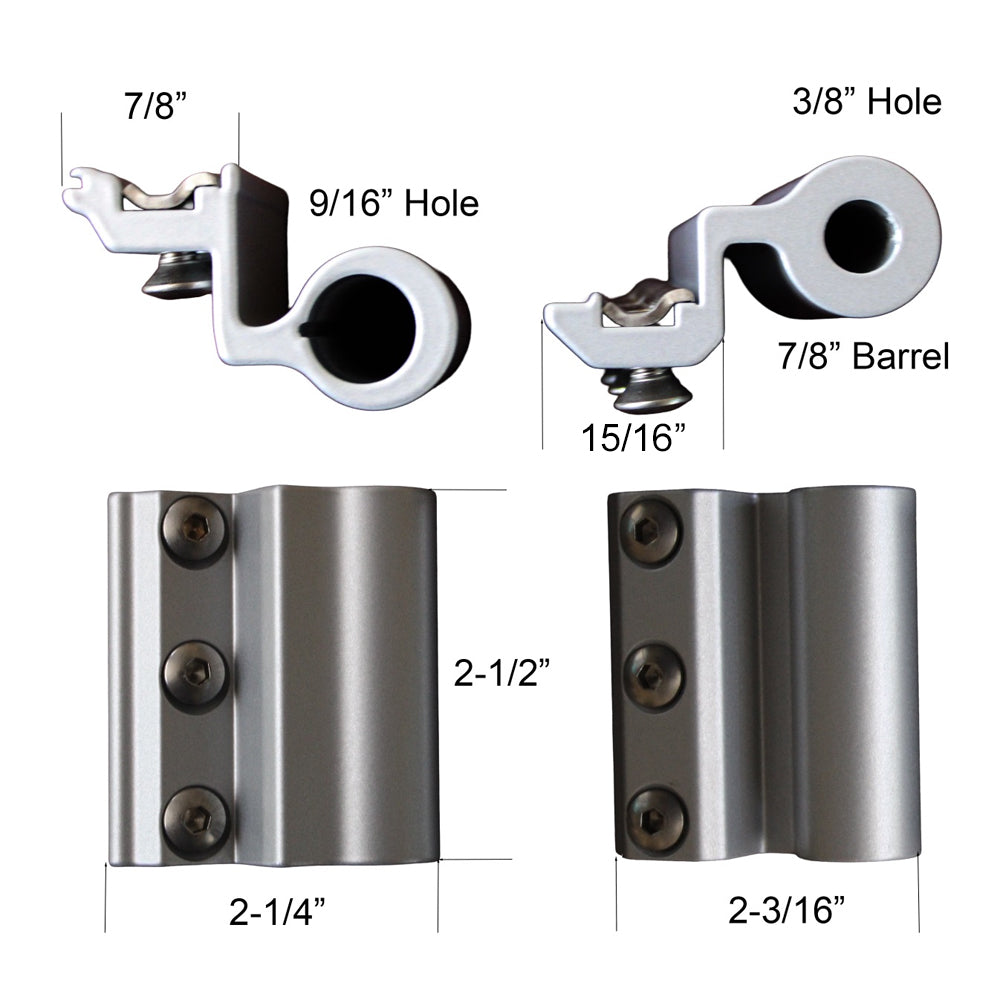

Specifications:
- Application: Aluminum Terrace/Balcony Doors
- Cross Section Profiles: C001, C002, C005
- Overall Length: 5-21/64 inches (135.5mm)
- Barrel Length: 2-1/2 inches (64mm)
- Fixing Plate Width: 1/2 inch (12.5mm)
- Fixing Plate Length: 2-1/2 inches (64mm)
- Clamping Screws: 6 (three per hinge)
- Maximum Load Capacity: 100 Kg with two hinges, 120 Kg with three hinges
- Adjustment Tool: 6mm Allen/Hex Wrench
- Marking: CE 12

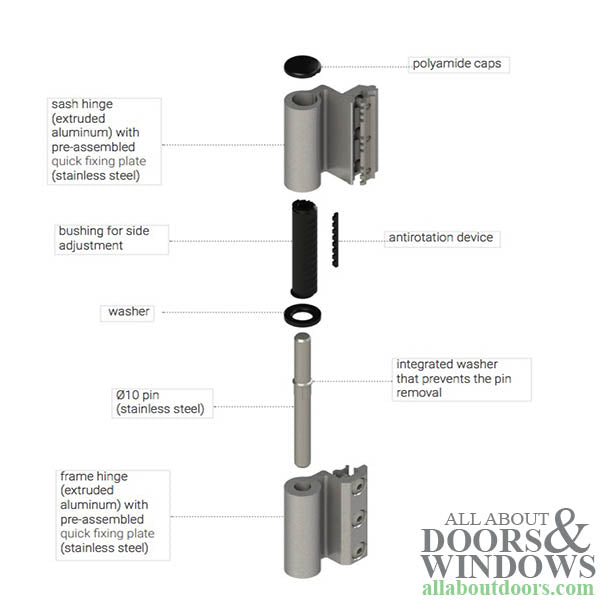

Installation/Assembly:
- Insert pin into frame hinge and tap with hammer to seat.
- Insert washer over pin, flat side down.
- Insert plastic bushing into sash hinge - small notch in hinge meets with center slot in bushing.
- Insert plastic cap into center groove of bushing.
- Place frame hinge onto frame and tighten screws with hex wrench.
- Fix sash hinge to sash and tighten screws.
- Assemble frame with sash and remove cap to adjust lateral side position of sash +/- 1mm.
- Replace cap.
Notes:
- These are profile-specific based on the aluminum extrusions being used. Confirm your cross section profile (C001, C002, or C005) matches before ordering.
