Amesbury 400 A Series Inactive Left-Hand Multi-Point Trim - HD401ILH
- Regular price
- $110.52 - $165.17
- Regular price
- $165.17
- Regular price
-
- Sale price
- $165.17
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: HD401ILH-SN
Amesbury 400 A Regency Series inactive (non-keyed, no thumbturn) handle set for a secondary passive door with a multi-point lock. Left-hand configuration (handing is reversible) with a curved lever, rounded-top A-style escutcheon plate, and spring-loaded cassette for smooth lever action. Fits 1-3/4" (44.5mm) thick doors and replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American-style multi-point trims that do not require an inside thumbturn.
Couldn't load pickup availability

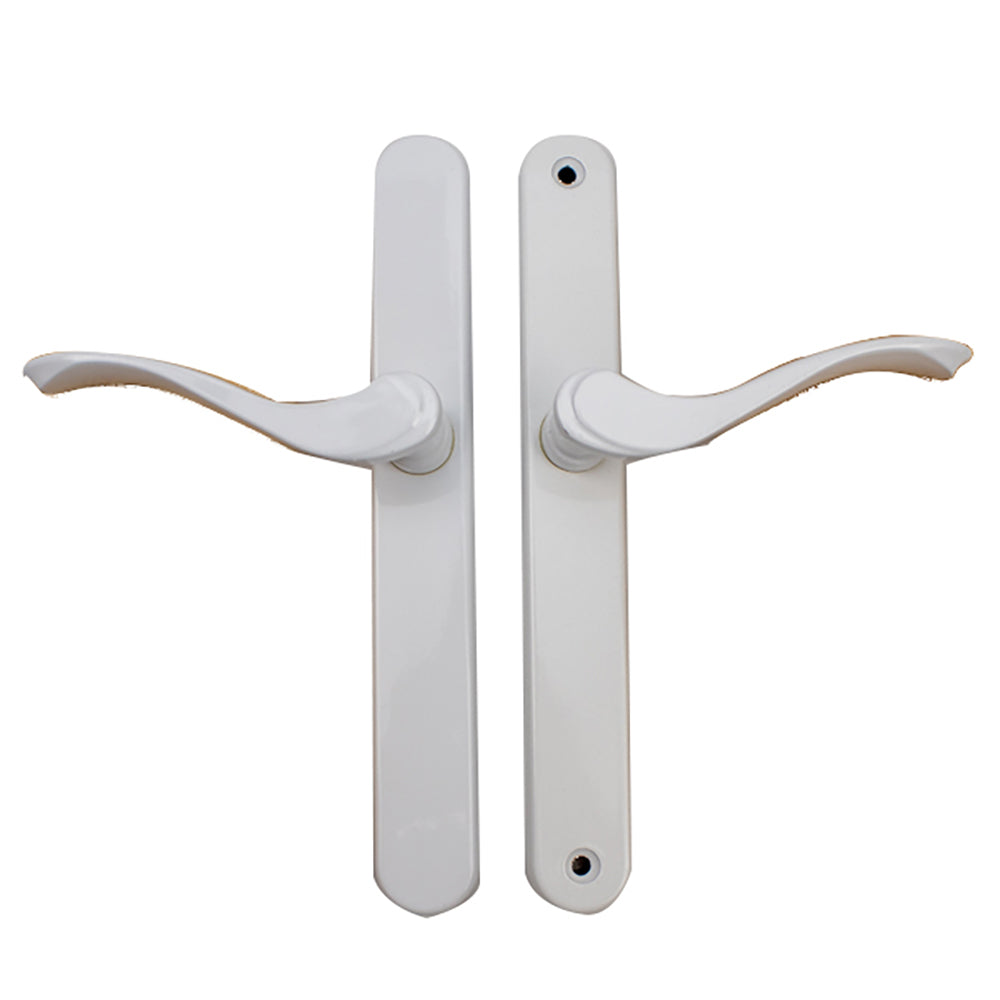

Amesbury 400 A Series Inactive Multi-Point Lock Trim - Left Hand (HD401ILH)
This is the Amesbury 400 A Regency Series inactive handle set, designed for the secondary (passive) door of a multi-point lock system. It has no key cylinder and no thumbturn, making it the correct choice when only the primary door needs locking hardware.
The set features a curved lever paired with the A-style rounded-top escutcheon plate. A spring-loaded cassette gives the lever a crisp, positive return, and the handles are retained by a C-ring (circlip) rather than a set screw for a cleaner appearance.
Although shipped configured left-hand as shown, the handing is field-reversible. This trim commonly replaces multi-point lock trim used on Integrity by Marvin, Milgard, G-U / Ferco, and other American-version multi-point systems that do not require an interior thumbturn.
Technical Information
- Manufacturer: Amesbury Truth
- Series: 400 A Regency
- Function: Inactive / Passive (no key, no thumbturn, moving handles)
- Handing: Left Hand (reversible)
- Door Thickness: 1-3/4" (44.5mm)
- Escutcheon Plate Style: A Style - Rounded Top

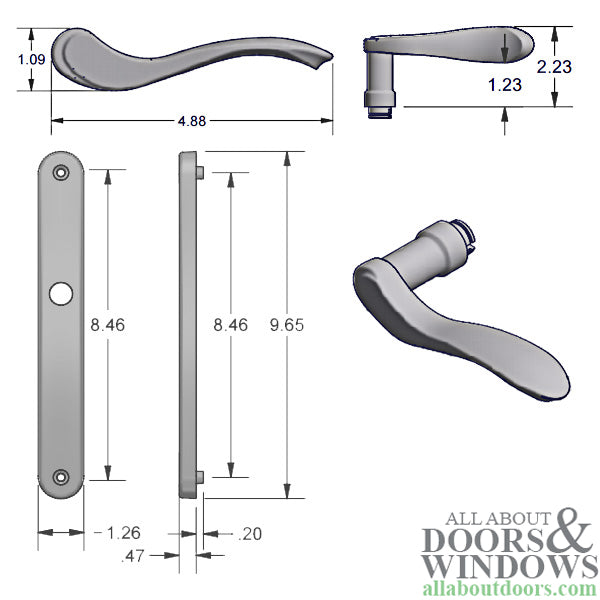

- Plate Width: 1.26" (32.0mm)
- Overall Plate Height: 9.65" (245.1mm)
- Plate Screw Hole Spacing: 8.46" (214.9mm)
- Handle Length: 4.88" (124.0mm)
- Handle Projection: 2.23" (56.6mm)
- Handle Clearance: 1.23" (31.2mm)
- Cylinder Type: None
- Keyway: None
- Handle Retention: C-ring (circlip), no set screw
- Base Material: Zinc (brass substrate PVD finish available for coastal areas)
- Manufacturer SKU: HD401ILH
Notes
- Finish shown: Wet White. Additional finishes available on request: Tan, Dark Oil Rubbed Bronze, Brass, Satin Nickel.

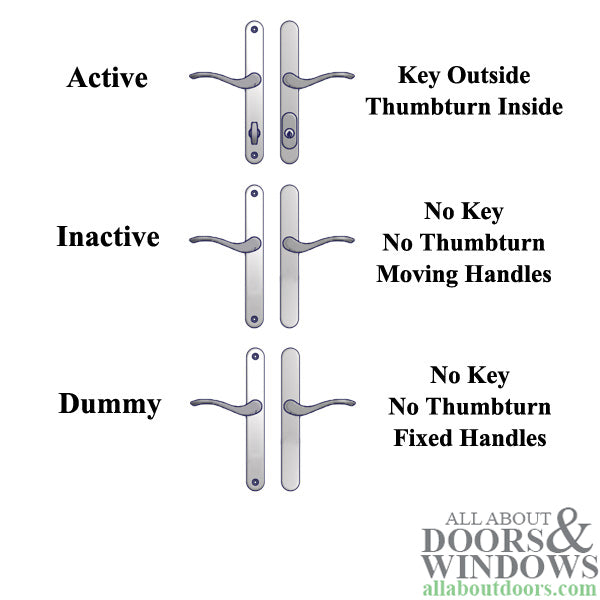

- Other functions available in this series: Active (keyed outside, thumbturn inside) and Dummy (fixed handles, no key or thumbturn).
- Replaces multi-point lock trim on Integrity by Marvin, Milgard, G-U / Ferco, and similar American-version multi-point systems that do not need an inside thumbturn.
Sold as a complete inactive handle set for one passive door. Availability of alternate finishes may be limited to current stock or special order. Please measure your existing escutcheon plate, screw hole spacing, and door thickness carefully to ensure a correct fit before ordering.
