Allure Sliding Patio Door Handle Set, Non-Keyed - 40.85.106

Allure Sliding Patio Door Handle Set - Non-Keyed, Split Finish (White/Black)

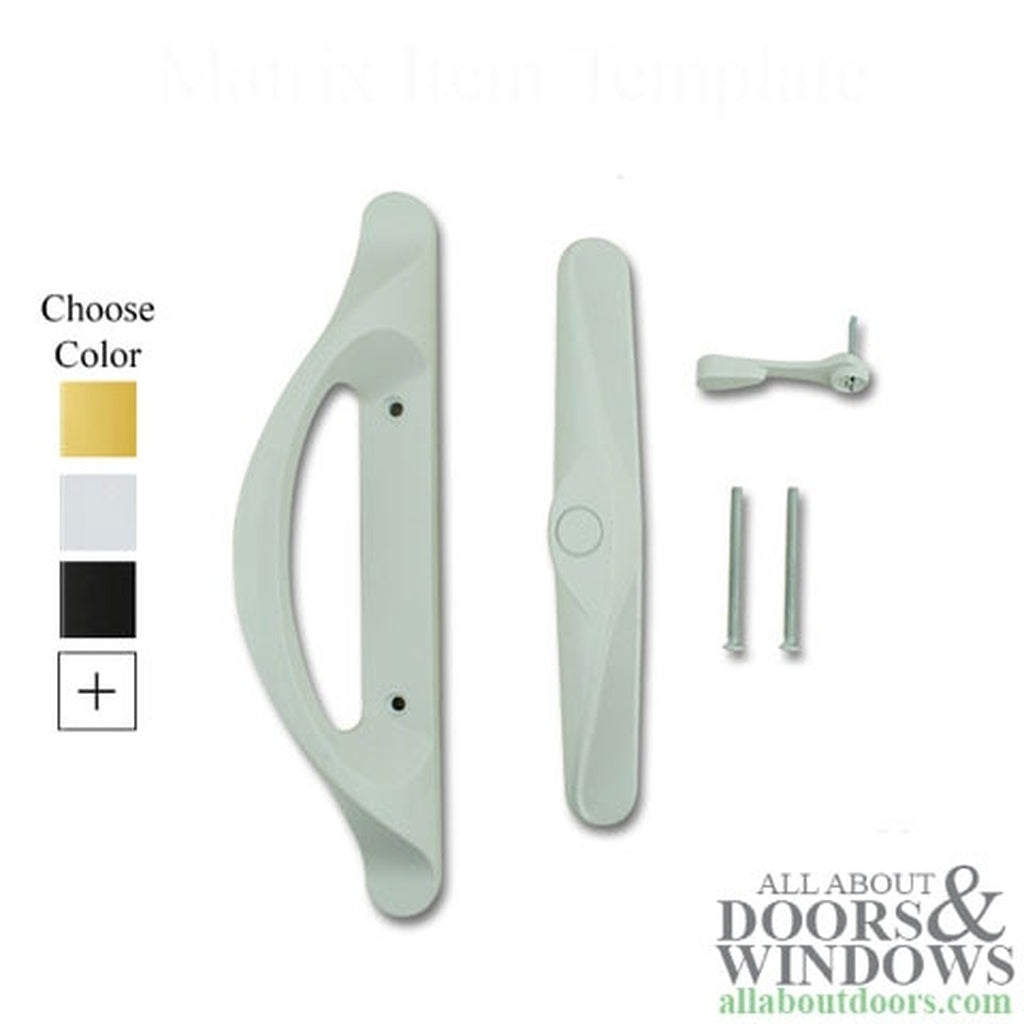

This Allure sliding patio door handle set includes an interior pull, exterior pull, and thumb latch. It ships non-keyed, but the exterior pull has a knock-out plug so you can add a centered key cylinder later (cylinder 13586.00 sold separately).

Weather Shield uses this handle set on their Visions Vinyl Patio Sliding Door. It also fits Silverline, American Craftsman, and other sliding patio glass doors with compatible stile thicknesses.

The low-profile design helps minimize interference with screens, curtains, and blinds. The narrow 1" (25.4mm) escutcheon suits most stile widths, and the extended bosses on both escutcheons add stability across the door.

The thumb latch fits under the handle and works with either an offset or centered thumb turn. The handle is non-handed and works on left- or right-hand doors, and on the inactive panel of OX or XO configurations.

Technical Information

• Original Manufacturer SKU: 40.85.106
• Door Thickness: 1-1/4" to 1-3/4" (31.8mm to 44.5mm); other thicknesses possible with different screws, up to 2-1/4" (57.2mm) per manufacturer

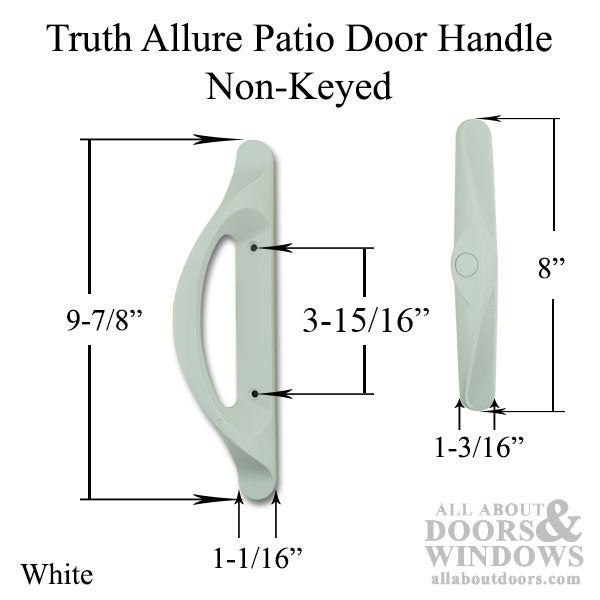

• Screw Hole Spacing: 3-15/16" (100.0mm)
• Escutcheon Plate Thickness: 7/16" (11.1mm)
• Escutcheon Width: 1" (25.4mm)
• Handing: Non-handed, fits left- or right-hand doors
• Color / Finish: Split finish - white interior, black exterior
• Keying: Non-keyed as shipped; convertible to keyed with centered cylinder only

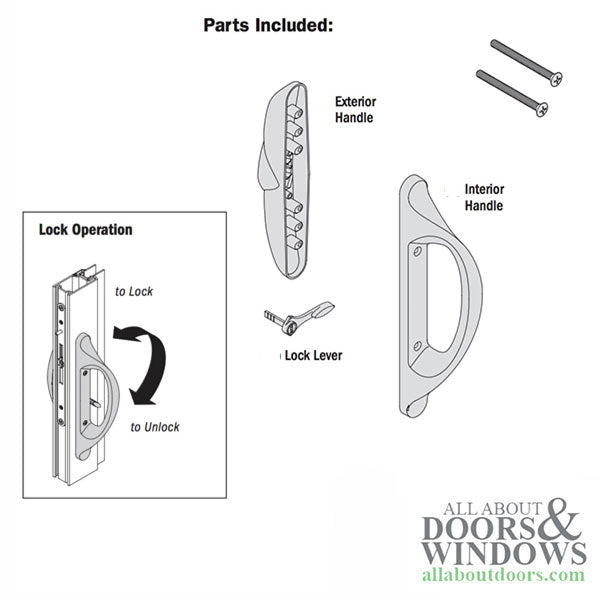

• Includes: Interior pull, exterior pull, thumb latch, and three sets of installation screws (2 - 1-3/4", 2 - 2-1/16", 2 - 2-1/2")

Notes

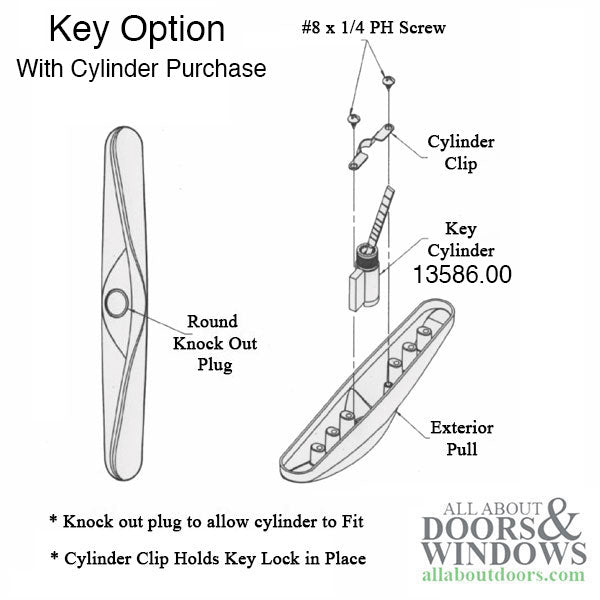

• If you knock out the cylinder plug to add a key lock, only centered key cylinders will work; off-centered key locks are not compatible.
• Compatible key cylinder: 13586.00 (sold separately).
• Works on the inactive panel of OX or XO patio door configurations.
• Used by Weather Shield on Visions Vinyl Patio Sliding Doors; also fits Silverline, American Craftsman, and similar sliding patio glass doors.

Sold as a complete set for one door. Quantities are limited to existing inventory. Please measure your existing hardware, screw hole spacing, and door stile thickness carefully to ensure the correct fit before ordering.
