Active Keyed 13" Inline Handle – Black for Sliding Patio Doors

Active Keyed 13" Inline Handle – Black for Sliding Patio Doors

This active keyed inline handle is designed for modern and contemporary sliding patio doors requiring secure access from the outside and convenient locking from the inside. With a streamlined 13" (330.2mm) escutcheon plate in a matte black painted finish, it is suitable for residential and commercial aluminum, wood, vinyl, or composite sliding doors.

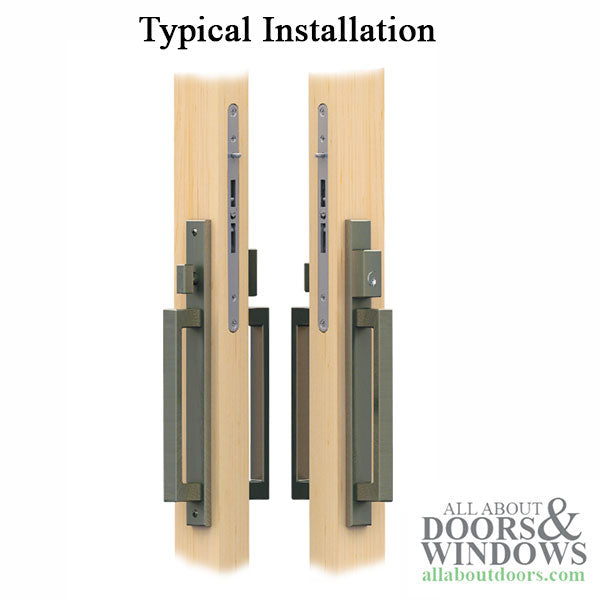

The handle supports single, dual, or 3-point mortise lock mechanisms with hooks, making it compatible with a wide variety of locking systems. Its active function includes an exterior key lock (using a Schlage SC1 5-pin cylinder with two keys included) and an easy-to-use interior thumbturn. The set is intended for doors with stile thickness ranging from 1-1/4" to 2-1/4" (31.8–57.2mm).

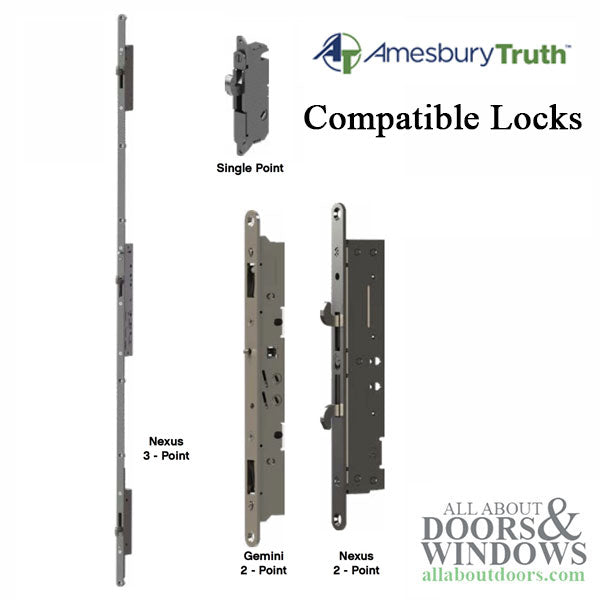

This handle is engineered to work with Truth single point, Gemini or Nexus 2-point, and Nexus 3-point locks for enhanced flexibility and security. Its substrate is brass for plated or PVD finishes, and zinc for painted finishes like the included matte black. Other color finishes may be available by special order, requiring 3–4 weeks for fulfillment.

Technical Information

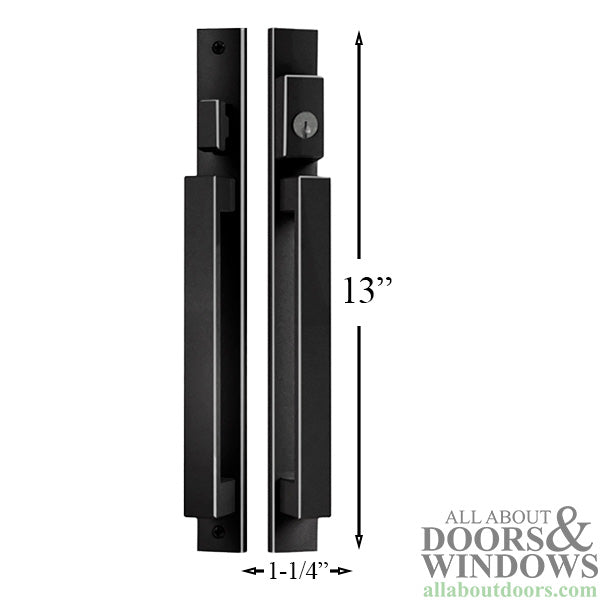

• Escutcheon Plate Length: 13" (330.2mm)
• Escutcheon Plate Width: 1-1/4" (31.8mm)
• Door Stile Thickness Range: 1-1/4" to 2-1/4" (31.8–57.2mm)
• Installation Screw Hole Spacing: 11.92" (302.8mm)
• Center of Thumbturn to Top Screw: 1.97" (50.0mm)
• Material: Brass or zinc substrate

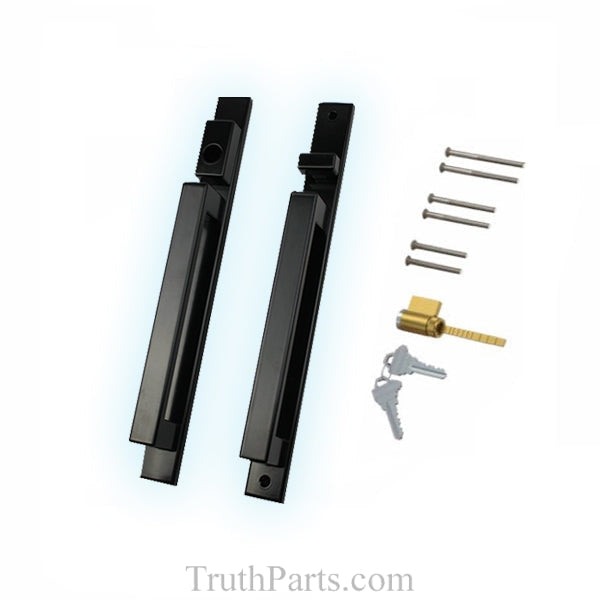

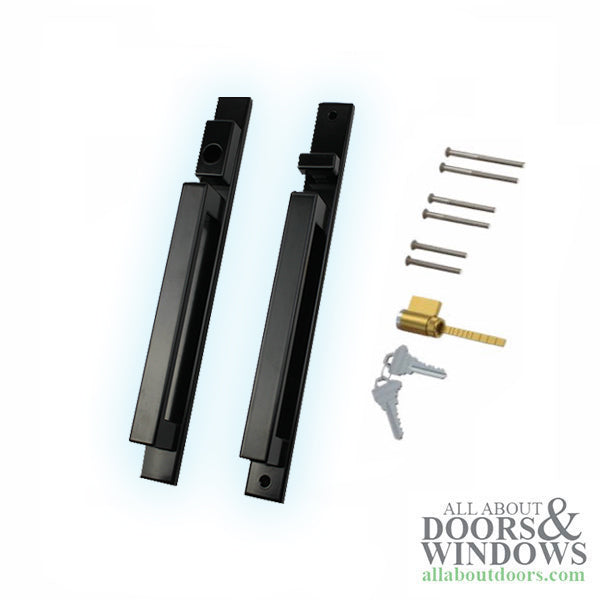

• Key Cylinder: Schlage SC1, 5 pin, 2 keys included
• Mounting Screws: 2 x 8-32 Phillips oval head machine screw (assorted lengths provided)

Notes

• Handle can be installed with key above or below; consult your specific configuration.

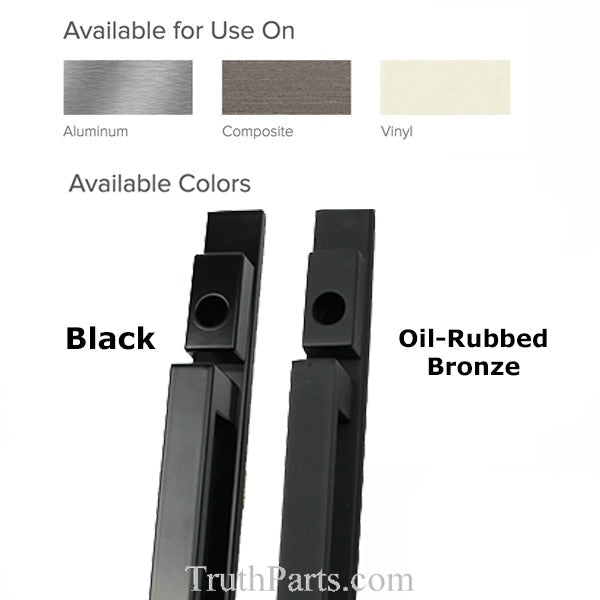

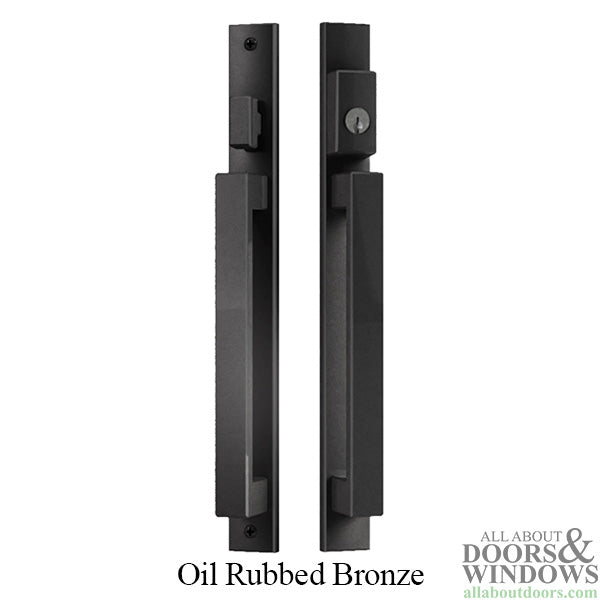

• Available in black; other finishes by special order (lead time 3–4 weeks).
• Compatible functions available: Active Keyed, Semi-Active Non-keyed (with thumbturn), and Inactive Dummy with fixed pulls.

This handle is sold individually. Always measure your existing hardware carefully—especially the screw hole spacing and stile thickness—to ensure proper fit before ordering. Accurate measurement is essential to avoid returns and ensure compatibility.
