Active Keyed Handle Set 800C for Multipoint Locks – Zinc

Active Keyed Handle Set 800C for Multipoint Locks – Zinc Material

The Amesbury® 800C Active Keyed Handle Set is designed for use with multipoint locking systems on primary entry doors. This hardware set is suitable as a replacement for handles found on Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American multipoint lock systems, giving you flexibility when updating or repairing your entrance system.

This model features the Regency series design, with a straight lever and subtly arched escutcheon plate for a clean, modern look. It is not handed, so it works on both left- and right-handed doors. The thumbturn works with most multipoint locks, and the spring-loaded cassette offers improved lever action for dependable performance. Choose from finishes on a durable zinc (or brass with PVD finish for coastal environments) substrate to match your door and protect against the elements.

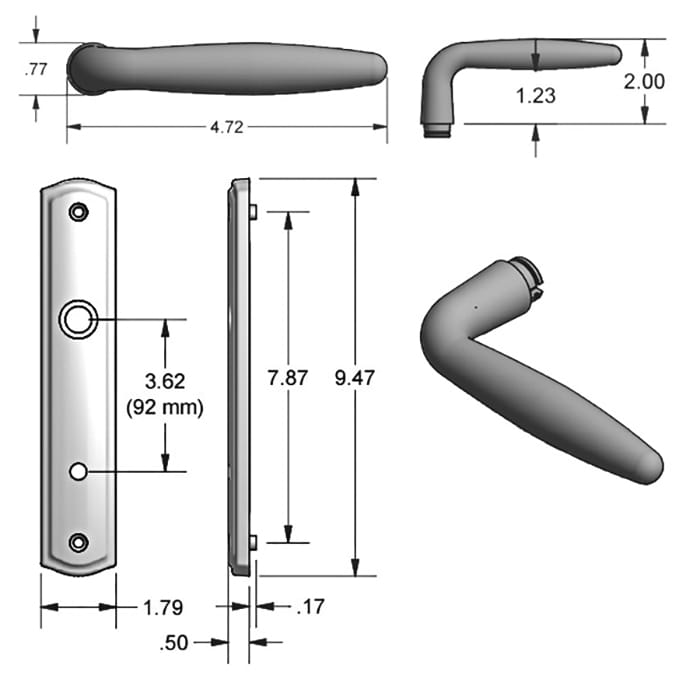

Technical Information

• Material: Zinc (or Brass substrate with PVD finish for coastal use)
• Escutcheon Plate Style: C Style, Slight Arch Top
• Door Thickness: 1-3/4" (44.5mm)
• Actual Plate Width: 1.79" (45.5mm)
• Overall Plate Height: 9.47" (240.5mm)
• Escutcheon Plate Screw Hole Spacing: 7.87" or 7-7/8" (199.9mm)
• Handle to Cylinder Distance: 3.62" or 3-5/8" (92mm)
• Cylinder Type: American with flat tail piece
• Keyway: Schlage 5 pin (SC1 key blank)
• Optional Keyway: Kwikset® – Weiser® composite
• Handle Projection: 1.23" (31.2mm)
• Handle Clearance: 2.00" (50.8mm)
• Handle Length: 4.72" (120mm)

Notes

• Fits active/primary doors with multipoint hardware that utilizes American-style cylinders.
• Not compatible with all European multipoint lock versions. Check measurements and details for compatibility.
• No handing required—works for either door orientation.
• Vendor: Amesbury Truth Hardware

Replaces / Replaced by

• Replaces handles used on Integrity by Marvin®, Milgard®, G-U / Ferco®, and similar multipoint American lock hardware.

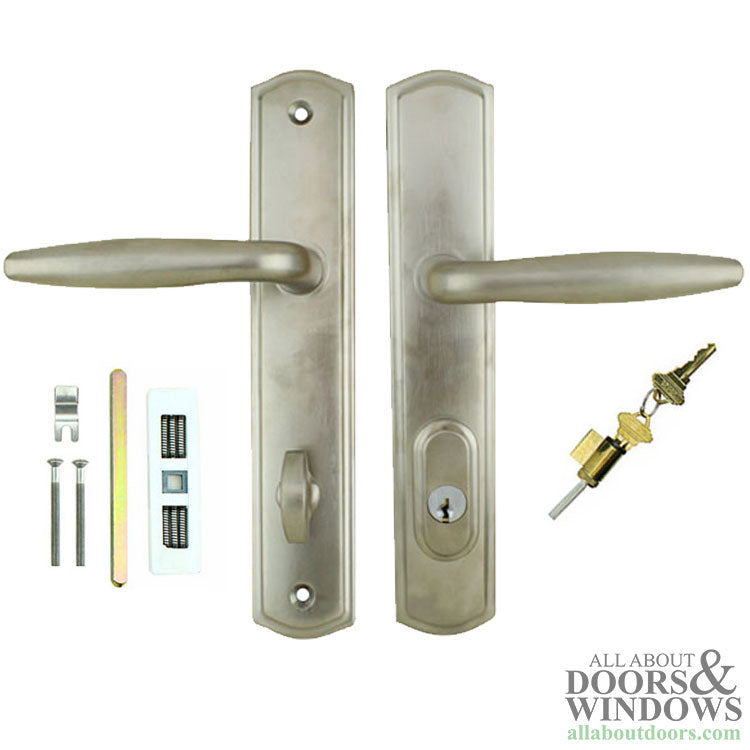

Sold as a complete handle set, including exterior and interior levers and mounting hardware—cylinder/lock not included. Please ensure you accurately measure your existing hardware and compare specifications before ordering to guarantee proper fit.

Always measure your existing handle set and lock configuration carefully before ordering to ensure a correct match.
