Right Hand 400B Cambridge Multipoint Lock Trim – Active Handleset

Active Handleset 400B Right Hand – Cambridge Multipoint Lock Trim

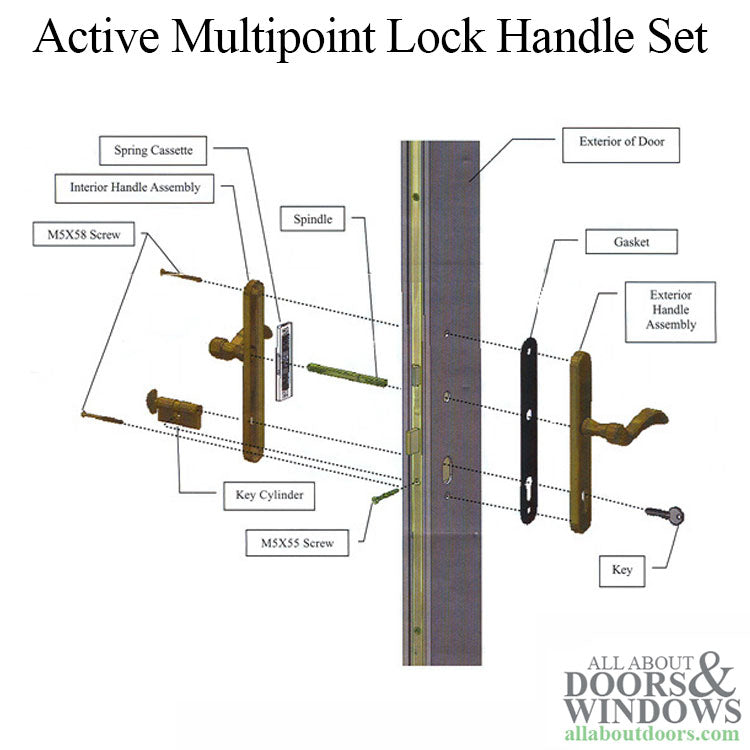

The Amesbury® 400B Series Active Keyed Handleset is designed for the primary active door equipped with a multipoint locking system. This lock trim is a direct replacement for several popular multipoint handlesets, including the Integrity by Marvin Cambridge® series, Milgard®, G-U / Ferco®, and other American-style multipoint locks. It is suitable for exterior doors where secure key access and robust inside locking with a thumb turn are required.

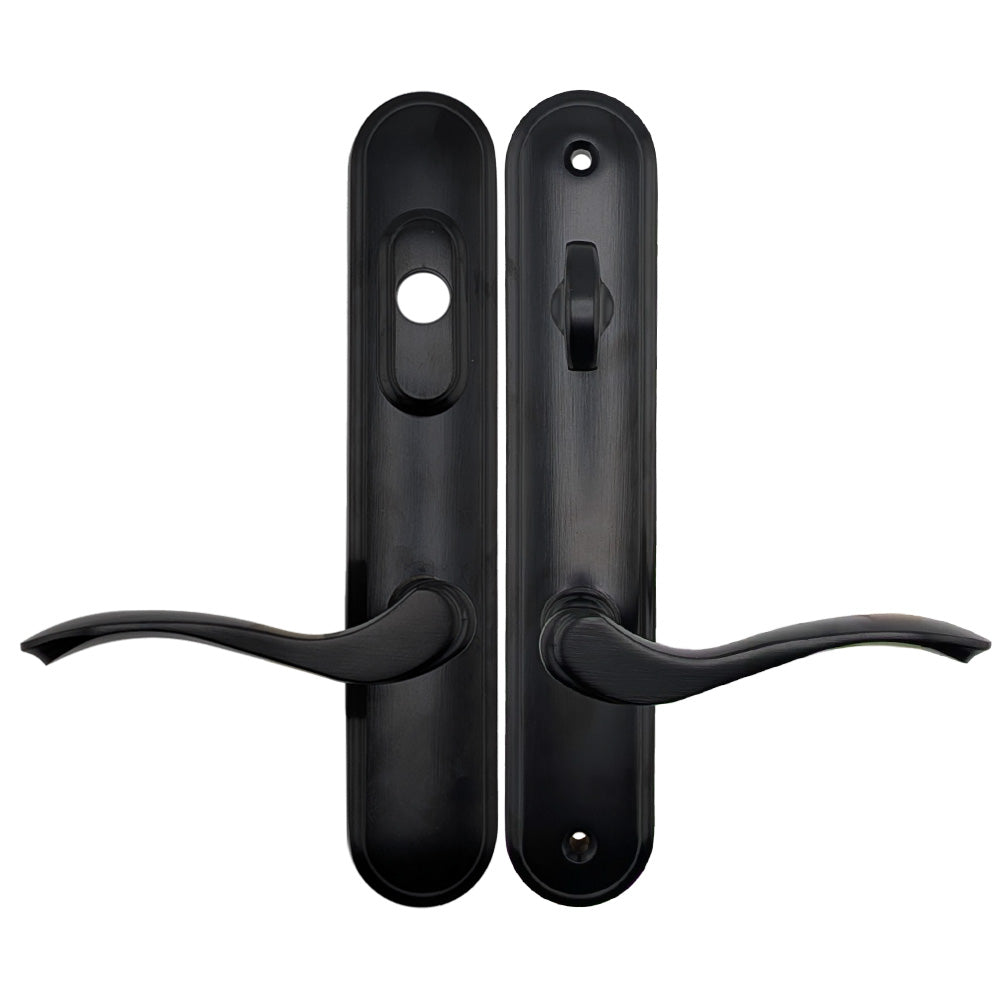

The curved lever design pairs with a rounded, radius-top escutcheon plate, providing an updated look while maintaining compatibility with a broad range of doors. The handleset features a spring-loaded cassette for smoother lever action and comfortable everyday use.

Careful consideration was given to fitment, with a 1-3/4" (44.5mm) door thickness, 1.80" x 9.52" (45.7mm x 242mm) escutcheon plate, and 7.87" (200mm) screw hole spacing. The set utilizes a 5/16" (8mm) square spindle and offers a standard keyed cylinder (Schlage 5 pin, SC1 keyway) with an option for composite Kwikset® or Weiser® keyways. The unit is right-hand oriented, but lever handles can be removed and reattached if necessary. No set screws are used; instead, a snap ring system secures the handles to the escutcheon.

The hardware’s PVD Satin Nickel (US15) and Oil Rubbed Bronze finishes provide durability and style, with a solid brass base material offering superior corrosion resistance for exterior use.

Technical Information

• Door Thickness: 1-3/4" (44.5mm)
• Escutcheon Plate Size: 1.80" x 9.52" (45.7mm x 242mm)
• Escutcheon Plate Screw Hole Spacing: 7.87" (200mm)
• Spindle Diameter: 5/16" (8mm) Square
• Cylinder to Handle Spacing: 3-5/8" (92mm)
• Keyed Cylinder: American 5 pin rekeyable (Schlage SC1 standard, optional Kwikset® - Weiser® composite)
• Installation Screws: M5 x 58mm
• Handing: Right Hand (reversible levers)
• Material: Brass
• Finish Options: PVD Satin Nickel (US15), Oil Rubbed Bronze

Notes

• Works with most American multipoint locks.
• Spring-loaded cassette for improved lever return action.
• No handle set screws; handles retained with snap ring.

Replaces / Replaced by

• Replaces: Integrity by Marvin Cambridge® series, Milgard®, G-U / Ferco®, and many other American version multipoint lock trims.

This handleset is sold individually and is intended for primary active multipoint locking doors. Always measure your existing hardware—including door thickness, plate size, screw spacing, and spindle dimensions—to ensure the correct fit before ordering. Double-check all measurements for compatibility to reduce the chance of returns.
