Right-Hand 400 A Series Multi-Point Door Handle Set – Amesbury Replacement

Active Handle Set 400 A Series Multi-Point Lock Trim - Right Handed

This Amesbury® 400 A Regency series active handle set is engineered for primary right-handed entry doors using a multi-point locking system. Designed as a direct replacement for Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American-made multi-point lock trims, this component helps restore or upgrade the function and security of your entry door without the need for extensive modifications.

The curved lever and rounded top escutcheon plate combine durability with a streamlined look. Intended for keyed entry doors, this handle set features a Schlage 5 pin (SC1 key blank) cylinder, and offers optional compatibility with Kwikset®/Weiser® composite keyways. The spring-loaded cassette inside the trim delivers enhanced lever return and smoother operation. Handing is factory right-hand, but can be reversed as needed. Instead of set screws, a secure C-ring (circlip) holds the lever in place for a straightforward installation and solid feel.

The escutcheon plate is formed in the A Style with a rounded top and measures 1.26" (32.0mm) in width by 9.65" (245.1mm) in height. With screw hole spacing set at 8.46" (215mm), this trim replaces a range of multi-point lock trim models across several brands for American doors. The trim accommodates doors with a standard 1-3/4" (44.5mm) thickness. The handle projects 2.23" (56.6mm), provides a clearance of 1.23" (31.2mm), and measures 4.88" (124mm) in length for comfortable use.

Technical Information

• Handed: Right (reversible)

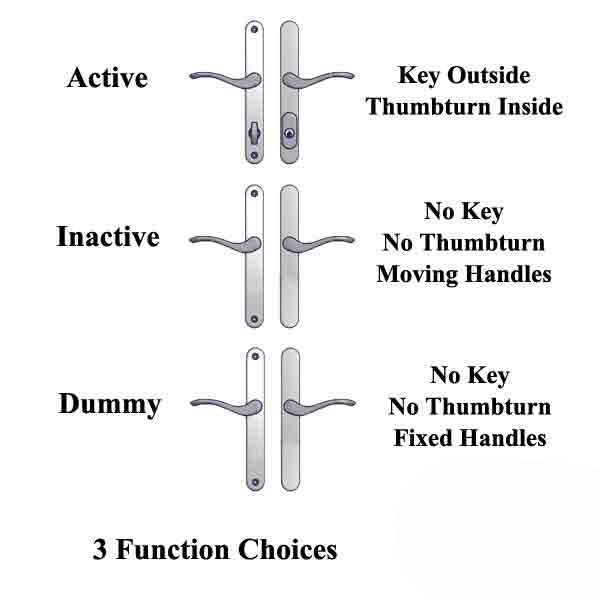

• Application: Keyed multi-point lock trim for active doors
• Escutcheon Plate Type: A Style (rounded top)
• Plate Width: 1.26" (32.0mm)
• Overall Plate Height: 9.65" (245.1mm)
• Plate Screw Hole Spacing: 8.46" (215mm)
• Door Thickness Supported: 1-3/4" (44.5mm)
• Handle to Cylinder (PZ): 3.62" (92mm)
• Keyway: Schlage 5 pin (SC1); optional Kwikset®/Weiser® composite
• Cylinder Type: American with flat tail piece
• Handle Projection: 2.23" (56.6mm)
• Handle Clearance: 1.23" (31.2mm)
• Handle Length: 4.88" (124mm)
• Base Material: Zinc (optional brass substrate PVD finish for coastal environments)

Notes

• Levers are held by a C-ring (circlip), not a set screw.
• Features a spring-loaded cassette for smoother lever action.
• Escutcheon plate has a rounded top and fits "A" style cutouts.

Replaces / Replaced by

• Direct replacement for multi-point lock trim from Integrity by Marvin®, Milgard®, and G-U / Ferco®, as well as other American versions.

This handle set is sold individually. Please verify existing handle measurements and handing to ensure proper fit before ordering. Always measure your existing hardware carefully to ensure compatibility.
