Right Hand Active Handle Set – 100 Series Lever, C Plate

Active Handle Set – 100 Series Lever, C Plate, Right Hand

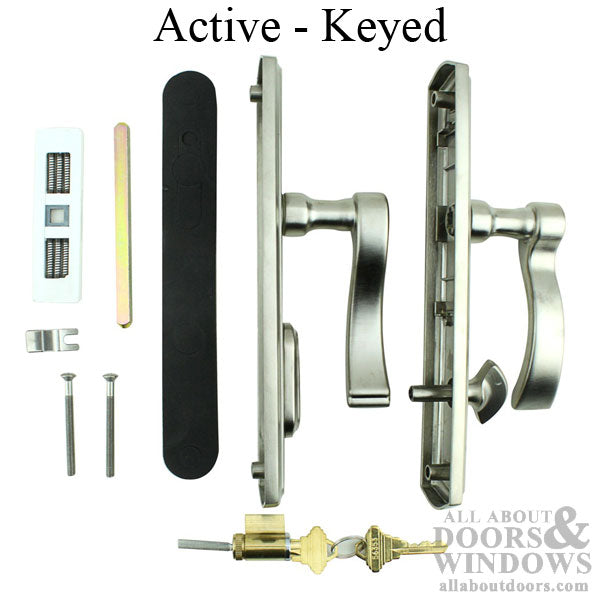

This active keyed handle set is designed as a replacement for 100 Series Regency hardware with an arched C-style escutcheon plate. The trim is compatible with select doors manufactured by Marvin®, Milgard®, and other prominent brands. This handle set is ideal for residential and light commercial doors where right-handed operation is required.

The handle set body is crafted from durable zinc to resist corrosion and everyday wear. For coastal or high-humidity environments, a brass substrate with advanced PVD (Physical Vapor Deposition) finish is available, offering superior resistance to tarnishing and discoloration. Both substrates ensure longevity and low maintenance for demanding applications.

Handedness is right-hand by default, but the handle set allows for field handing changes thanks to the secure C-ring (circlip) lever attachment. The escutcheon features a gently arched design, measuring 1.79" (45.5mm) in width and 9.47" (240.5mm) in height. Screw hole spacing is 7.87' (199.9mm) center-to-center, suitable for many standard cutouts.

Available finishes include satin nickel and oil rubbed bronze (stocked), as well as white, tan, dark oil rubbed bronze, and brass. PVD finishes are also available by special order for enhanced durability. Special order finishes may require a lead time of 2-4 weeks and could be subject to minimum quantities and additional costs.

Technical Information

• Material: Zinc (standard), Brass substrate with PVD finish (coastal option)
• Handing: Right hand (field reversible)
• Escutcheon Plate Style: C style with slight arch
• Plate Width: 1.79" (45.5mm)
• Plate Height: 9.47" (240.5mm)
• Screw Hole Spacing: 7.87' (199.9mm)
• Handle Projection: 2.31" (58.6mm)
• Handle Clearance: 1.34" (34mm)
• Handle Length: 4.58" (116.3mm)
• Handle to Cylinder Distance: 3.62" (92mm)
• Cylinder Type: American, flat tail piece
• Keyway: Schlage 5 pin (SC1 keyblank)
• Standard Finishes: Satin Nickel, Oil Rubbed Bronze
• Special Order Finishes: White, Tan, Dark Oil Rubbed Bronze, Brass, PVD Polished Brass, PVD Satin Nickel, Dark Oil Rubbed Bronze PVD

Notes

• Other finishes available for special order with a 2-4 week lead time; minimum quantities and additional costs may apply.
• Handing can be reversed in the field by adjusting the C-ring attachment.
• Vendor: Amesbury Truth Hardware

Sold individually. Please verify all measurements on your existing hardware before ordering to ensure a correct replacement fit. Accurate measuring is required before purchase to avoid returns or installation issues.
