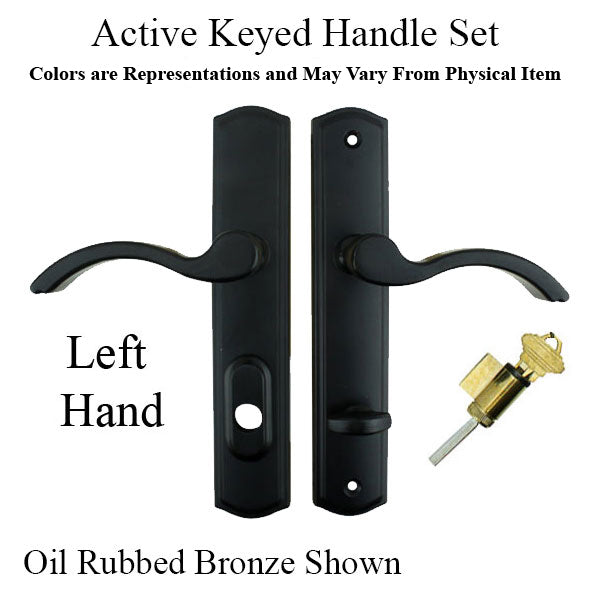

Left Hand 100 Series Multipoint Door Handle Set, C Plate, Keyed

Active Handle Set for 100 Series, Left Handed with Lever and C Plate – Multiple Colors

This is an Amesbury® 100C Regency Series active handle set designed for primary doors equipped with a multipoint lock system. Suitable for keyed operation on doors, it features an interior thumb turn and a left-handed orientation. The handle set replaces Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American multipoint lock trims, making it a direct replacement for various well-known brands.

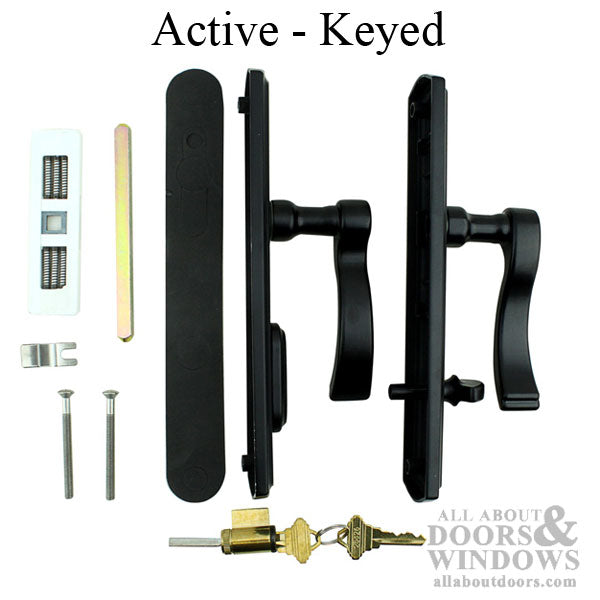

The hardware includes a curved lever and an escutcheon plate with a slight arch at the top for a modern profile. Its robust construction uses zinc as the main material, with the option for a high-performance PVD brass substrate on special order for enhanced resistance against tarnishing and discoloration, especially useful in coastal climates.

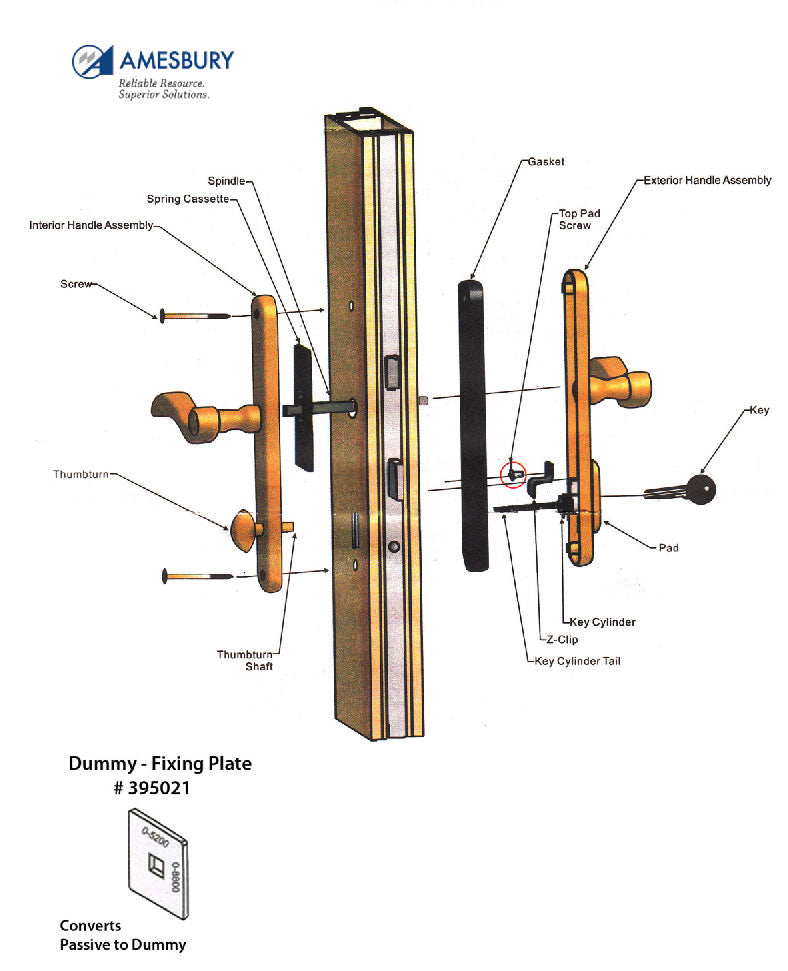

This handle set is specifically left-handed, but the handing can be changed if necessary. Levers are secured to the plates using a C-ring (circlip), making installation and adjustment straightforward. Multiple finish options are available, including satin nickel and oil rubbed bronze in stock, with additional colors and finishes available by special order (subject to longer lead times and minimum quantities).

Technical Information

• Material: Zinc (with special order brass substrate and PVD options)
• Handed: Left Hand (handing can be changed)

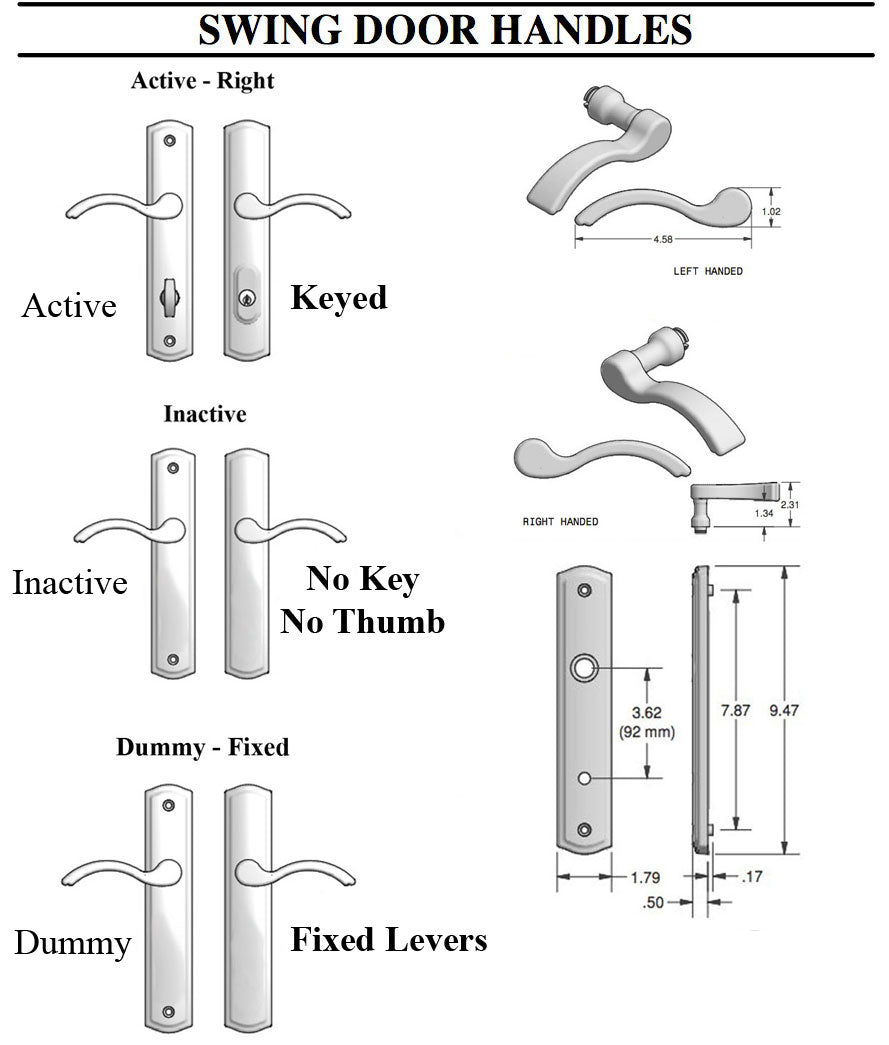

• Escutcheon Plate Width: 1.79" (45.5mm)
• Overall Plate Height: 9.47" (240.5mm)
• Plate Screw Hole Spacing: 7.87" (199.9mm)
• Handle Projection: 2.31" (58.6mm)
• Handle Clearance: 1.34" (34mm)
• Handle Length: 4.58" (116.3mm)
• Handle to Cylinder: 3.62" (92mm)
• Cylinder Type: American with flat tail piece
• Keyway: Schlage 5 pin, SC1 key blank

Notes

• Works with most multipoint lock systems for primary active doors.
• Compatible replacement for brands including Integrity by Marvin®, Milgard®, G-U / Ferco®, and others with similar American-style multipoint hardware.
• Available colors for zinc substrate: White, Tan, Dark Oil Rubbed Bronze, Brass, Satin Nickel.
• Available PVD/brass substrate finishes (special order): Dark Oil Rubbed Bronze PVD, PVD Polished Brass, PVD Satin Nickel.
• Special order finishes require 2-4 weeks and may have minimum quantity requirements.

Handle sets are sold individually. If you are replacing hardware, please verify left/right handing and measure existing hardware carefully, including screw spacing and plate dimensions, to ensure proper fit before ordering. Always confirm all measurements before purchasing to help ensure the correct replacement.
