Active Concealed Rod 60mm Mortise Lock – Square Face for Vinyl Doors

Active Concealed Rod 60mm Mortise Lock – Square Face for Vinyl Doors

This mortise lock body is designed for use in active doors equipped with concealed vertical rods, providing secure multi-point locking functionality. It is commonly found in vinyl patio doors from leading brands like Milgard® and Marvin®, ensuring compatibility with a wide range of modern and replacement applications.

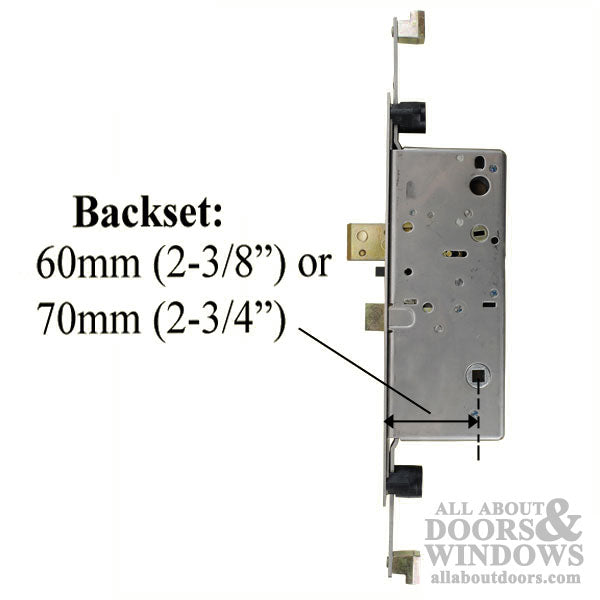

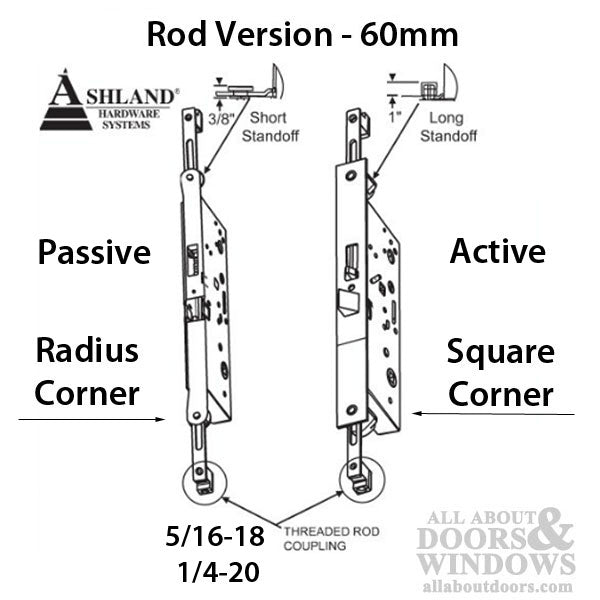

The lock features a robust square-faceplate that is pre-attached for straightforward installation. With a backset of 2-3/8" (60mm), the lock accommodates a variety of door profiles. The faceplate measures 10-3/8" long (263.5mm) and 1-1/16" wide (27.0mm), while a 1" (25.4mm) thick plastic standoff provides reliable spacing and mounting stability. The coupling thread is 1/4-20, and the PZ handle spacing is 3-5/8" (92mm) center-to-center, which suits many standard European-style handles.

Operation is straightforward: lift the handle to extend the rods, then turn the key or thumbturn to engage the deadbolt for full locking action. To change handing, simply reverse the latch bevel using a screwdriver—detailed steps are provided below. This product includes the lock mortise body only and does not include connecting rods or additional accessories.

Technical Information

• Backset: 2-3/8" (60mm)
• Faceplate Length: 10-3/8" (263.5mm)
• Faceplate Width: 1-1/16" (27.0mm)
• Standoff: 1" (25.4mm) thick plastic
• Handle PZ Spacing: 3-5/8" (92mm)
• Coupling Thread: 1/4-20

Notes

• Typical sticker markings on the lock may include numbers like: 3149 611, 0039, or dates such as 09/22/04 09:42.
• Handing can be reversed by inserting a screwdriver behind the latch, pulling down the handing release to pop out the latch, rotating it, and pushing it back into place.
• Always check the function of the lock before closing your door.
• Sold individually – this listing is for the mortise lock body only; rods and other hardware are not included.

Please measure your existing hardware carefully to ensure the correct fit before ordering. Double-check all dimensions and specifications against your current lock to avoid returns.
