Active Concealed Multi-Point Lock 70/92 Radius Faceplate Gearbox

Active Concealed Multi-Point Lock Rod with 70/92 Radius Faceplate

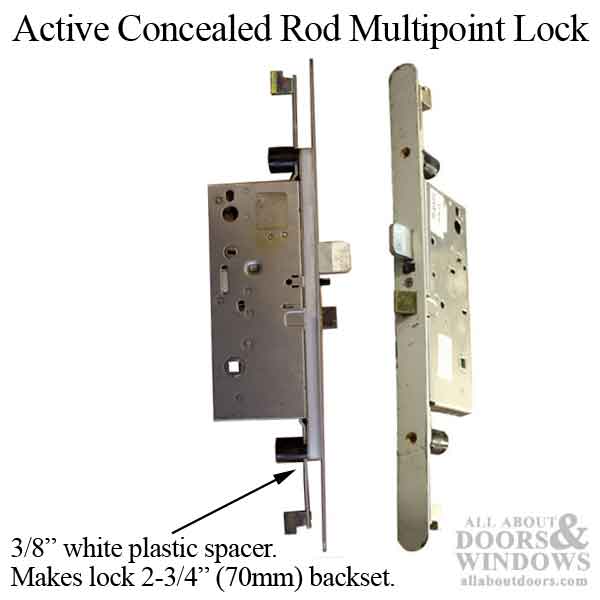

This active multipoint lock features a concealed shootbolt rod mechanism at both the top and bottom of the door panel, providing enhanced security for your door system. The attached faceplate has rounded (radius) ends and is pre-riveted to the lock case for durability. This gearbox is commonly used by several manufacturers, including Peachtree, but is not compatible with Marvin® doors. Please note: this product is the gearbox only and does not include rods.

The concealed rods extend when the door handle is lifted. To fully secure your door, simply turn the key or thumbturn to extend the deadbolt. The lock’s backset measures 2-3/4" (70mm) and includes a factory-riveted 3/8" (9.5mm) spacer. The faceplate measures 1-1/16" (27mm) in width and 15-15/16" (405mm) in length, with a rod connection thread of 1/4-20. The faceplate corners are rounded to accommodate certain door designs. The faceplate may sometimes feature square corners depending on your specific unit.

Stamped With

• Patent NO. 6,209,931

Technical Information

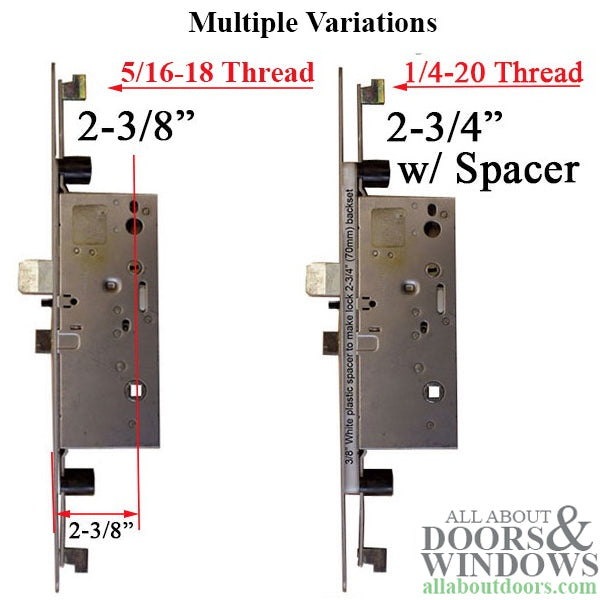

• Backset: 2-3/4" (70mm) with 3/8" (9.5mm) spacer
• Faceplate Width: 1-1/16" (27mm)
• Faceplate Length: 15-15/16" (405mm)
• Rod Connection Thread: 1/4-20
• Faceplate Corners: Radius (may also exist with square corners)

Notes

• Does not fit Marvin® doors.

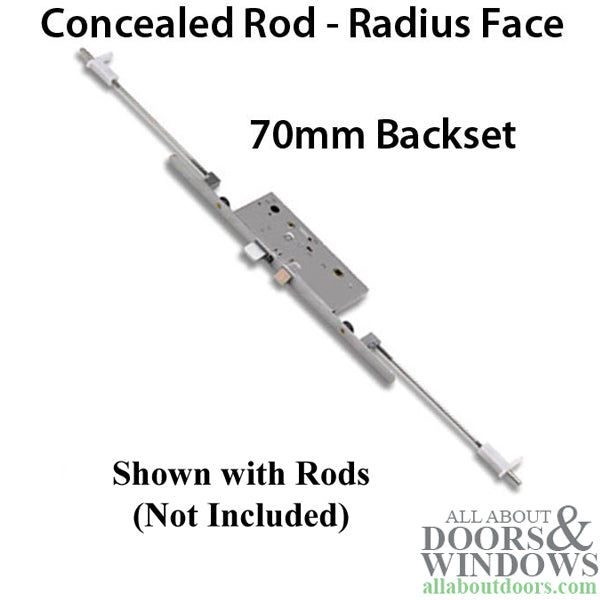

• This listing is for the gearbox only; rods are not included.
• Faceplate is riveted to the lock case.
• Always check function of lock before closing the door.

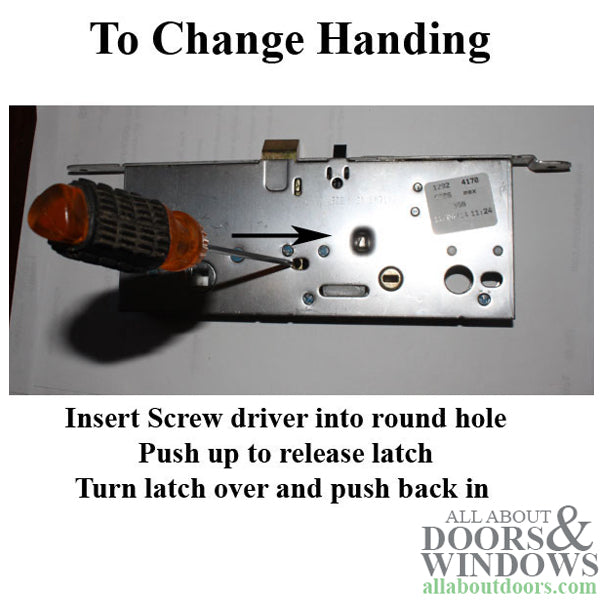

• To change handing: insert screwdriver into slot behind latch, pull down on release, rotate latch, and push back in.

Please confirm all measurements and existing hardware details before ordering to ensure the correct fit for your door system. Measuring your existing hardware carefully is recommended to ensure compatibility before ordering.
