Active Concealed Multi-Point Lock Gearbox 60/92 No Faceplate
- Regular price
- $169.00
- Regular price
-
- Sale price
- $169.00
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 4991632

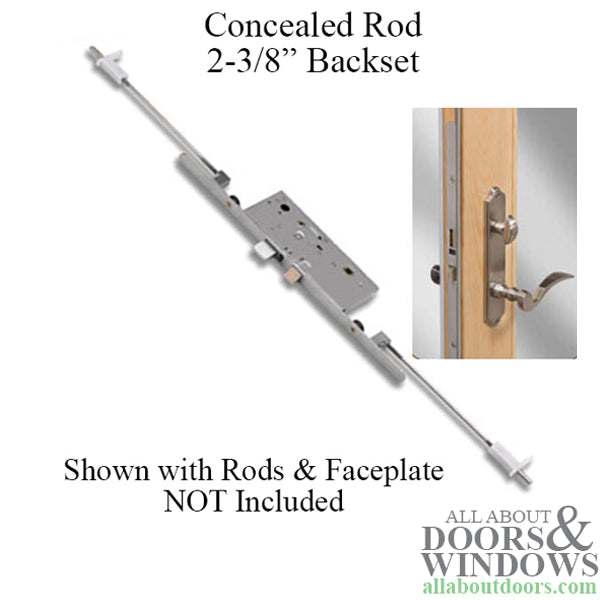

Active concealed multi-point lock gearbox for doors, compatible with Caradco® and Jeldwen® systems (not Marvin®). Features a 2-3/8" (60mm) backset and is marked with Patent No. 6,209,931. No faceplate or rods included; operates with top and bottom shootbolt rods for secure locking.
Couldn't load pickup availability
Active Concealed Multi-Point Lock Gearbox, 60/92 Backset, No Faceplate
This active concealed multi-point lock gearbox is designed for use with door panels requiring top and bottom shootbolt operation for secure locking. Compatible with several door systems by Caradco®, Jeldwen®, and other manufacturers, it is ideal for customers seeking a direct replacement for existing multipoint lock mechanisms that require concealed rods and no faceplate.

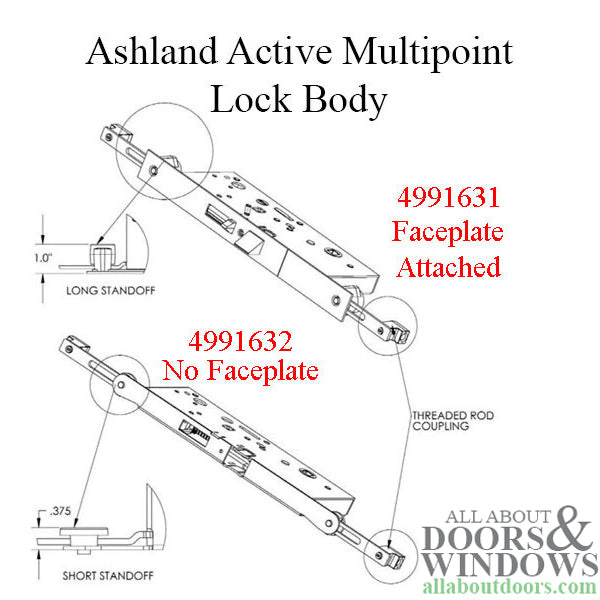

The unit features a 2-3/8" (60mm) backset and a short standoff with a 3/8" (9.5mm) thick plastic component. The coupling thread is 1/4-20, and the gearbox is specifically designed without a front faceplate. Operation is straightforward: lift the handle to extend the shootbolt rods, then turn the key or thumbturn to engage the deadbolt. This gearbox is appropriate for installations where the faceplate is already part of the door assembly or a custom faceplate is required. Please note this gearbox does not include the locking rods; it is intended as a replacement for the gear mechanism only. The lock handing can be changed easily using a screwdriver, and doing so before final installation is recommended to ensure proper function.
Technical Information
- Backset: 2-3/8" (60mm)
- Standoff: Short, 3/8" (9.5mm) thick plastic
- Coupling Thread: 1/4-20
- Faceplate Attached: No
- Original Manufacturer: Amesbury Truth Hardware
- Patent: 6,209,931
Notes
- Does not fit Marvin® doors.
- This item includes only the lock gearbox; rods and faceplates are not included.
- The faceplate is riveted to the lock case in versions that use one, but this version is provided without a faceplate.
- Faceplates for similar locks can have either square or radius corners (not included here).
This part is sold individually. Please be sure to measure your existing hardware precisely and review all specifications before ordering to ensure correct fit. Measuring your existing hardware accurately is essential to confirm compatibility before purchase.
