3-5/8 x 4 Adjustable Hinge, All in one (V-H) NRP Door, Steel Base - Choose Color

Regular price
$16.02
Regular price
Sale price
$16.02
No reviews

Vendor : Amesbury Truth Hardware

Product Type : Hardware

Sku : HG210-S-NRP-01

Adjustable Hinge, Non-Removable Pin for Outswing or Inswing doors
Hinge used by Integrity by Marvin, Jeldwen and others

Adjustment: All in one, Hinge contains both Vertical and Horizontal adjustment
Application: Wood, Vinyl, Metal and Fiberglass doors
Handed: No, fits left or right hand doors
Mortise Height: 3-5/8Inch
Overall Height: 4Inch
Width: 4 inch
Corners: 5/8Inch Radius
Hinge Type: NRP, Non-Removable Pin
Material: Steel Base, Also Available in Brass Base for Coastal Areas

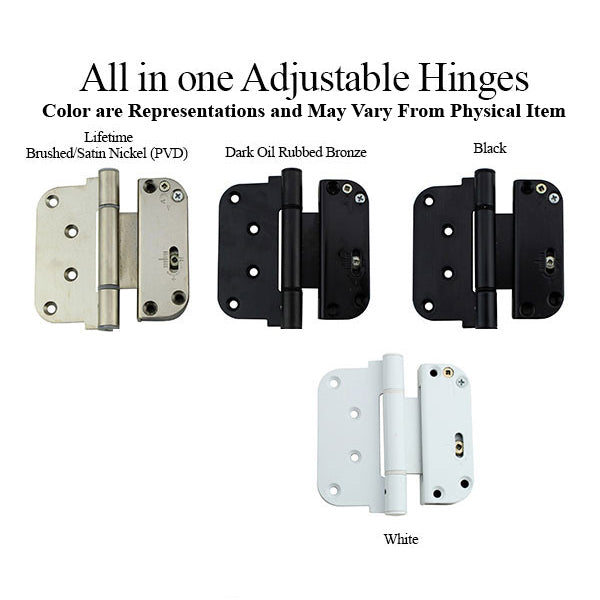

Available Finishes:
Black- Backordered, Current ETA August 2023
White
Dark Oil Rubbed Bronze
Lifetime Brushed/Satin Nickel (PVD)
Polished Brass

Hinge fits a 3-5/8Inch mortise in the door panel and Jamb.
Will replace other hinges with same mortise prep.

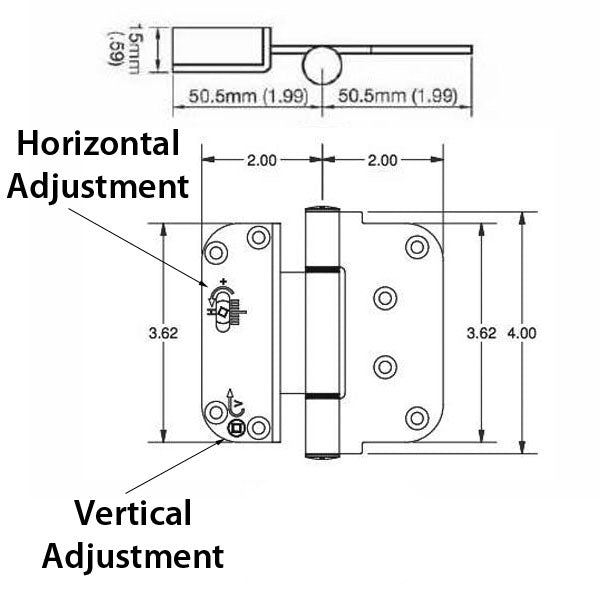

ADJUSTMENT INFO:
Horizontal and vertical adjustment on this hinge means that it adjusts to change the reveal (gap between the door frame and the edge of the door). The horizontal adjustment range is plus or minus 0.15 inch (+/- 0.15Inch). The vertical adjustment range is plus or minus 0.20 inch (+/- 0.20Inch). There are markings on the hinge cover for a visual indication of the vertical adjustment position.



Vertical Adjustment (V):

Use a pry bar to reduce the downward weight of door panel, then adjust each hinge.

Turn drive to raise or lower the door panel. Adjust each hinge 1/16Inch at a time until desired panel adjustment is achieved. Spread the door weight evenly between all 3 or 4 hinges.



Horizontal Adjustment (H):

Turn drive to increase of decrease the reveal of the door.


Priced and sold each.
Hurry! Only
0
units left in stock!

QUESTIONS & ANSWERS

Ask a Question
  • Does this come with screws back color?

    This item does not come with any installation screws.
