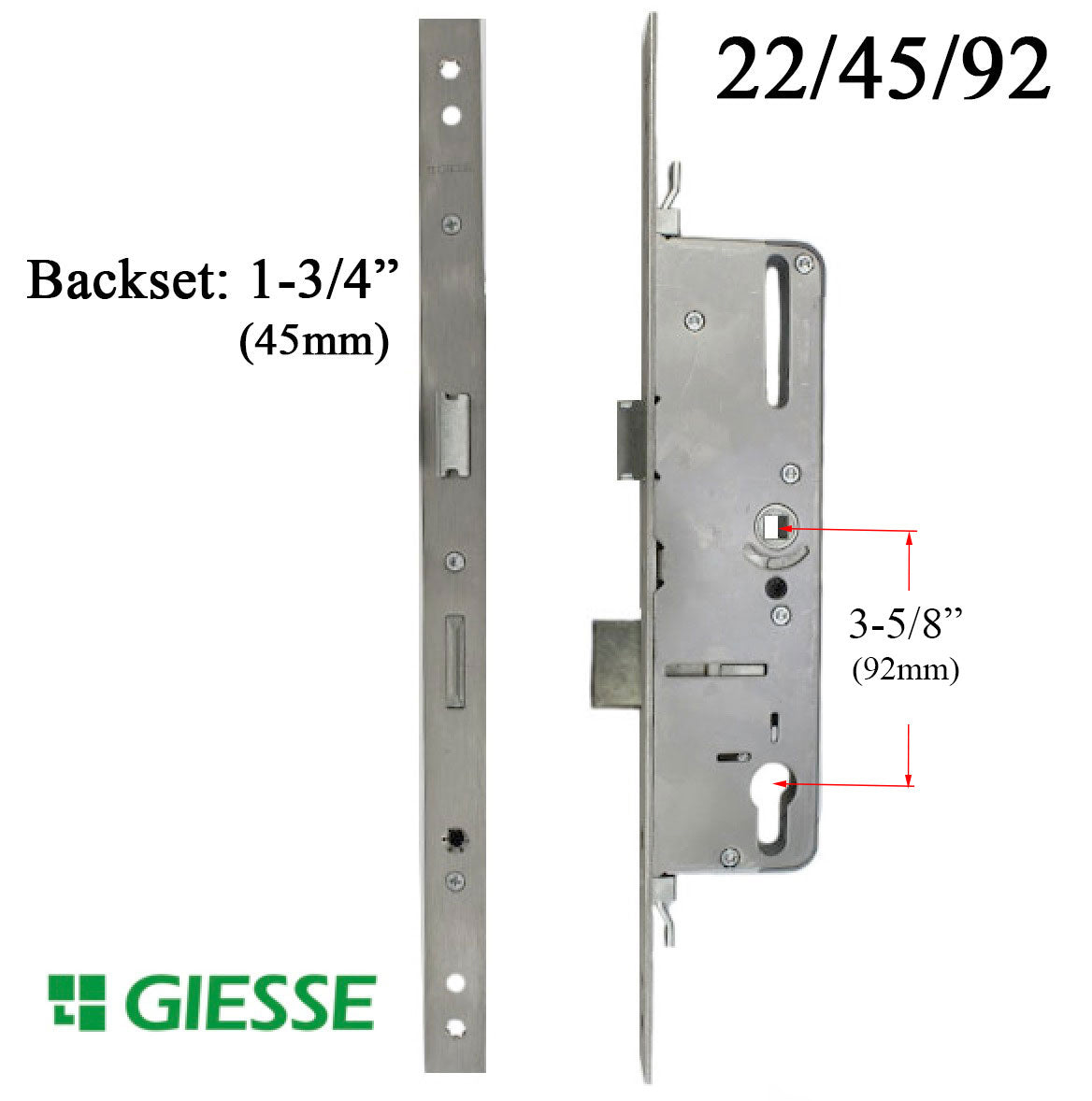

22mm Giesse® 45/92 Lock Mechanism with Deadbolt

Giesse® INOX Mortise lock case for Multipoint Lock used on Terrace or Balcony doors.

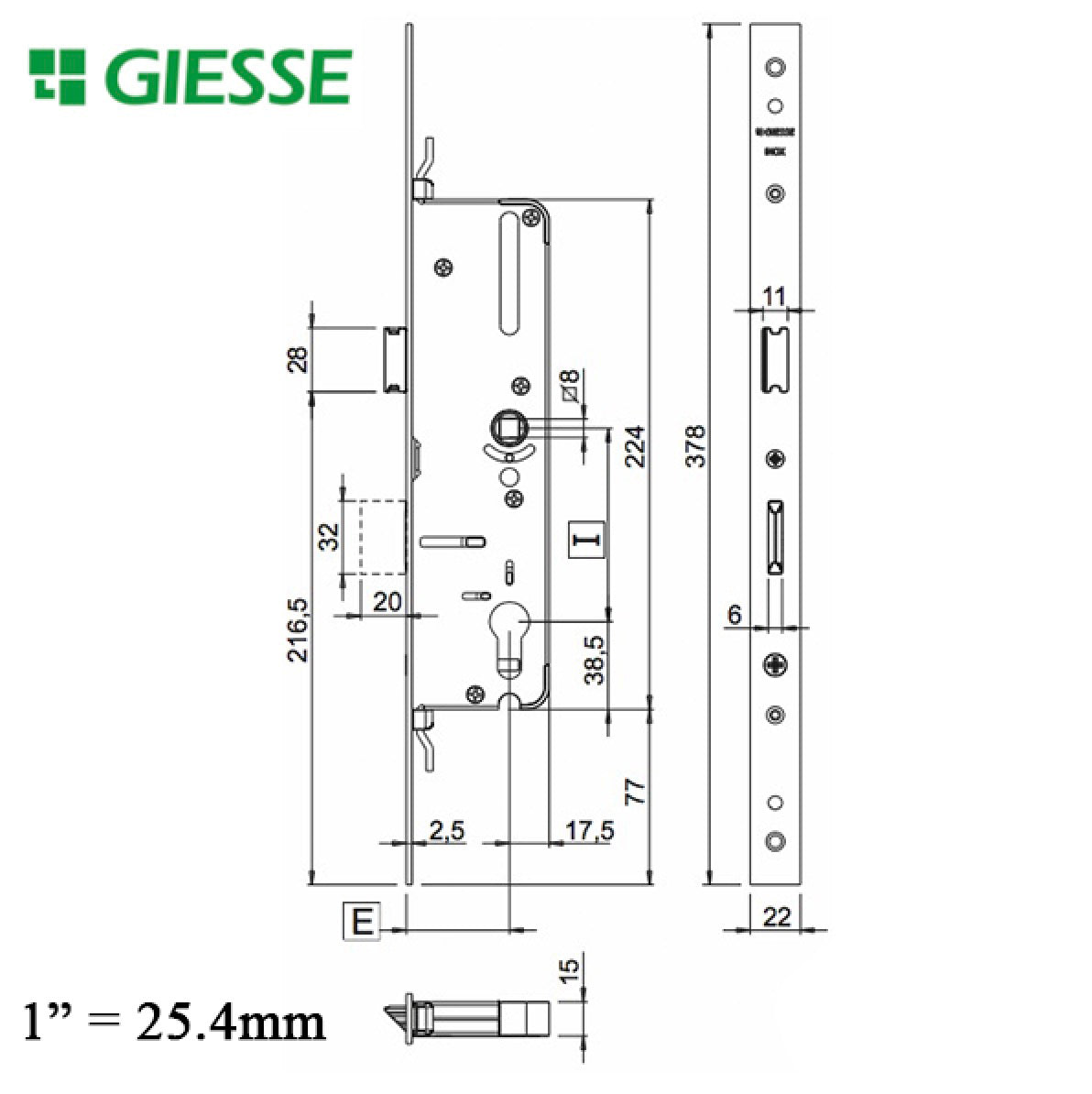

Faceplate Width:7/8 in.(22mm)
Faceplate Length: 14-7/8 in. ( 378mm)
Backset:1-3/4 in. (45mm)
Deadbolt Projection: 3/4 in. (20mm)
Handle to Cylinder PZ: 3-5/8 in. (92mm)
Spindle Hub Diameter: 5/16 in. (8mm)
Lock Operation:
Lift handle to Extend deadbolt and additional locking devices.
Use key or thumb turn to secure in locked position.
To Change Handing:
1. Pushin Spring latch, Unlocked Position
2. Insert screw d(more...)
