20mm P2000 Active 60/92 SPL Mortise Lock Body – American

20mm P2000 Active 60/92 SPL Mortise Lock Body – American Version

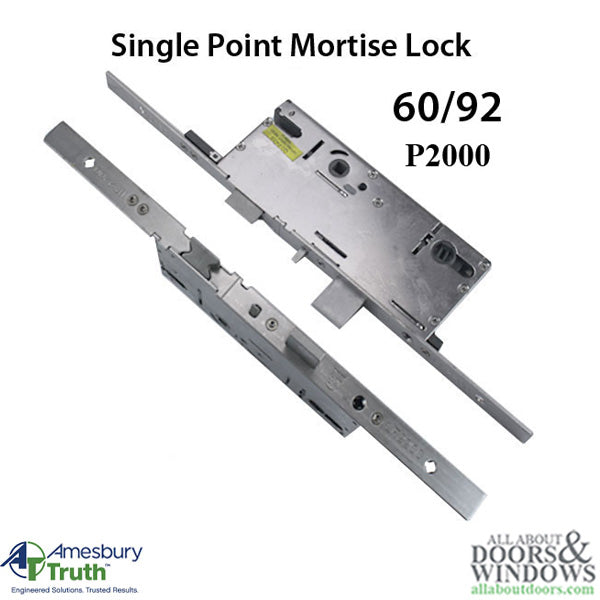

This P2000 Active Single Point Lock (SPL) mortise lock case is designed for entry doors that require secure locking without multipoint features. It includes both a deadbolt and a spring latch but is not a multipoint (MPL) lock. If you are looking to replace the active gear box on an Amesbury Truth Hardware multipoint lock with the same size and configuration, this lock case is a direct fit replacement.

The lock body is engineered specifically for doors originally equipped with an SPL system. Its 20mm width and 60/92 gearbox configuration match the original Amesbury Truth system, ensuring smooth installation and reliable performance. This lock is suitable for residential or commercial doors that use American-style mortise locks.

Technical Information

• Vendor: Amesbury Truth Hardware

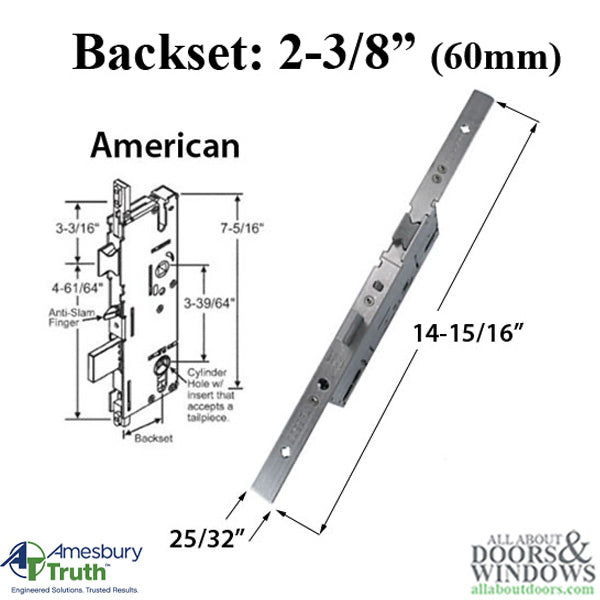

• Lock Faceplate Width: 20mm (0.8")
• Gearbox: 60/92

Notes

• This lock is a single point system with deadbolt and spring latch only – not intended for multipoint locking applications.
• To reverse the latch handing, extend the deadbolt, pull the spring latch out, rotate to the required position, and verify lock function before closing the door.

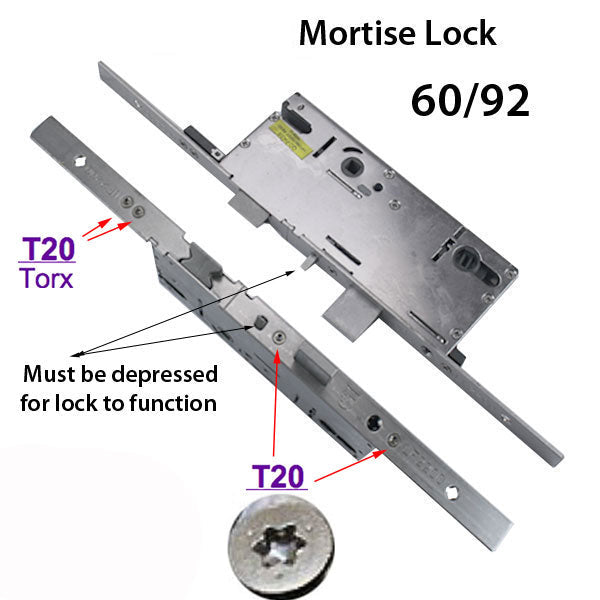

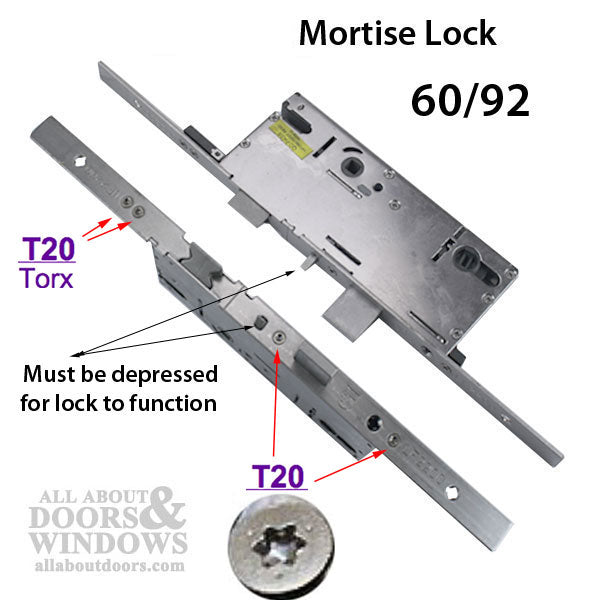

• For installation, T-20 Torx star bit screws are required and should be tightened with 12-13 pounds of torque.

Make sure to measure your existing hardware carefully to ensure correct fit before ordering. Proper measurement helps avoid returns and ensures you receive the right replacement part.
