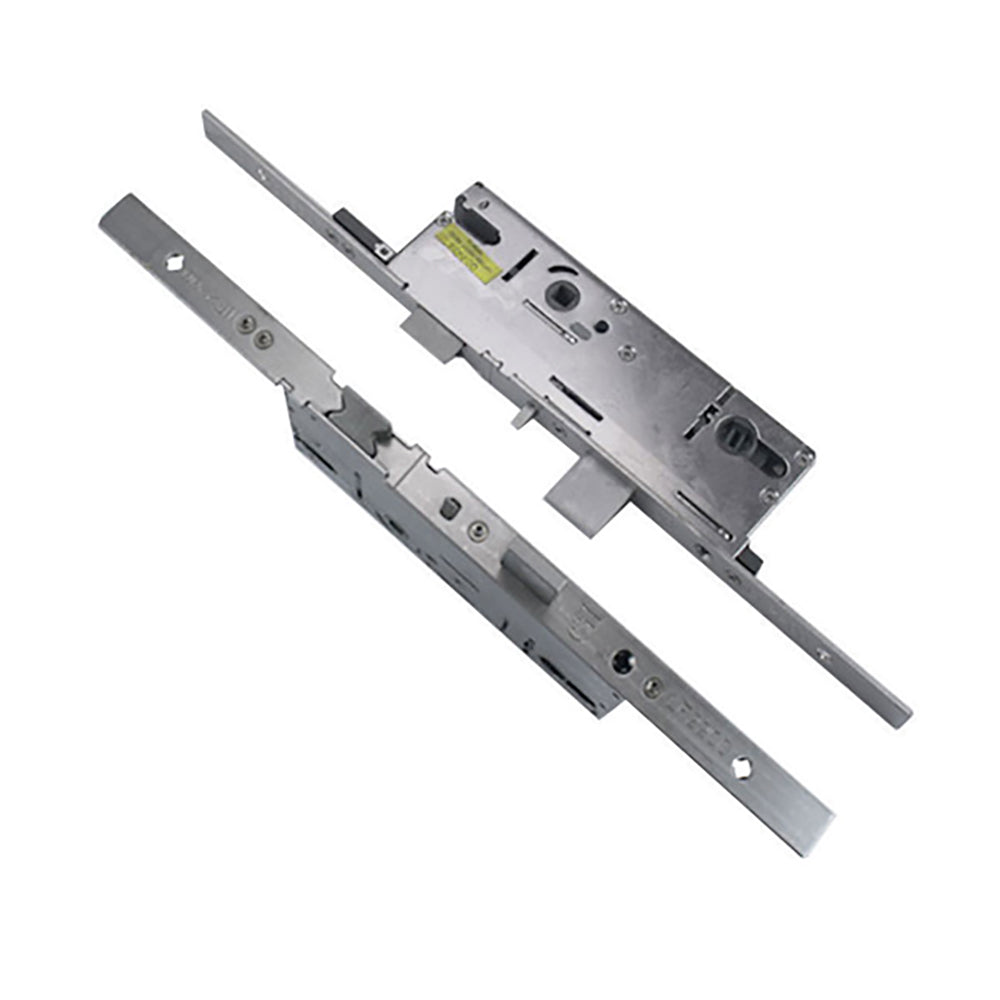

20mm P2000 Active 45/92 SPL Mortise Lock Body – American Version

20mm P2000 Active 45/92 SPL Mortise Lock Body – American Version

This P2000 Active single point lock (SPL) mortise lock body is designed for use in doors that require a secure and reliable locking mechanism. Featuring a deadbolt and a spring latch, this case is specifically for single point operation – not for use with multipoint lock (MPL) systems. Its construction and dimensions make it a direct replacement for the active gear box on compatible Amesbury® MPL door systems with matching measurements and configurations.

The mortise lock body is suitable for residential or commercial doors where an exact fit and dependable operation are necessary. The locking mechanism ensures straightforward installation and reliable performance. Please verify if your current lock case or gear box matches the size and configuration of this model for hassle-free replacement.

Technical Information

• Faceplate Width: 20mm (0.79")

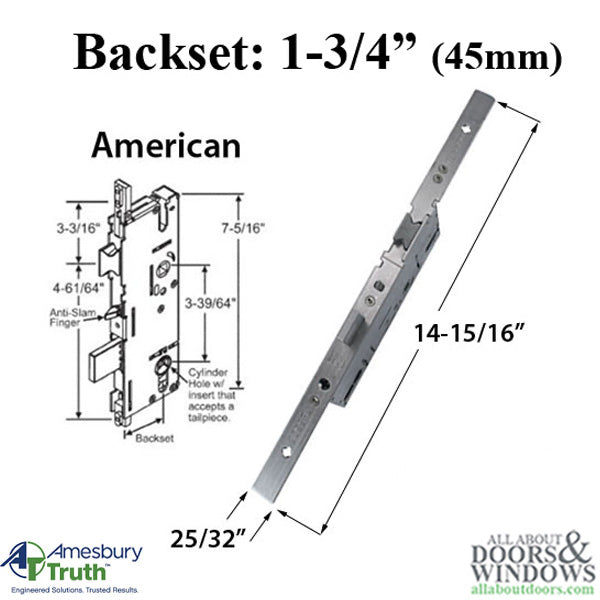

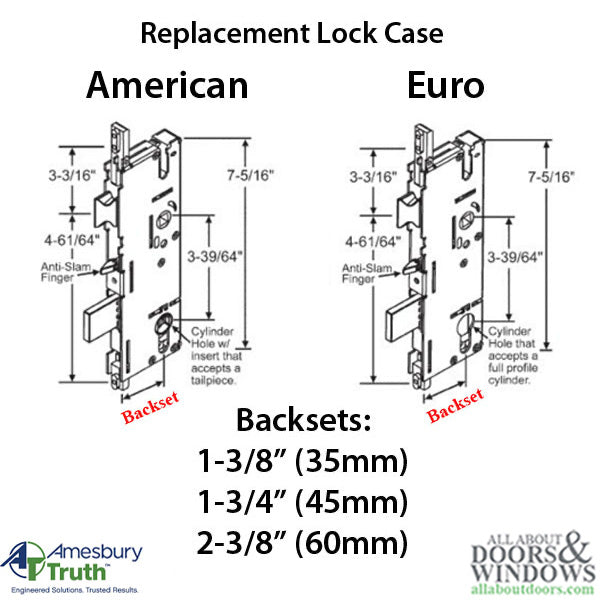

• Backset: 45mm (1-3/4")
• Centers (PZ): 92mm (3.6")
• Lock Type: Single Point Lock (SPL) – includes deadbolt and spring latch only
• Original Manufacturer: Amesbury Truth Hardware

Notes

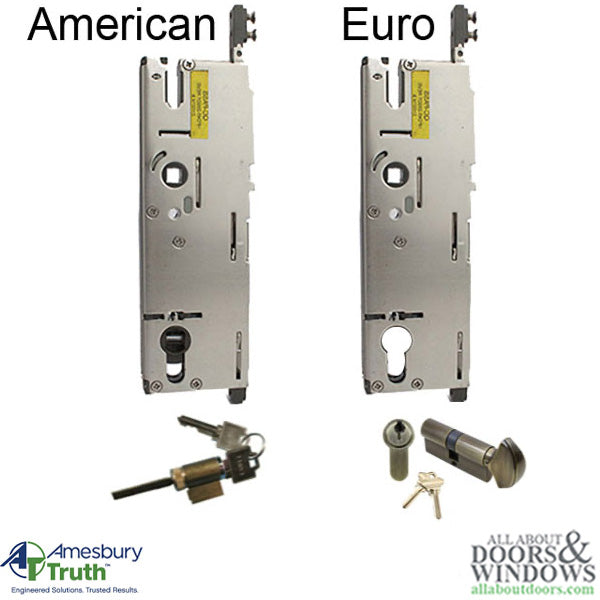

• This is the American version of the P2000 mortise lock body.
• To change handing/latch reversal:
  • Extend the deadbolt and pull spring latch out.
  • Rotate the latch to the correct position.
  • Check lock function before closing the door.

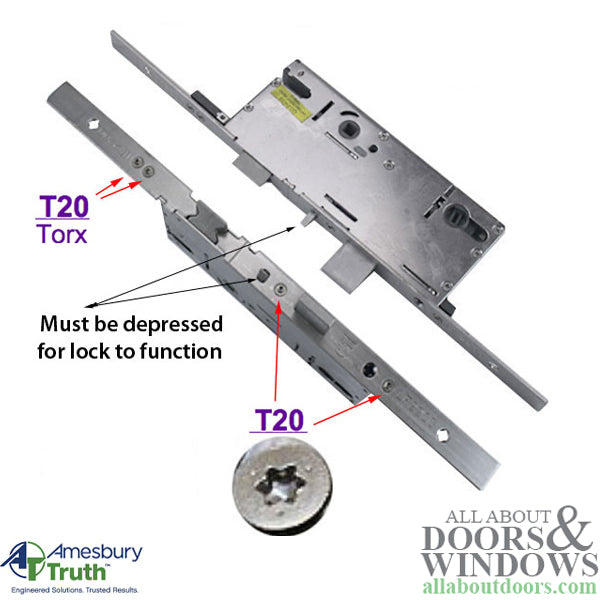

• Requires T-20 torx Star bit screws with 12-13 pounds of torque for installation.

Sold individually. Always measure your existing lock case and review your door’s configuration carefully to ensure correct fit before ordering. Double-check all measurements to avoid unnecessary returns.
